Symptom Chart

NOTE:

Always check keyfob battery before replacing keyfob.
The panic alarm operation and trunk lid opener operation of keyfob system do not activate with the ignition key inserted in the ignition key cylinder.

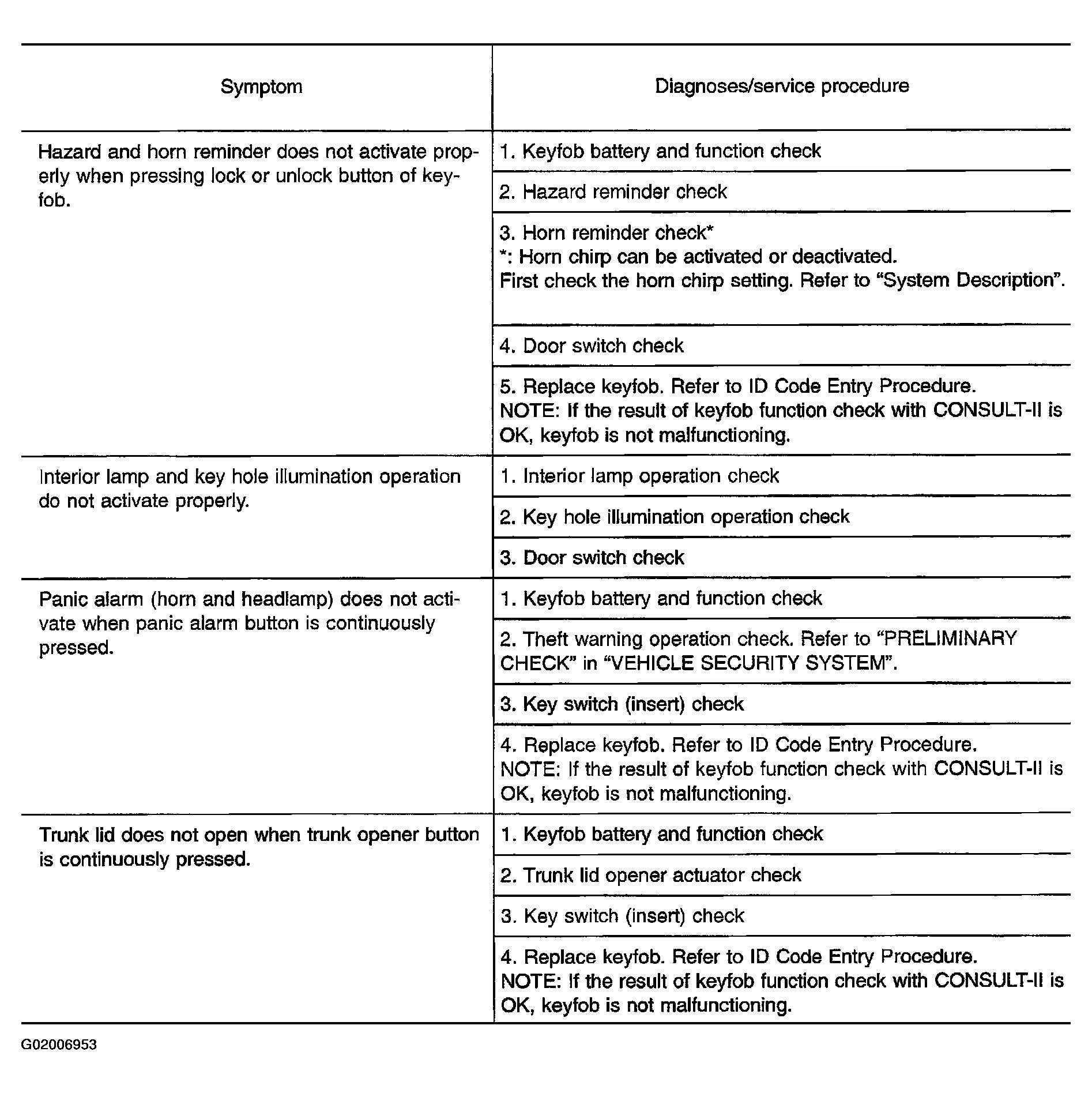

Fig 1: Trouble Symptom Diagnosis (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

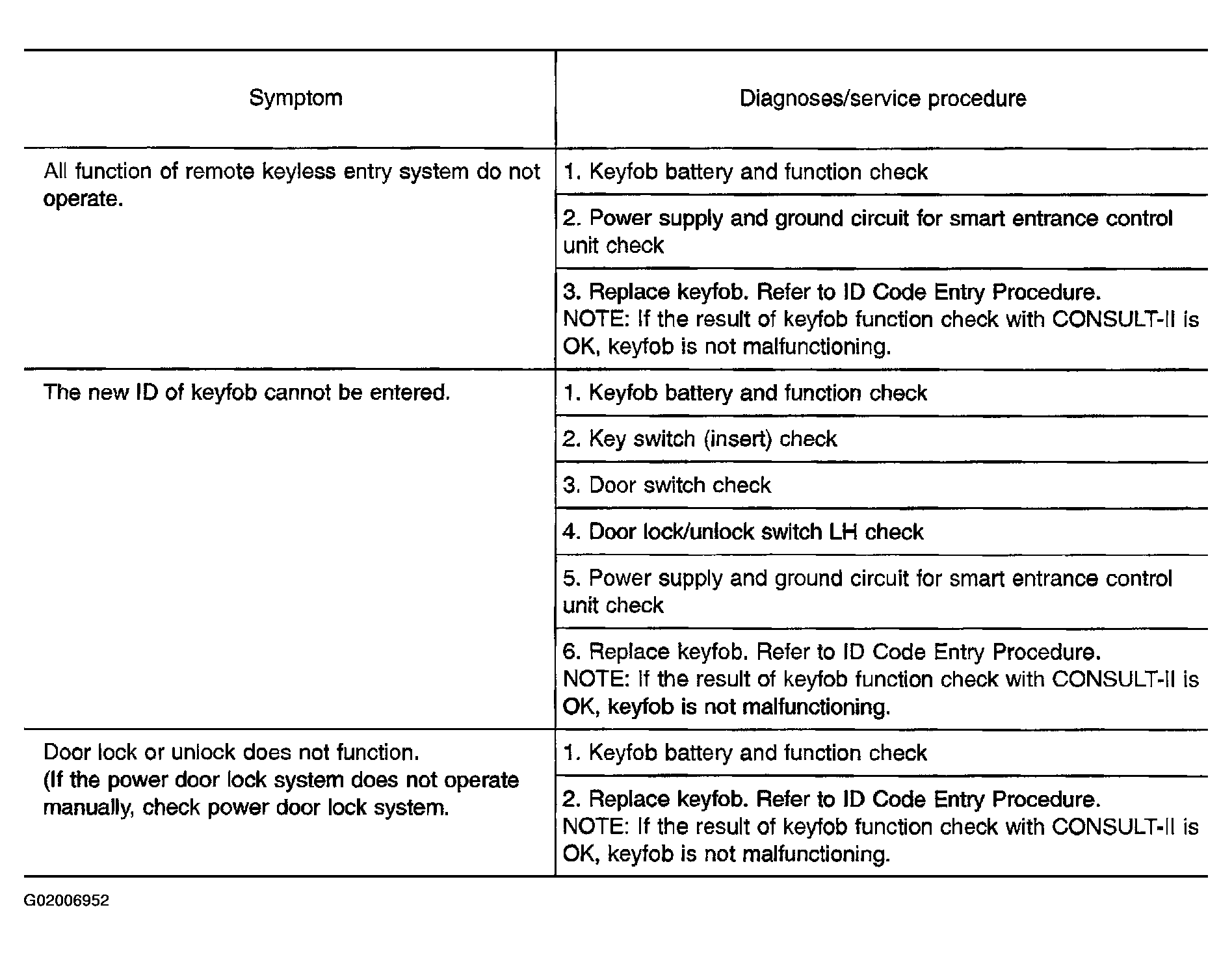

Fig 2: Trouble Symptom Diagnosis (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
