Measurement Points
Measurement Points

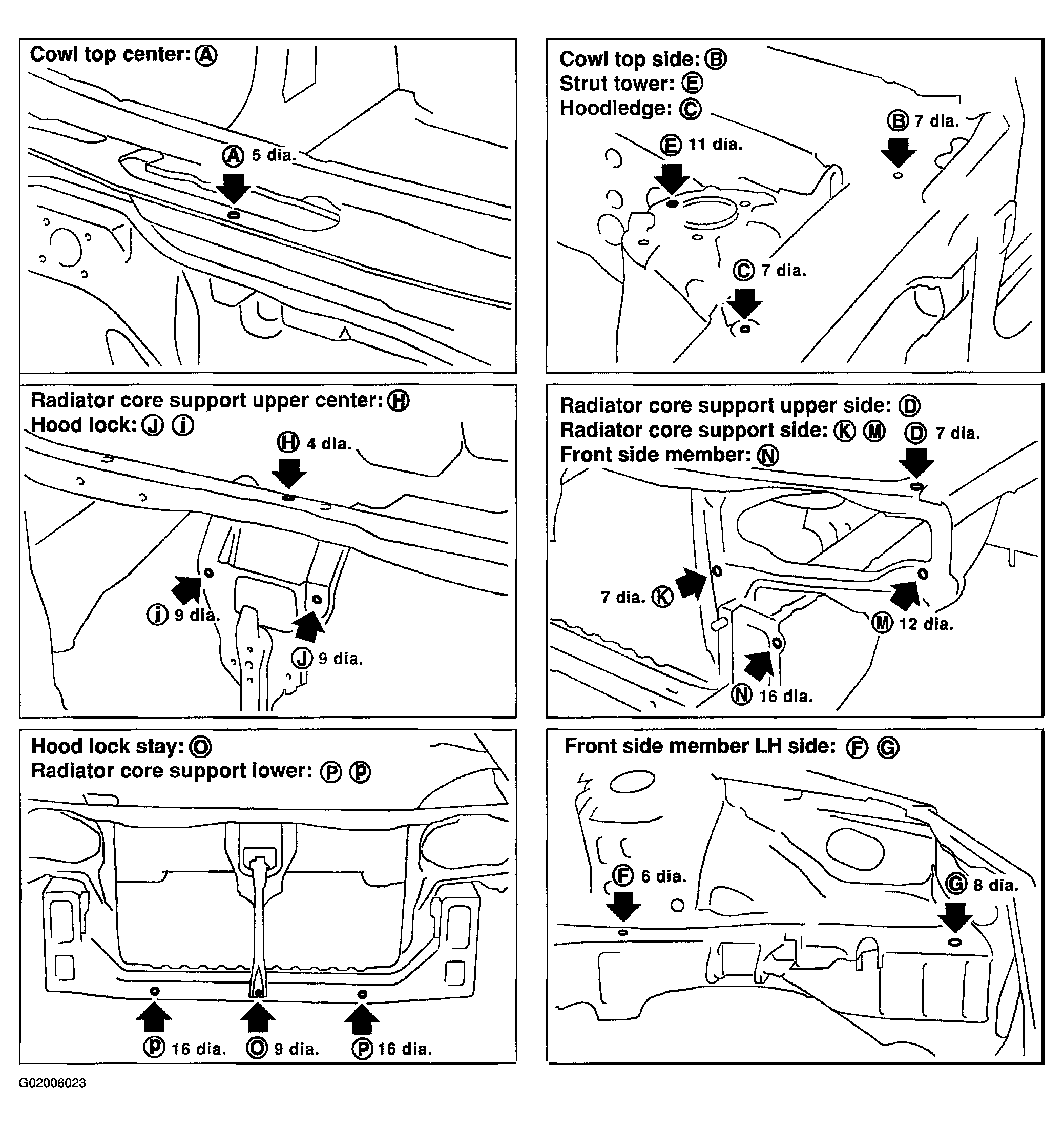

Fig 1: Identifying Measuring Points Of Engine Compartment
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
