Measurement Points
Measurement Points

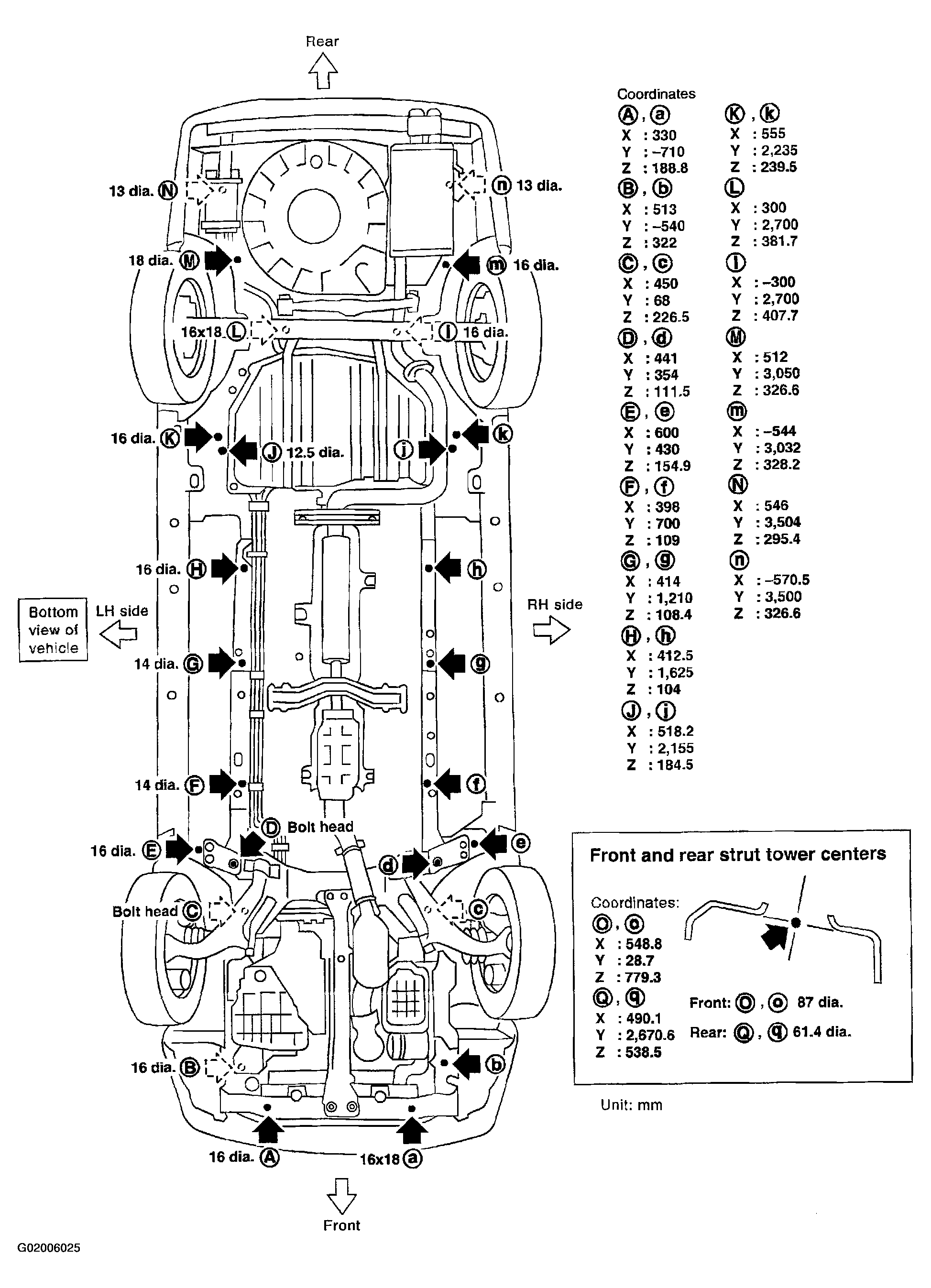

Fig 1: Identifying Measuring Points Of Underbody
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
