Front Door Lock: Notes

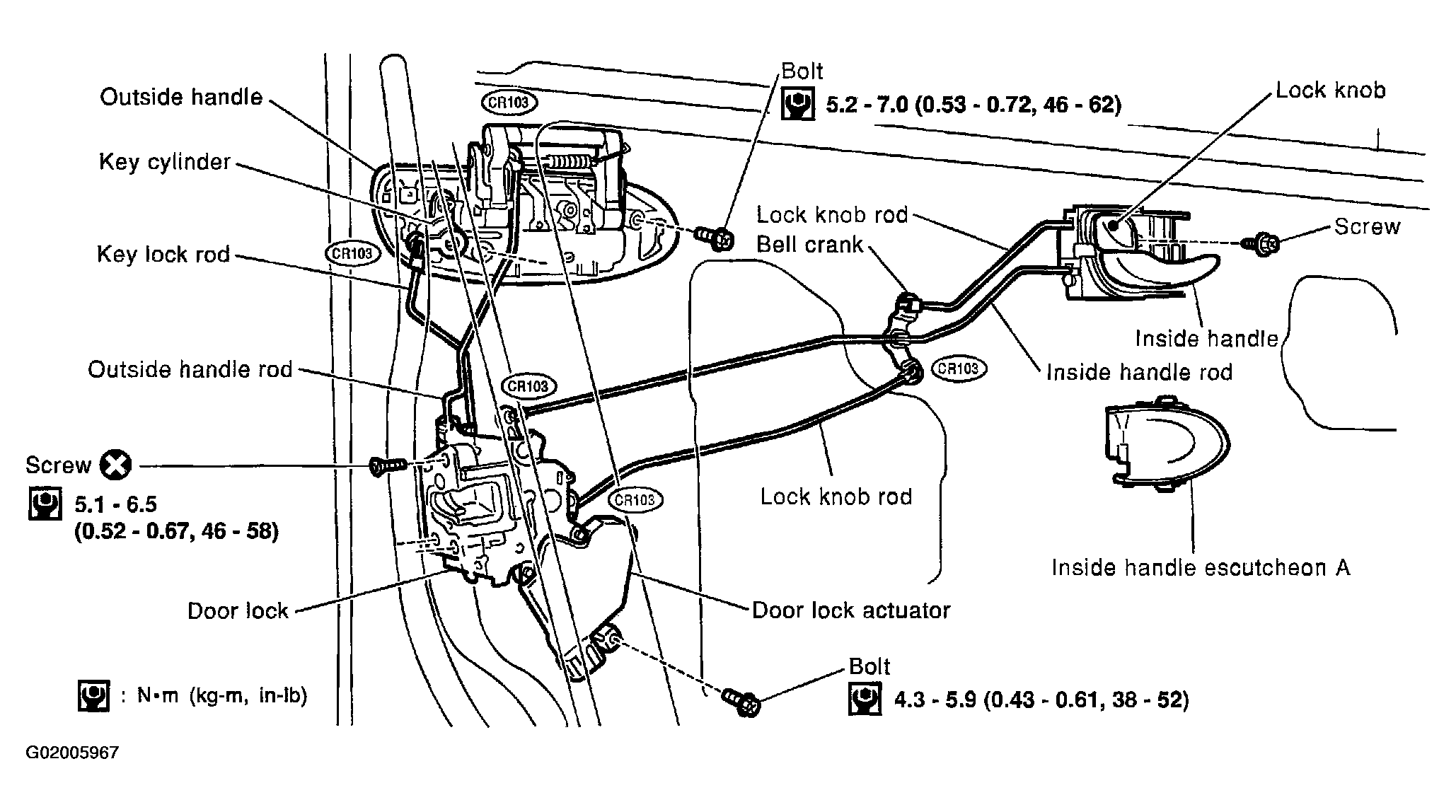

Fig 1: Exploded View Of Front Door Lock System

G02005967

Courtesy of NISSAN MOTOR CO., U.S.A.

For removal of front door trim, refer to "DOOR TRIM ".
Remove sealing screen.
