Anti-Lock/Traction Control/TCS: Description: Schematic

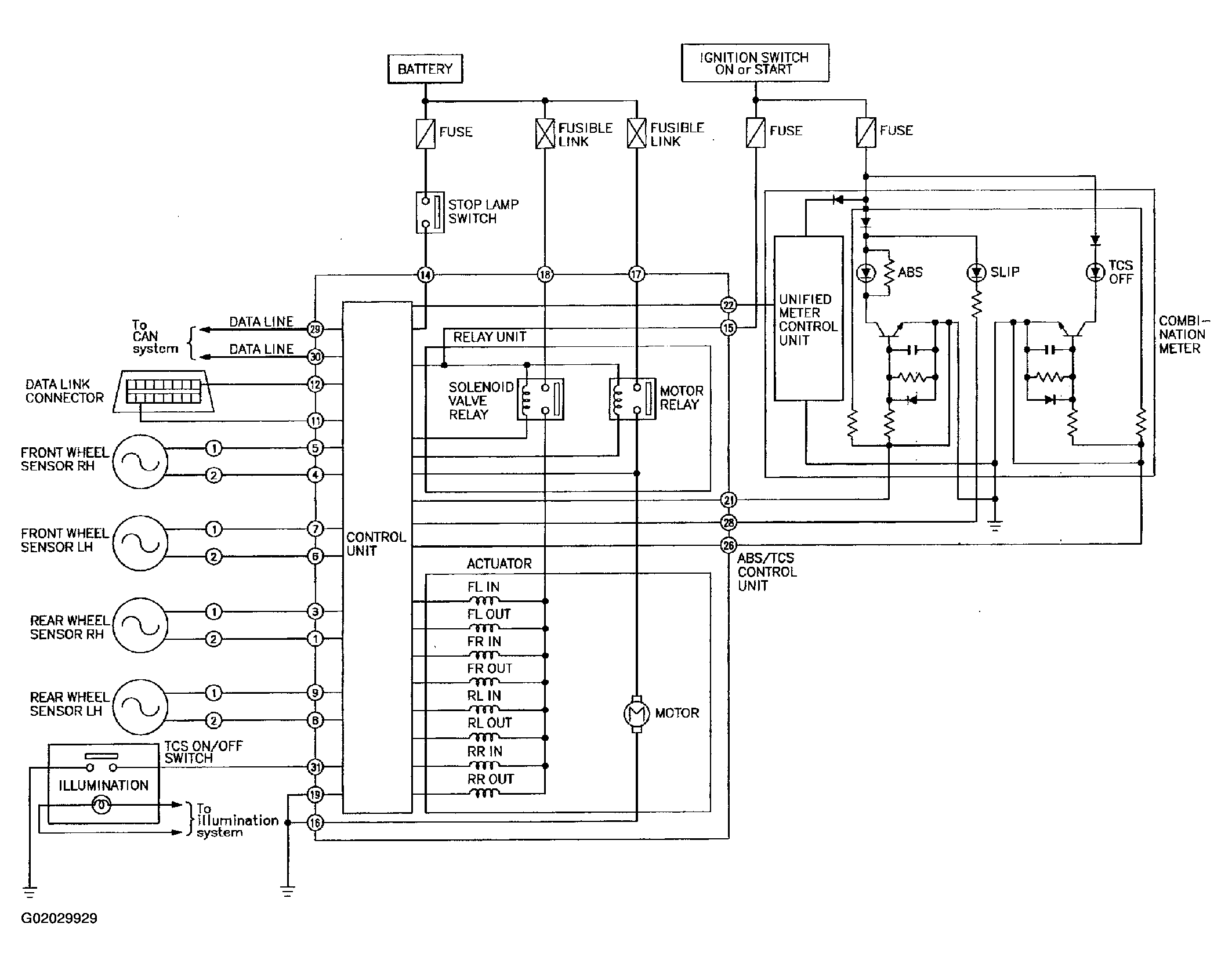

Fig 1: TCS Schematic
G02029929Courtesy of NISSAN MOTOR CO., U.S.A.
