Engine Cooling System
›
Overheating Cause Analysis
Overheating Cause Analysis

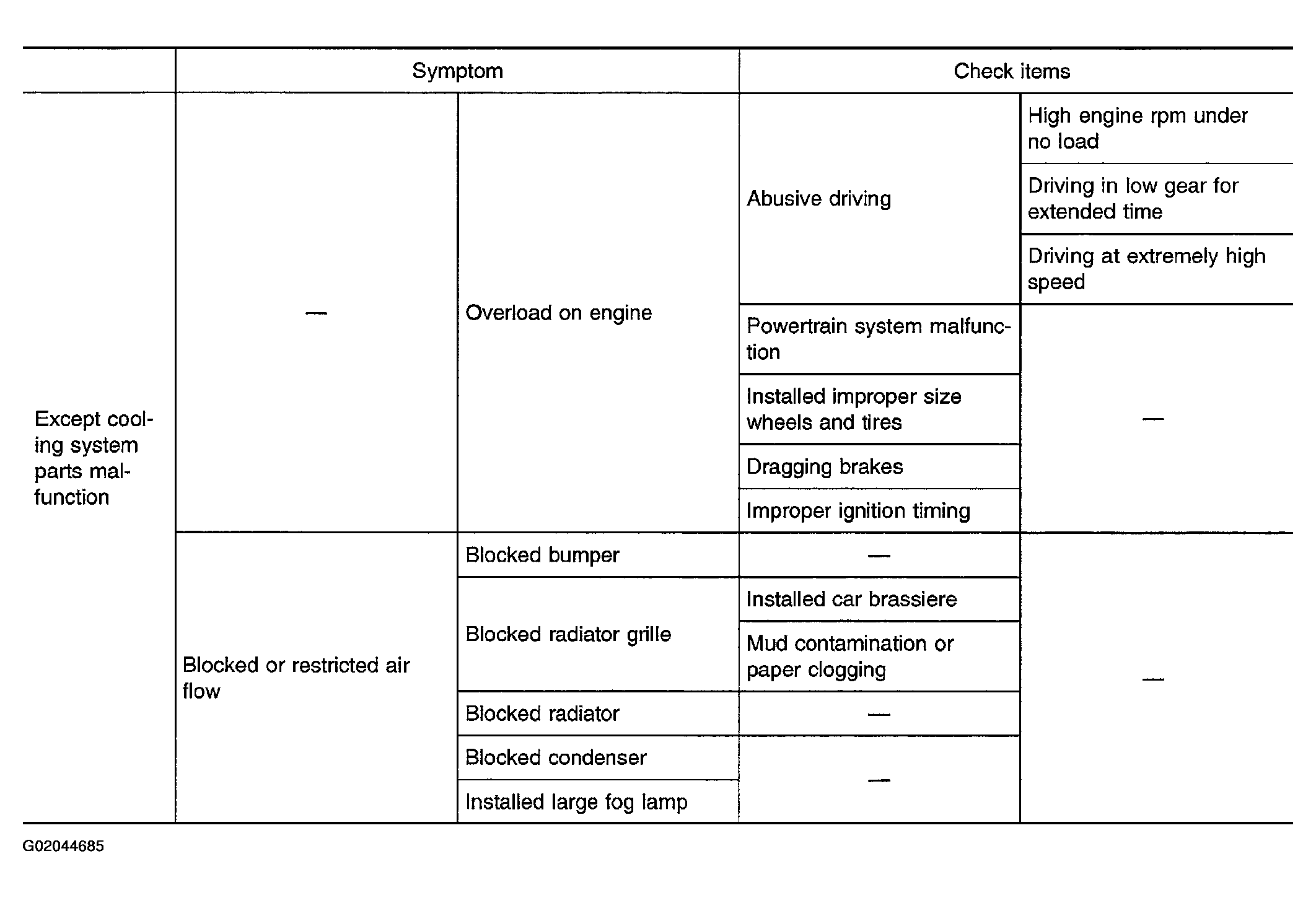

Fig 1: Engine Cooling System Overheating Cause Analysis Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

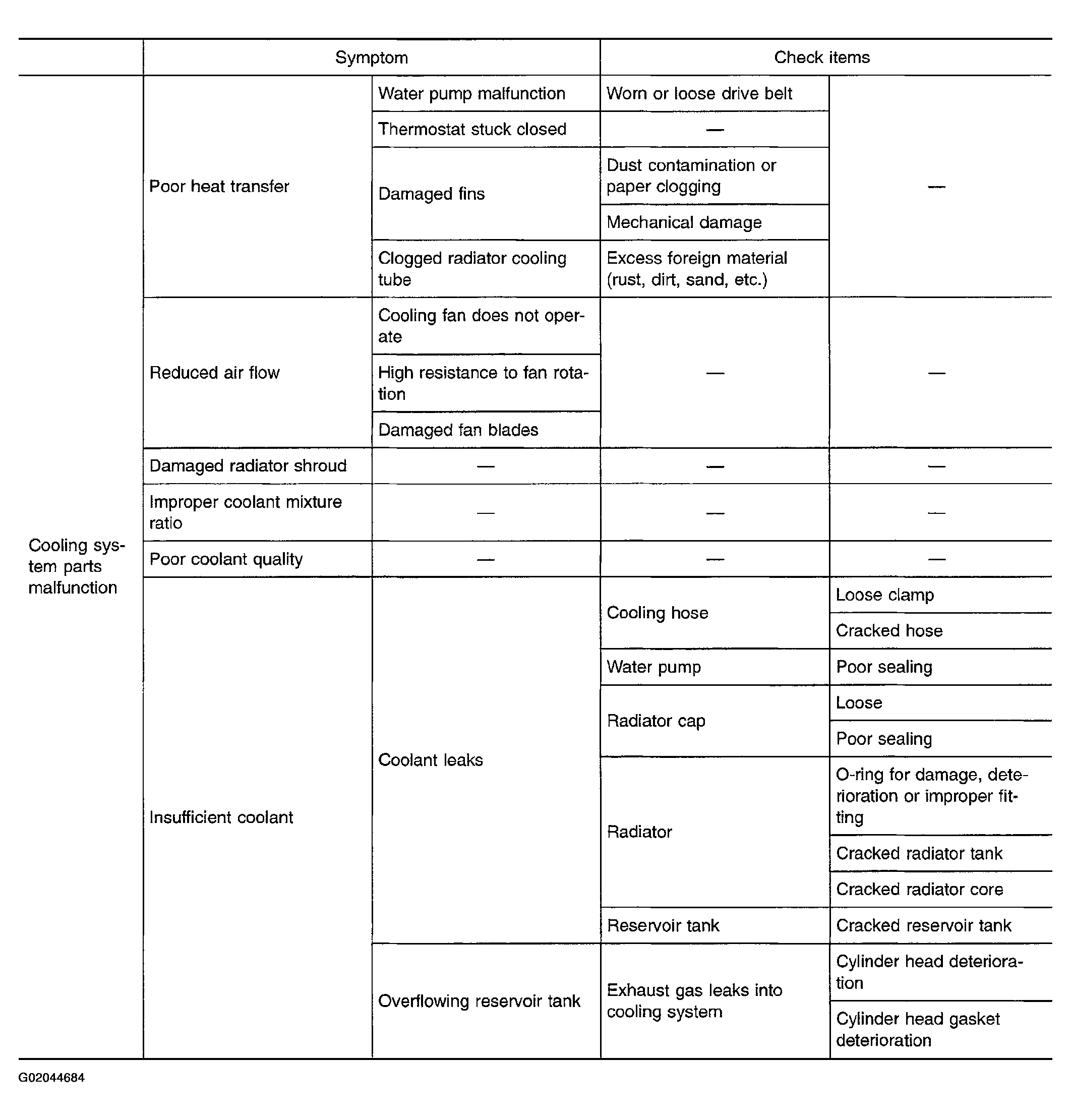

Fig 2: Engine Cooling System Overheating Cause Analysis Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
