Automatic Speed Control Device (ASCD): Schematic

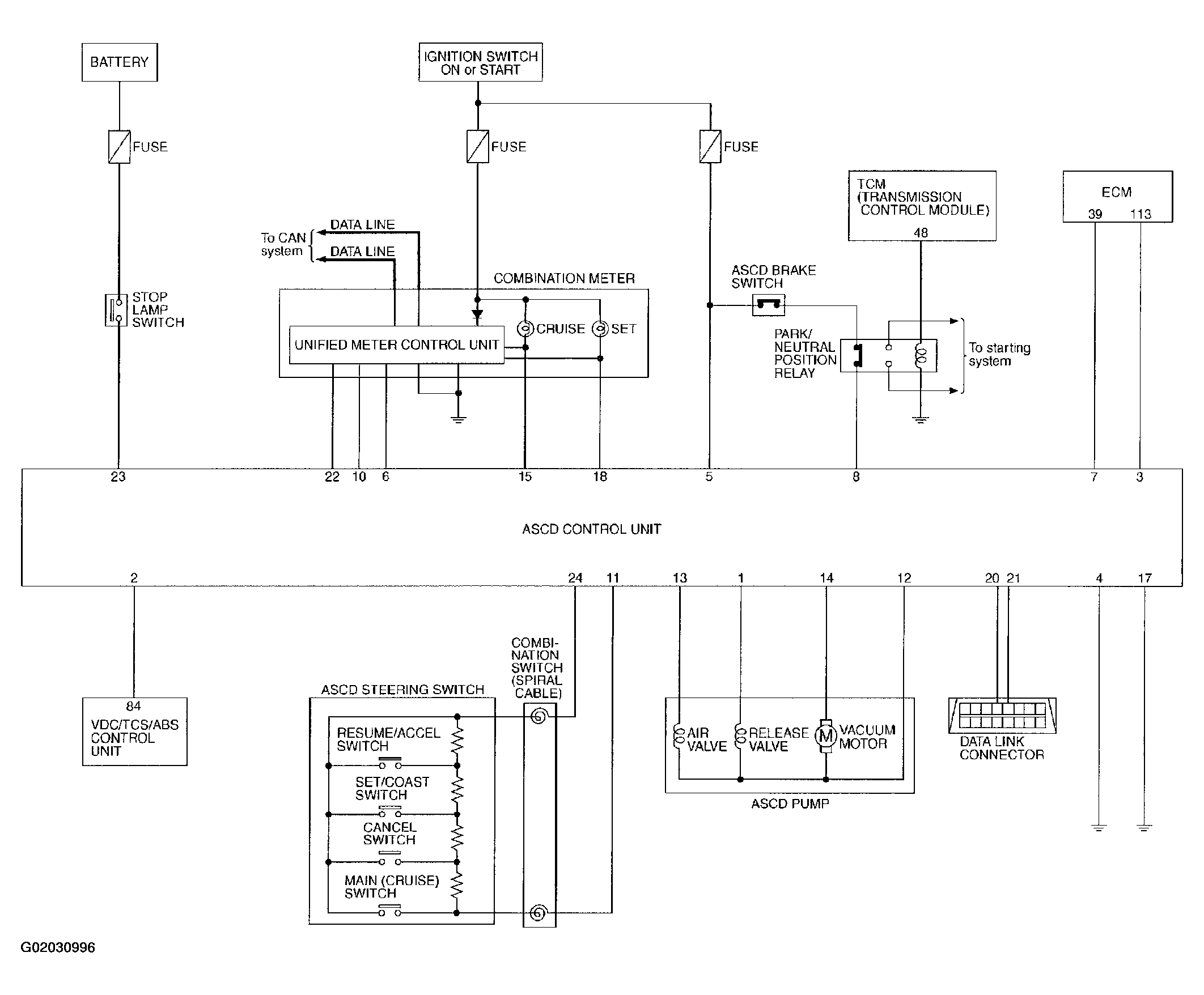

Fig 1: Automatic Speed Control Device (ASCD) Schematic Diagram
G02030996Courtesy of NISSAN MOTOR CO., U.S.A.
