Terminals and Reference Value for ICC Radar Sensor
Terminals and Reference Value for ICC Radar Sensor

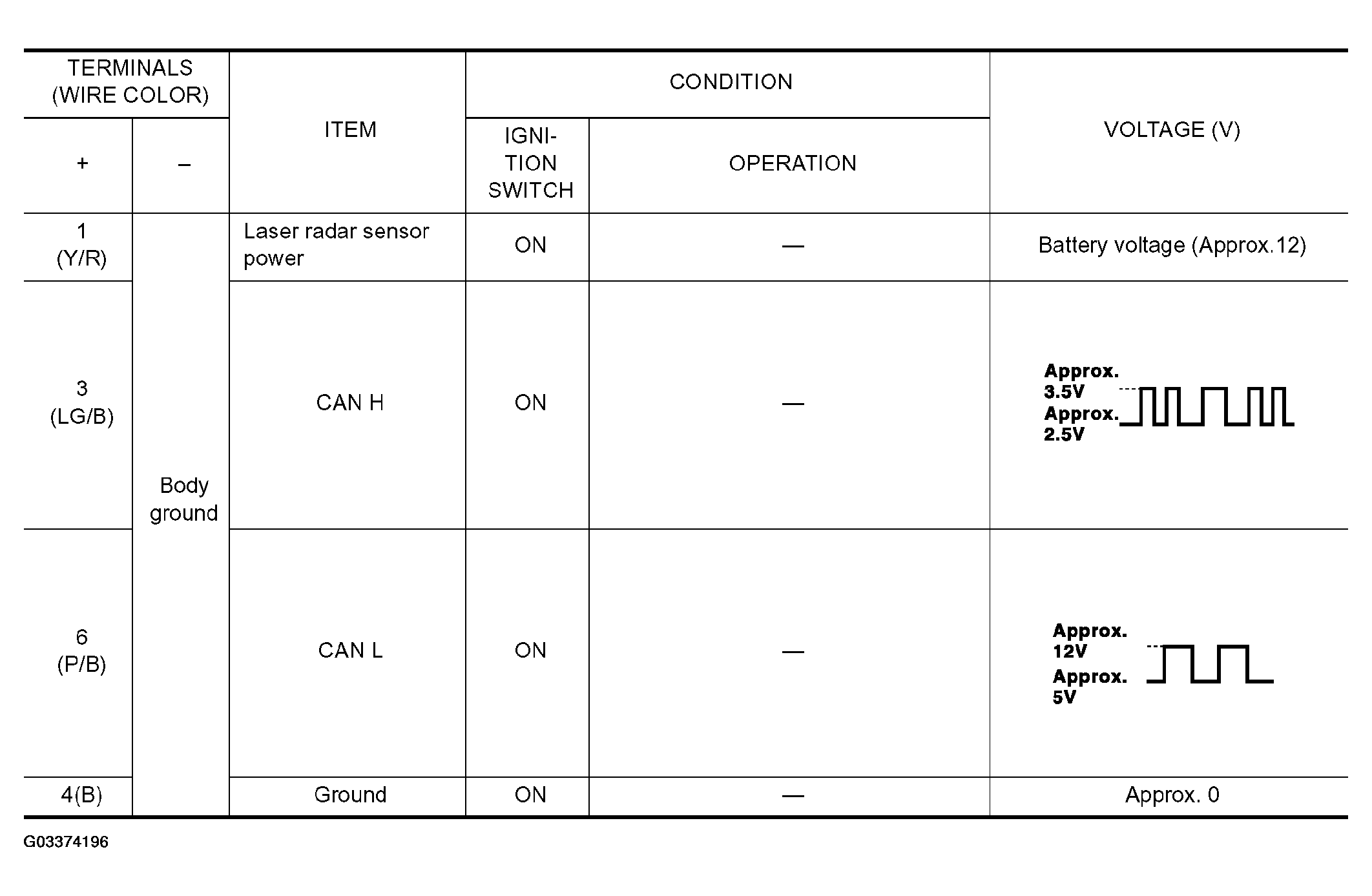

Fig 1: ICC Radar Sensor Terminals & Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
