Terminals and Reference Value for ICC Unit

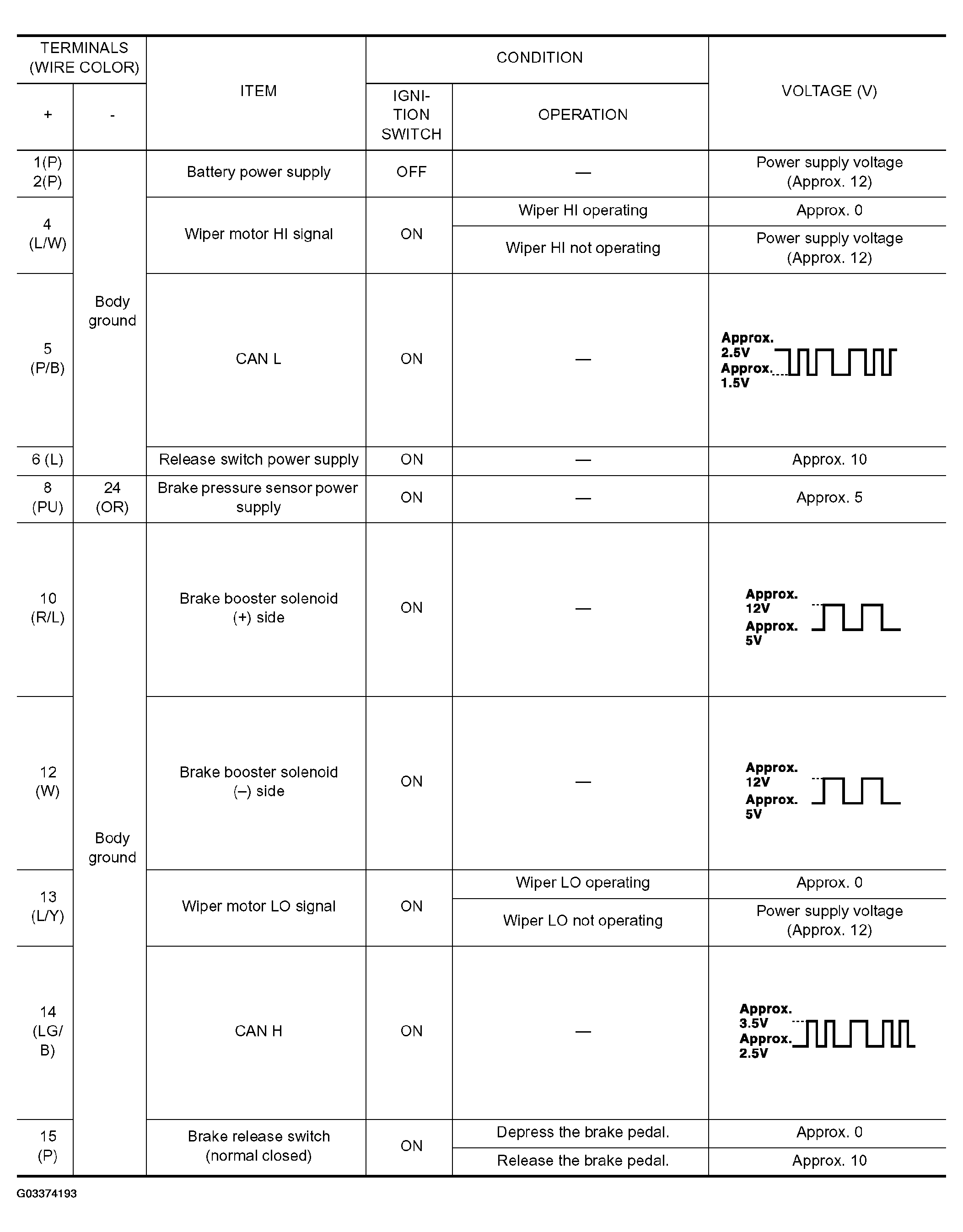

Fig 1: ICC Unit Terminals & Reference Value Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

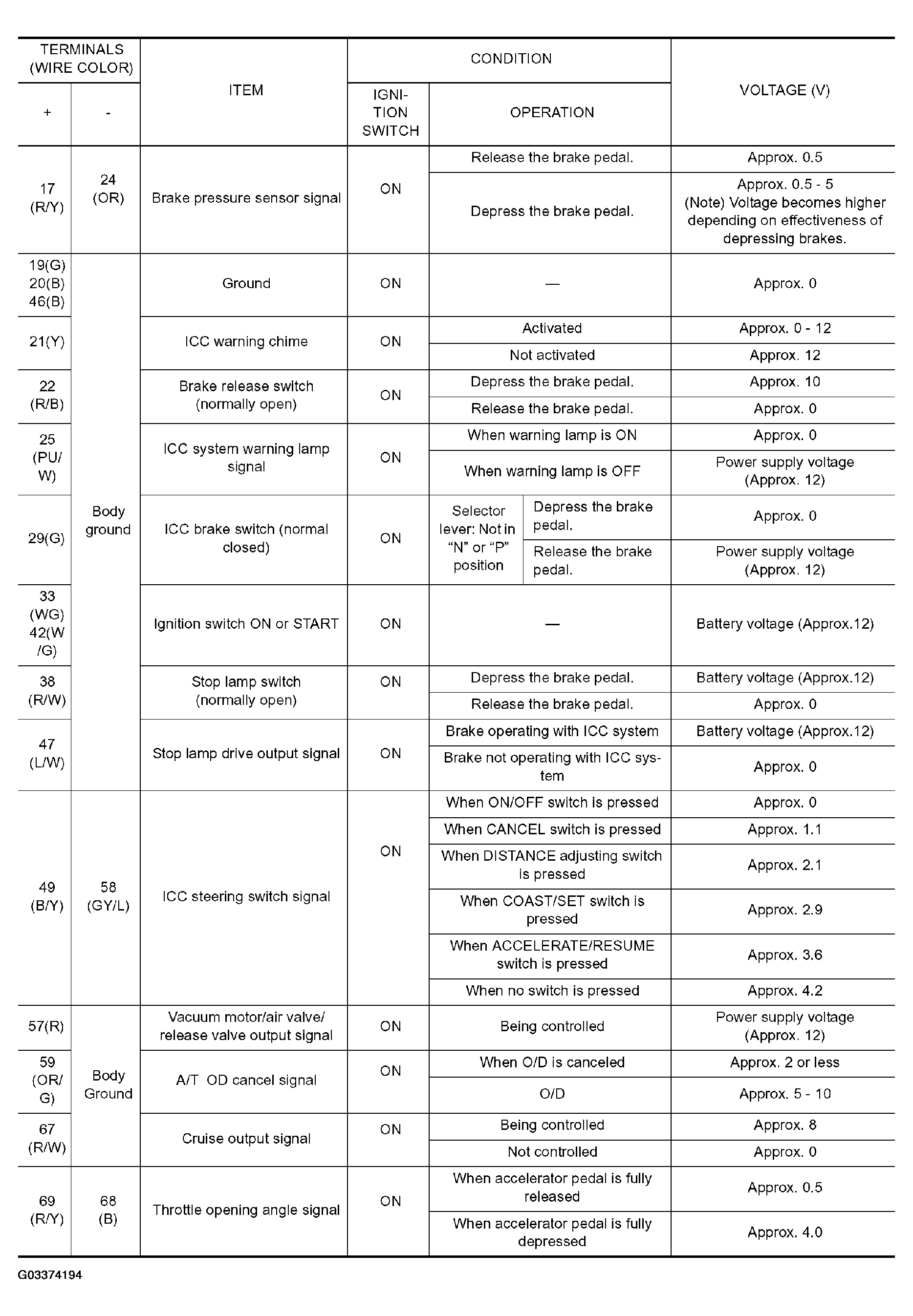

Fig 2: ICC Unit Terminals & Reference Value Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

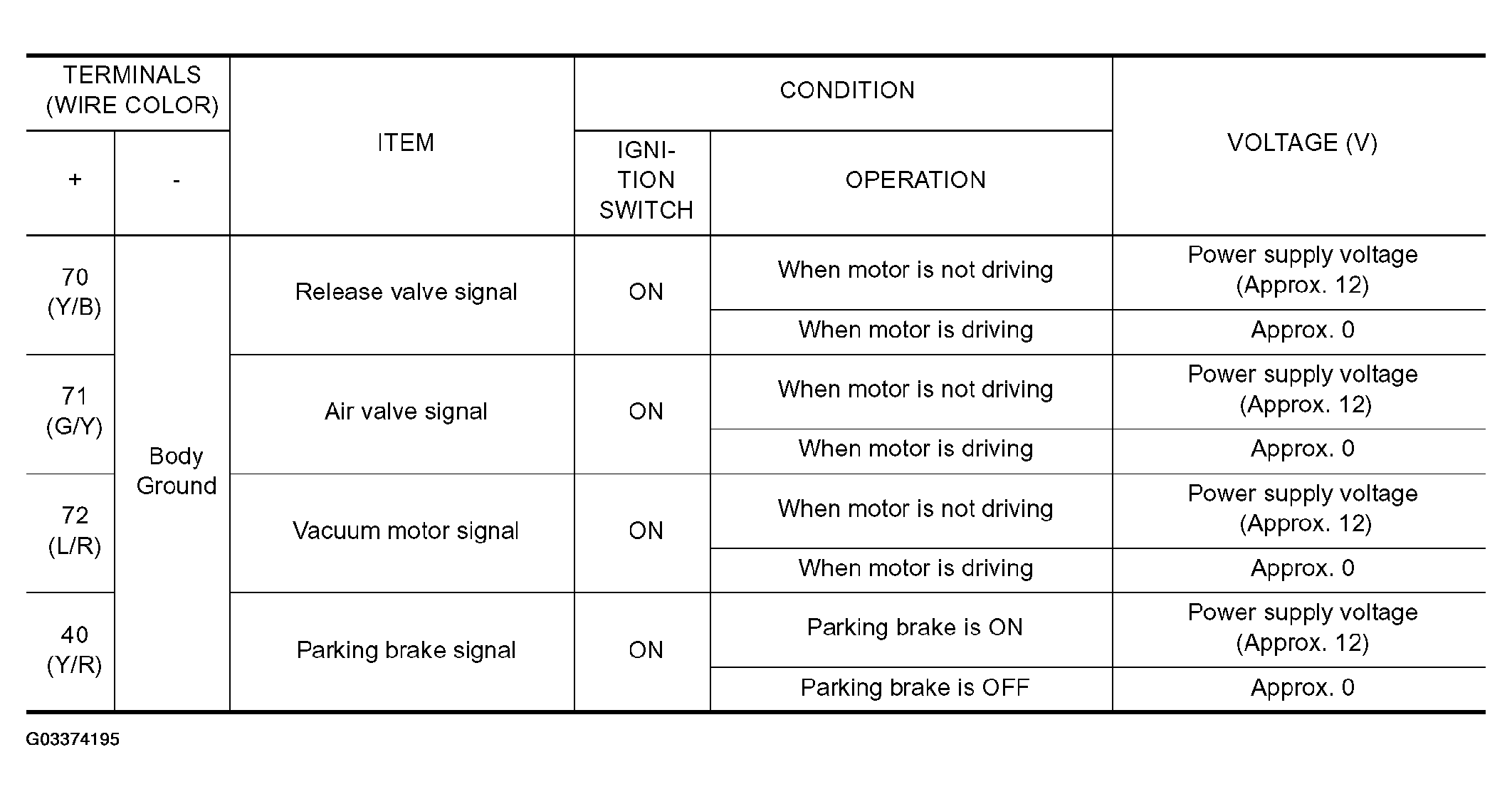

Fig 3: ICC Unit Terminals & Reference Value Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
