Vehicle Signals

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

Fig 1: Vehicle Signals Display
Courtesy of NISSAN MOTOR CO., U.S.A.

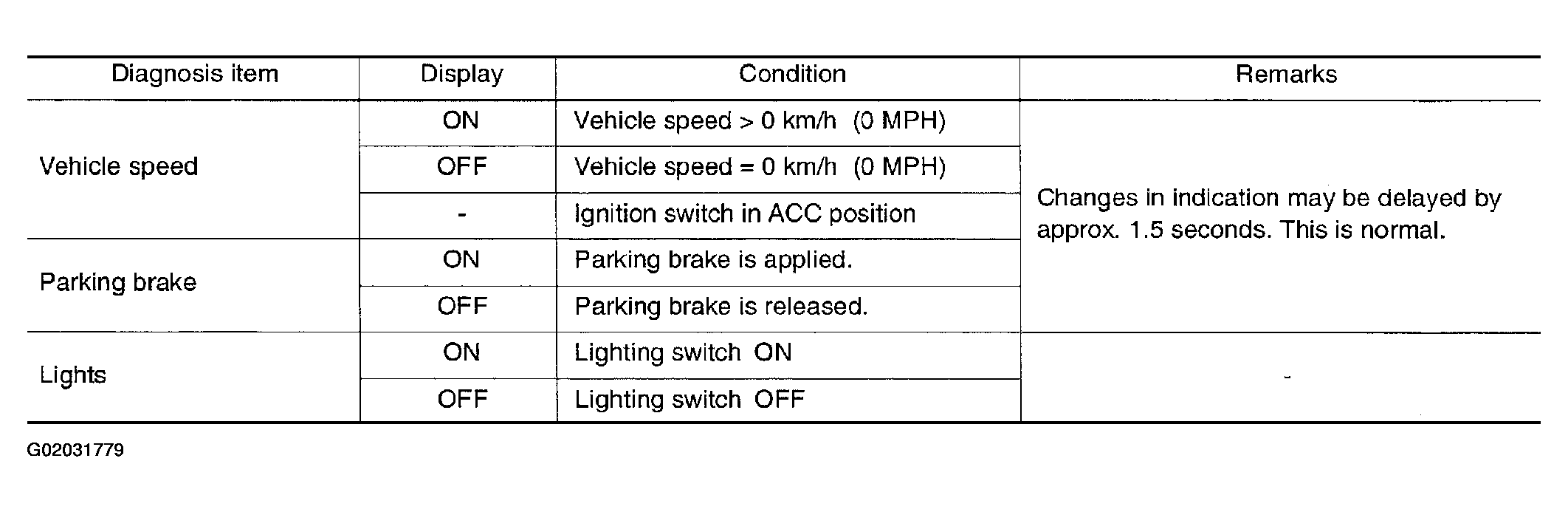

Fig 2: Vehicle Signals Description Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

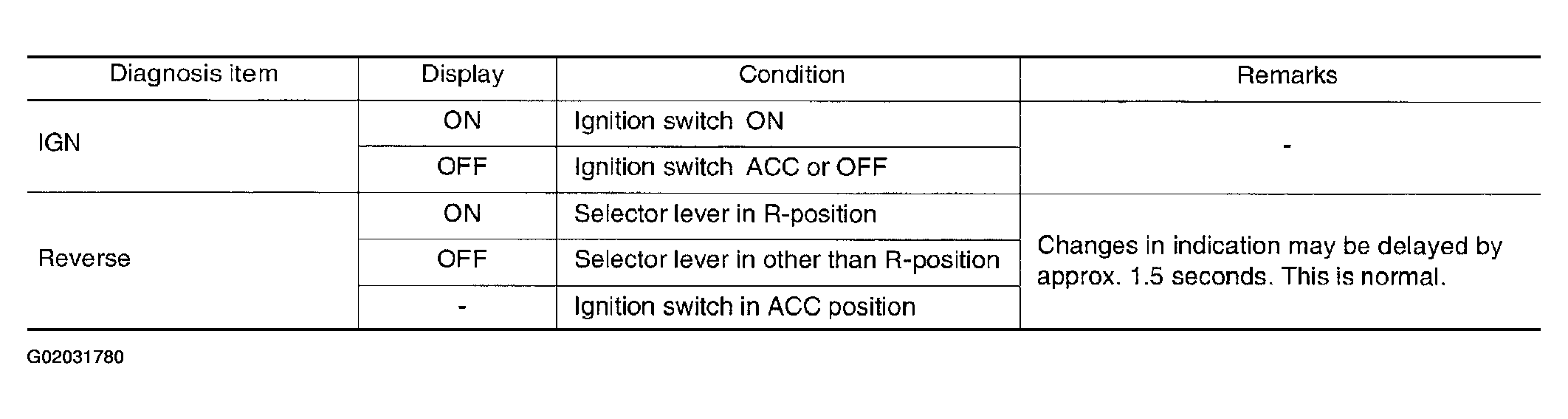

Fig 3: Vehicle Signals Description Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
If vehicle speed is NG, refer to "VEHICLE SPEED SIGNAL CHECK " .
If parking brake is NG, refer to "PARKING BRAKE SIGNAL CHECK ".
If light is NG, refer to "ILLUMINATION CONTROL SIGNAL CHECK ".
If IGN is NG, refer to "IGNITION SIGNAL CHECK ".
If reverse is NG, refer to "REVERSE SIGNAL CHECK ".
