RGB Screen Is Not Shown

HARNESS CHECK
1. Turn the ignition switch OFF.
2. Disconnect AV and NAVI control unit connector and Display connector.
3. Check continuity between AV and NAVI control unit and Display.

  Fig 1: Checking Harness (1 Of 3)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Checking Harness (2 Of 3)
  Courtesy of NISSAN MOTOR CO., U.S.A.

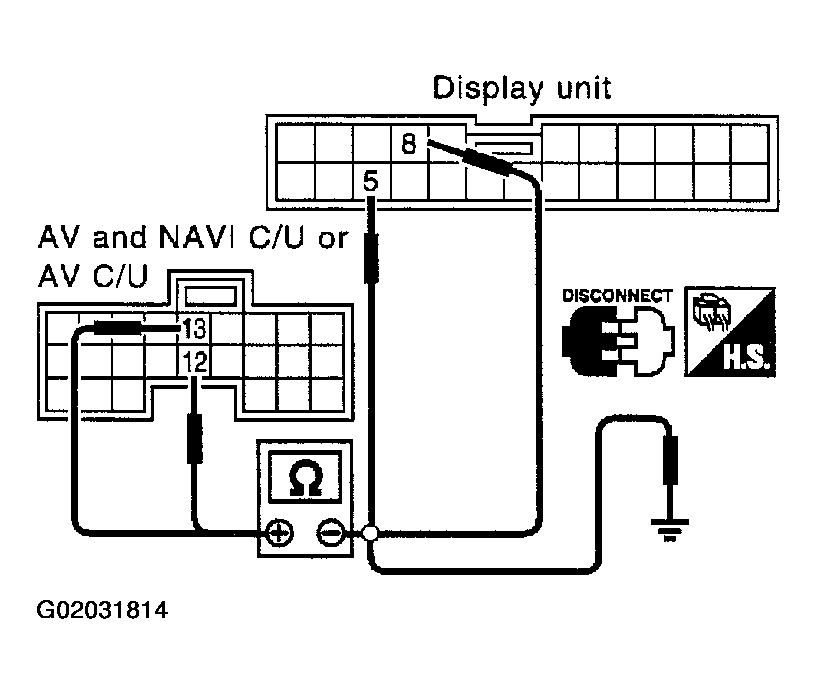

4. Check continuity between AV and NAVI control unit and ground.

  Fig 3: Checking Harness (3 Of 3)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK >> GO TO 2.
2. NG >>
  - Check harness for open or short between AV and NAVI control unit and Display.
  - Check connector housings for disconnected or loose terminals.
HORIZONTAL SYNCHRONIZATION SIGNAL CHECK
1. Connect AV and NAVI control unit connector and Display connector.
2. Turn the ignition switch ON.
3. Check voltage between AV and NAVI control unit connector terminals 13 and 10.

  Fig 4: Checking Horizontal Synchronization Signal (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 5: Checking Horizontal Synchronization Signal (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK >> GO TO 3.
2. NG >> Replace Display.
RGB AREA SIGNAL CHECK
1. Press "INFO" switch.
2. Check voltage between AV and NAVI control unit connector terminals 12 and 10.

  Fig 6: Checking RGB Area Signal (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 7: Checking RGB Area Signal (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK >> Replace Display
2. NG >> Replace AV and NAVI control unit
