CONSULT-II Function
›
Data Monitor
›
Remote keyless entry item.
Remote keyless entry item.

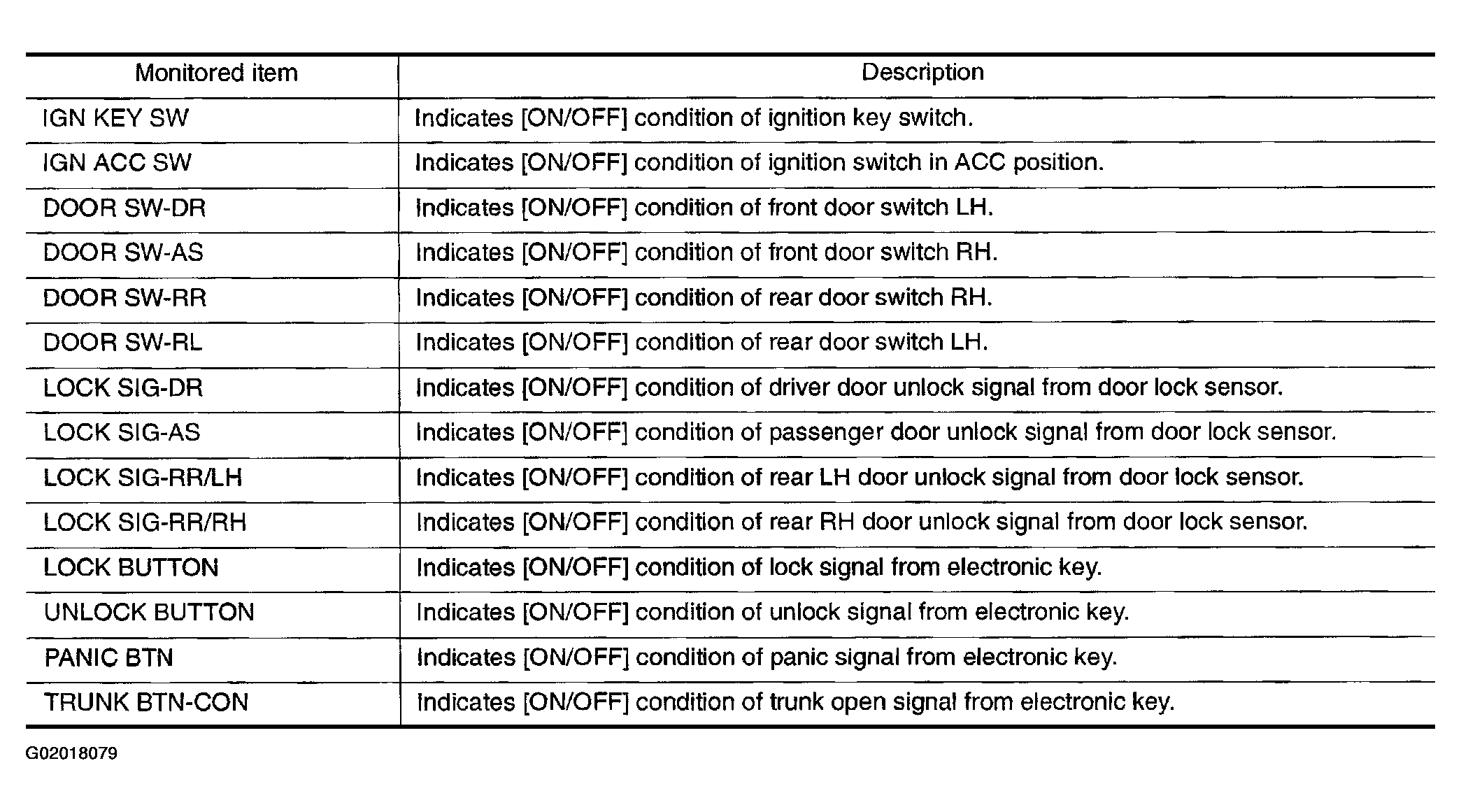

Fig 1: Remote Keyless Entry Item Description
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
