Wiring Diagram-DEF-
›
Notes
Wiring Diagram-DEF-: Notes

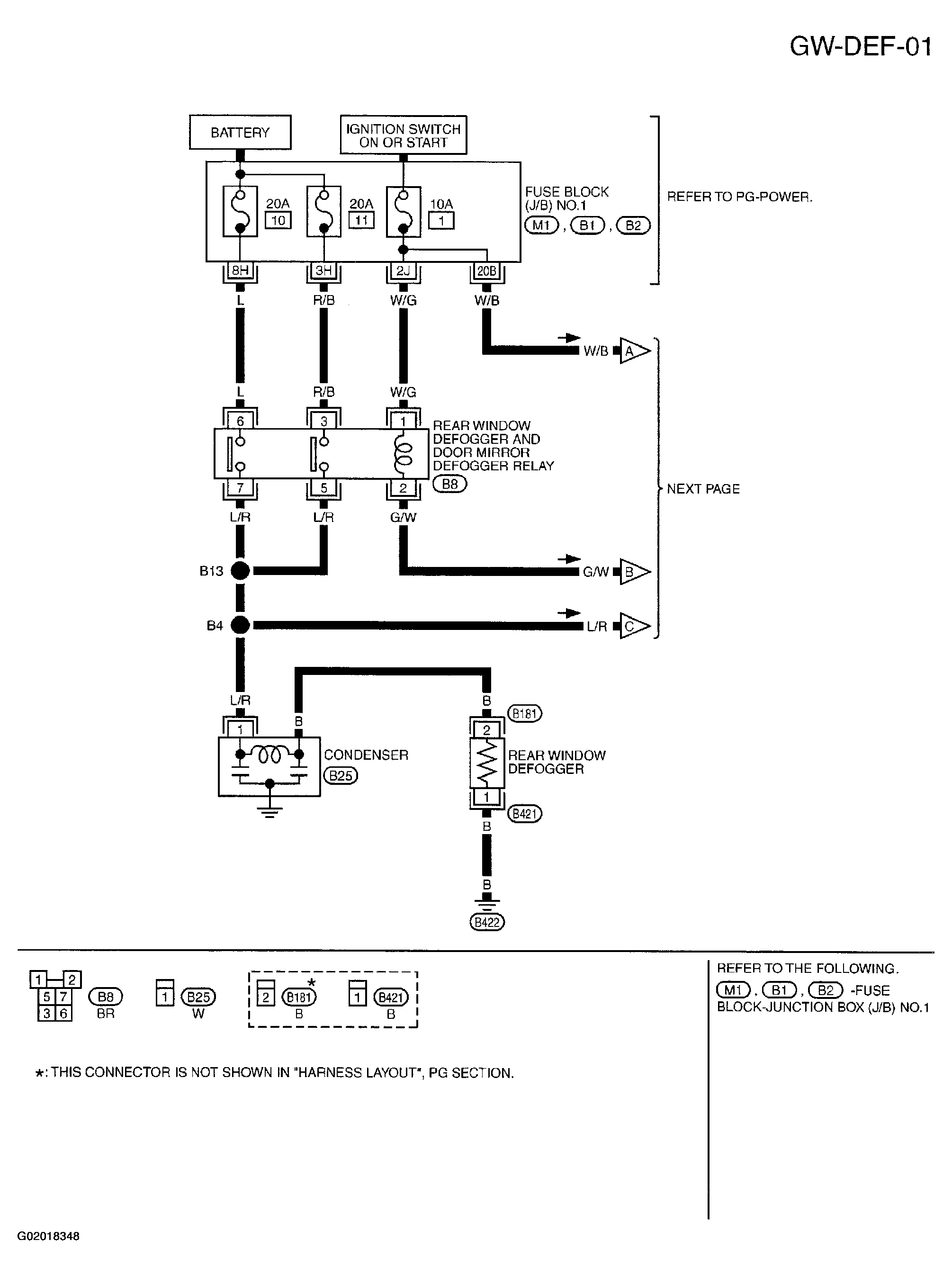

Fig 1: Rear Window Defogger Wiring Diagram And Identifying Connectors (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

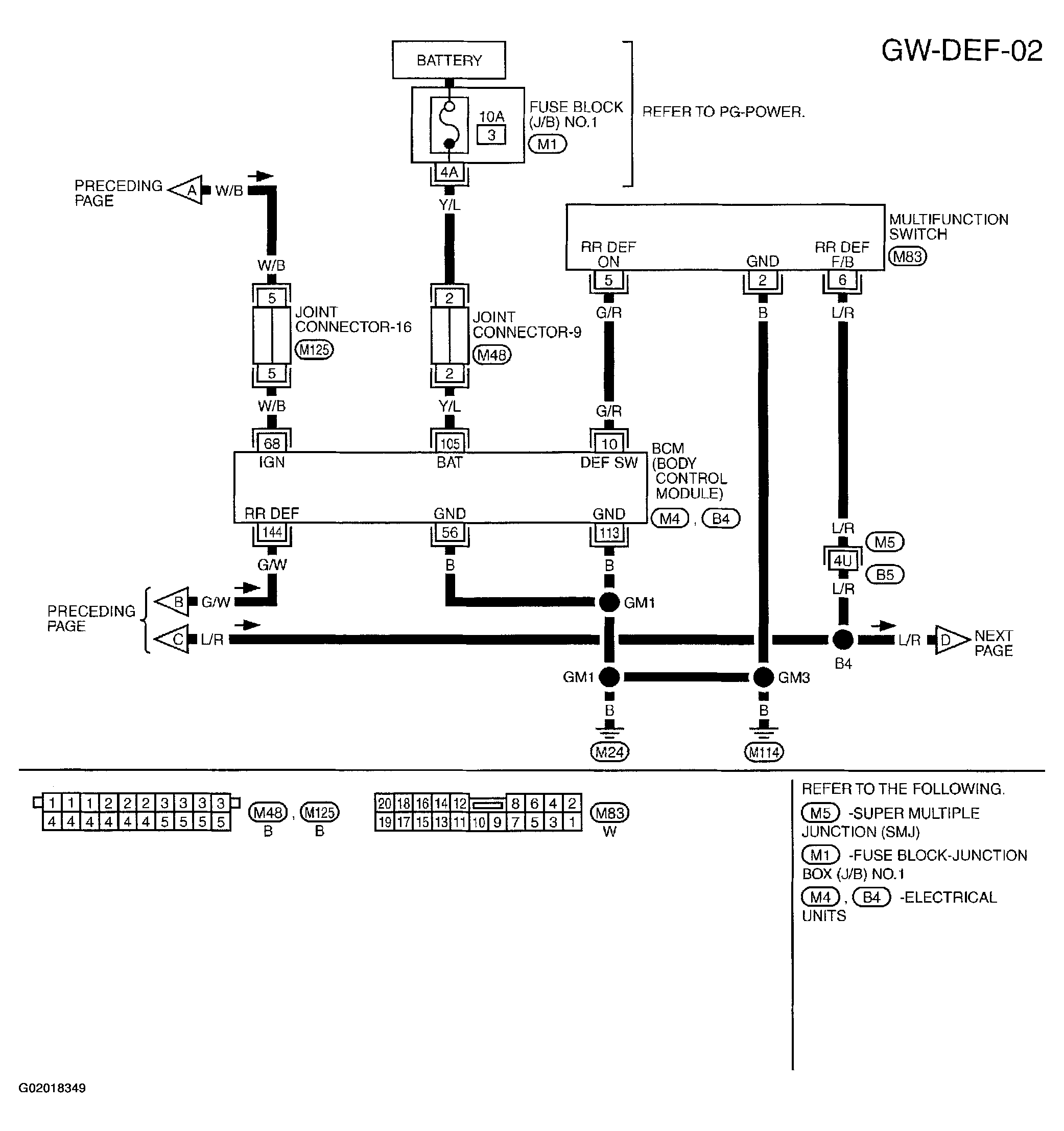

Fig 2: Rear Window Defogger Wiring Diagram And Identifying Connectors (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
