Terminals And Reference Values For BCM

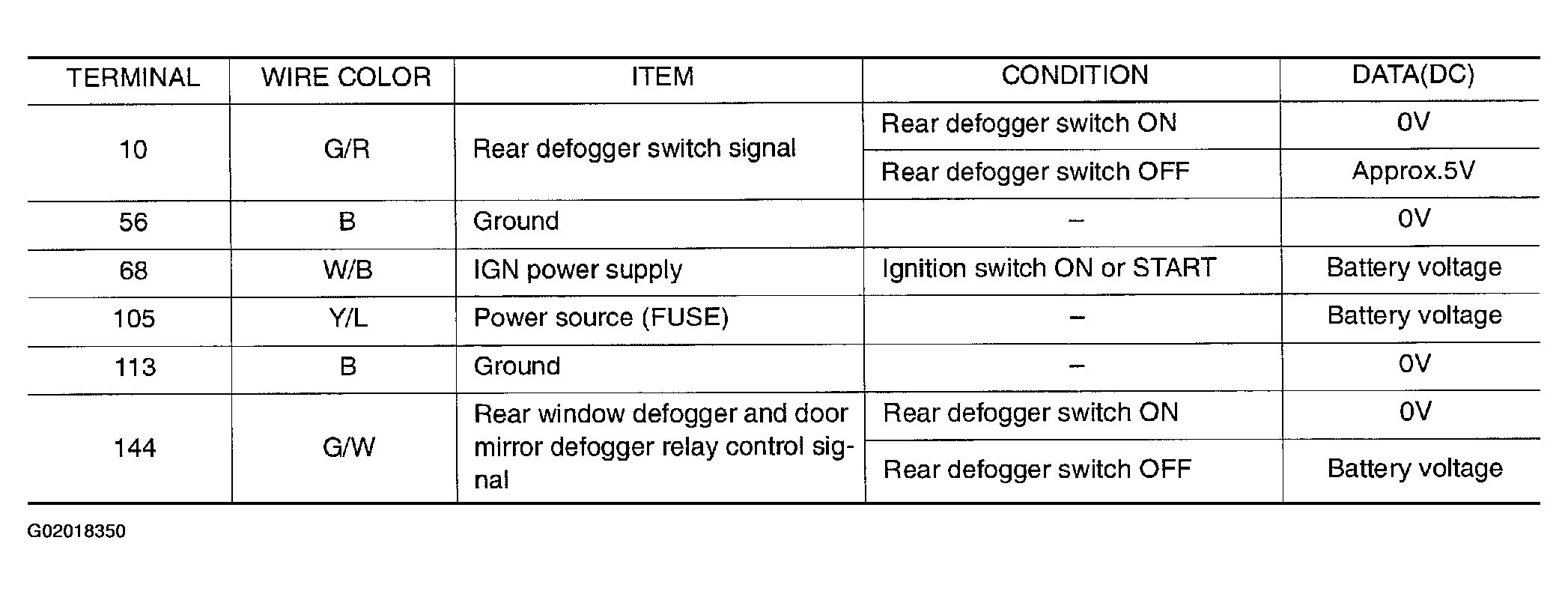

Fig 1: Terminals And Reference Value Chart (BCM)

Courtesy of NISSAN MOTOR CO., U.S.A.

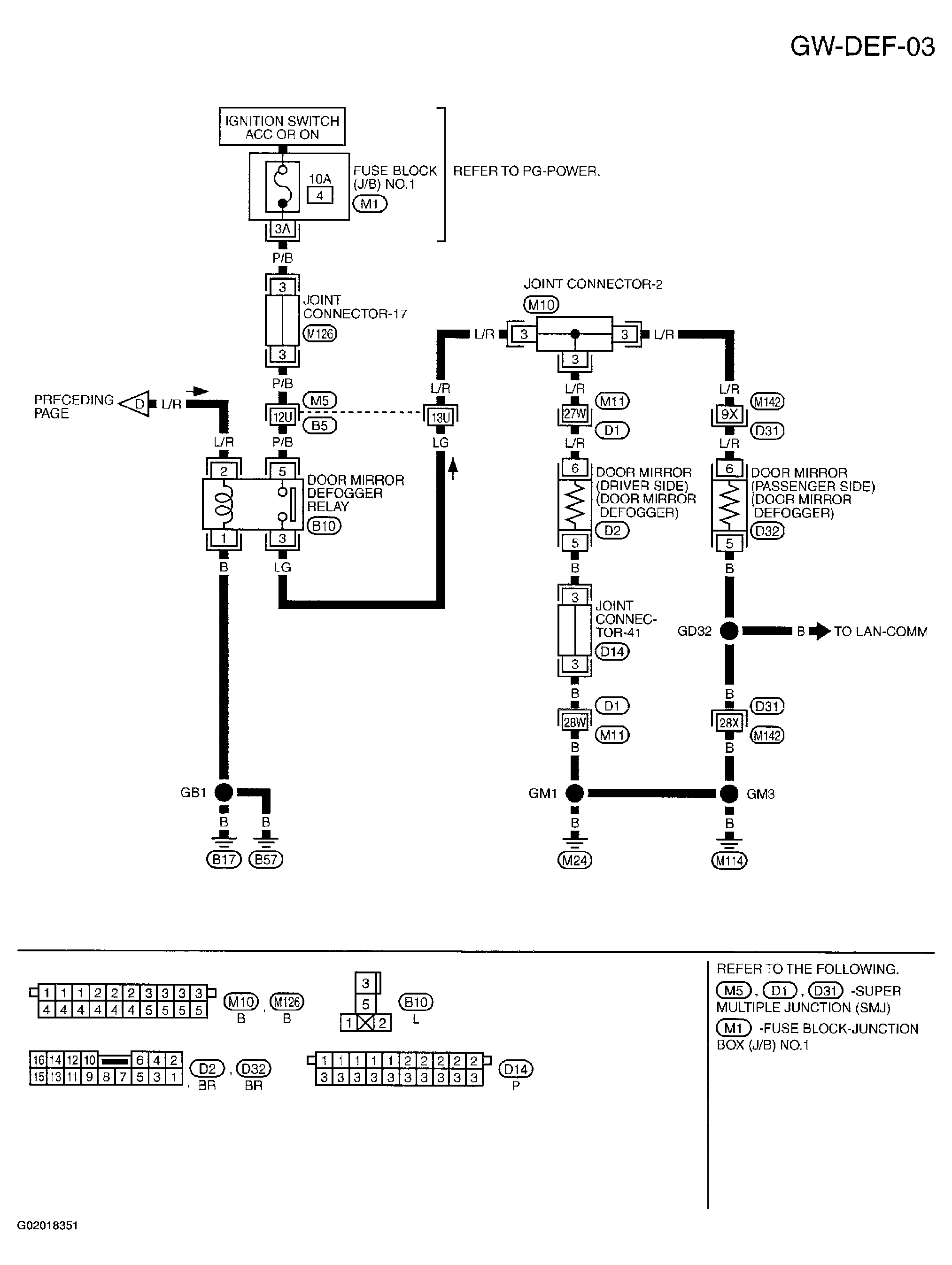

Fig 2: Rear Window Defogger Wiring Diagram And Identifying Connectors (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
