Repair and Diagnosis
›
Brakes
›
Anti-Lock/Traction Control
›
General Information
›
Can Communication
›
Input/Output Signal Chart
Input/Output Signal Chart

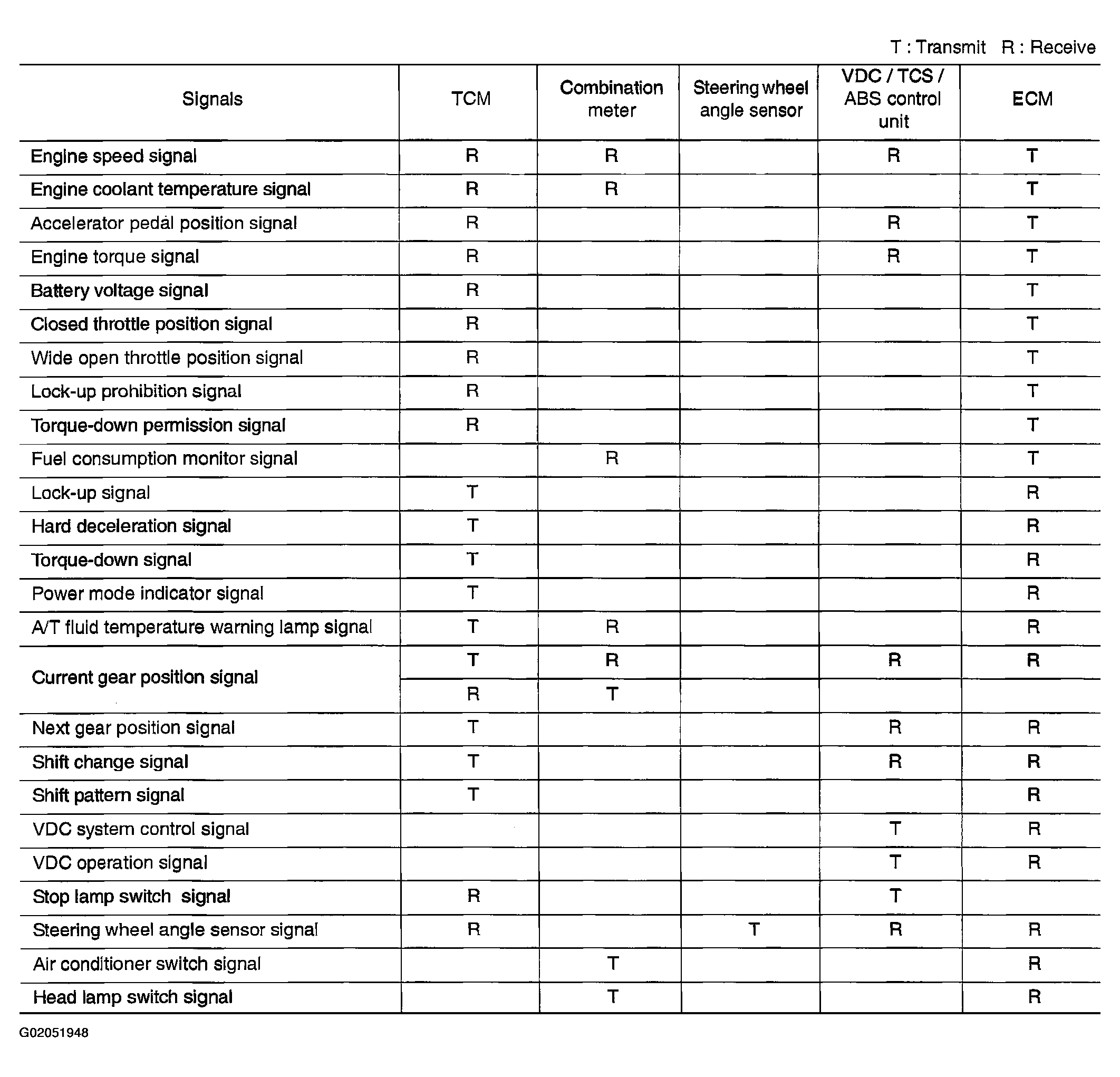

Fig 1: Displaying Input/Output Signal Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

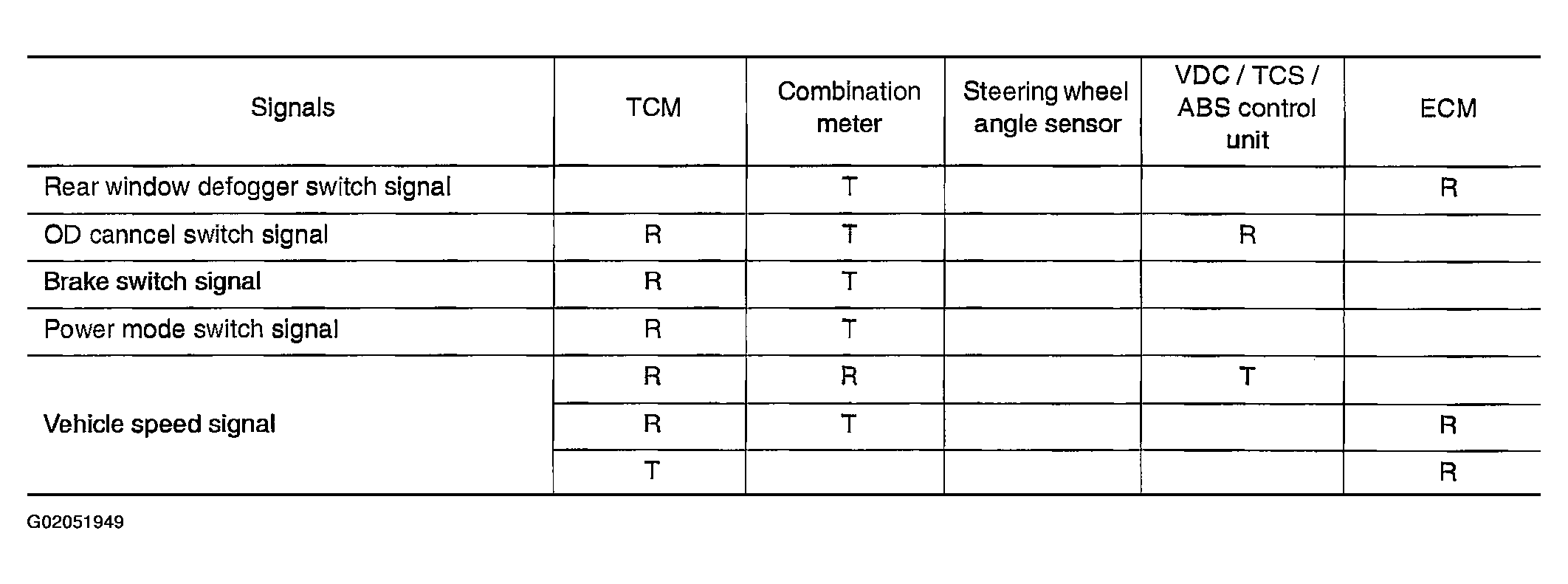

Fig 2: Displaying Input/Output Signal Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
