Repair and Diagnosis
›
Brakes
›
Anti-Lock/Traction Control
›
General Information
›
System Diagram
System Diagram

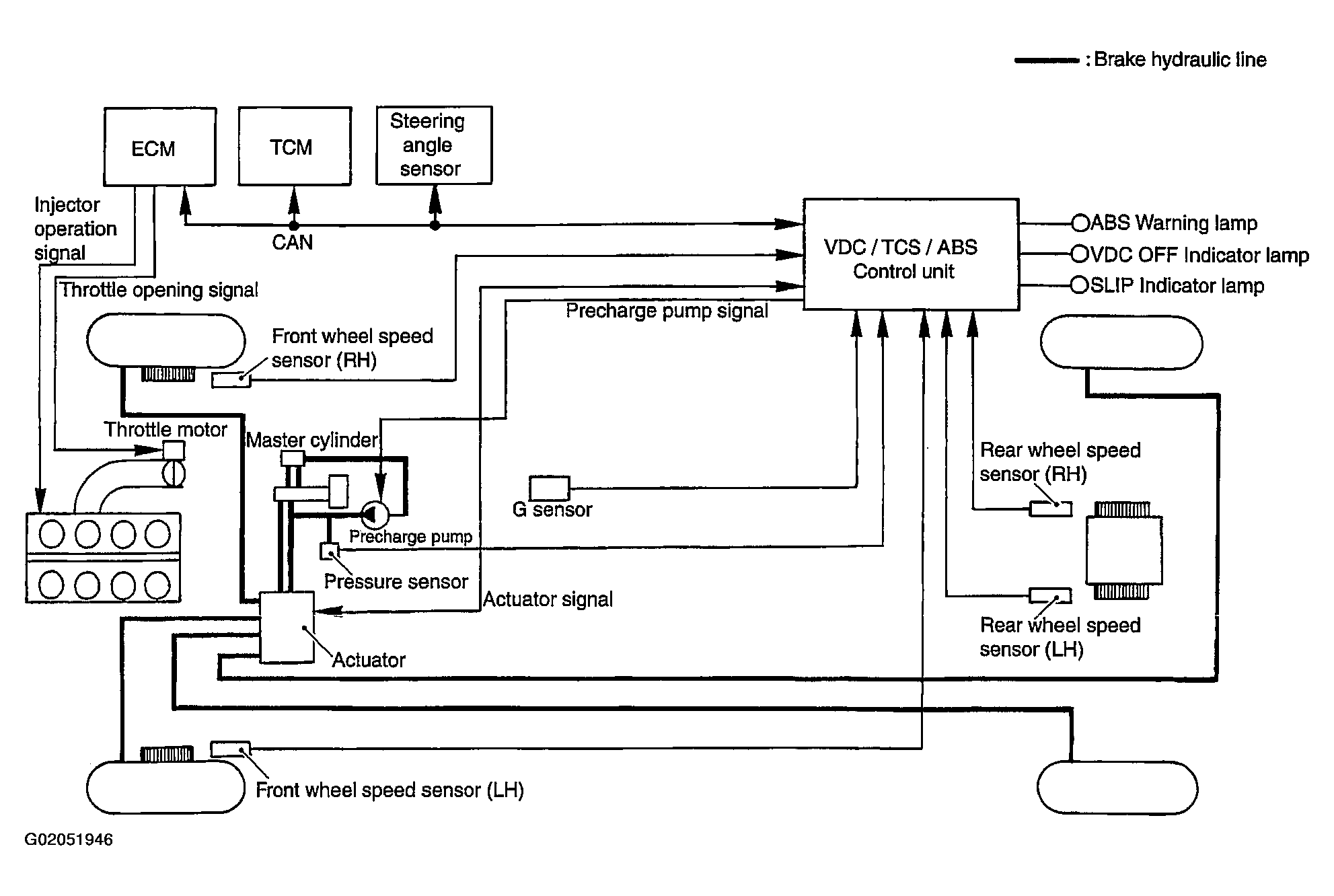

Fig 1: Displaying System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
