Functions Of Consult-II
›
CONSULT-II Function Application To ABS
CONSULT-II Function Application To ABS

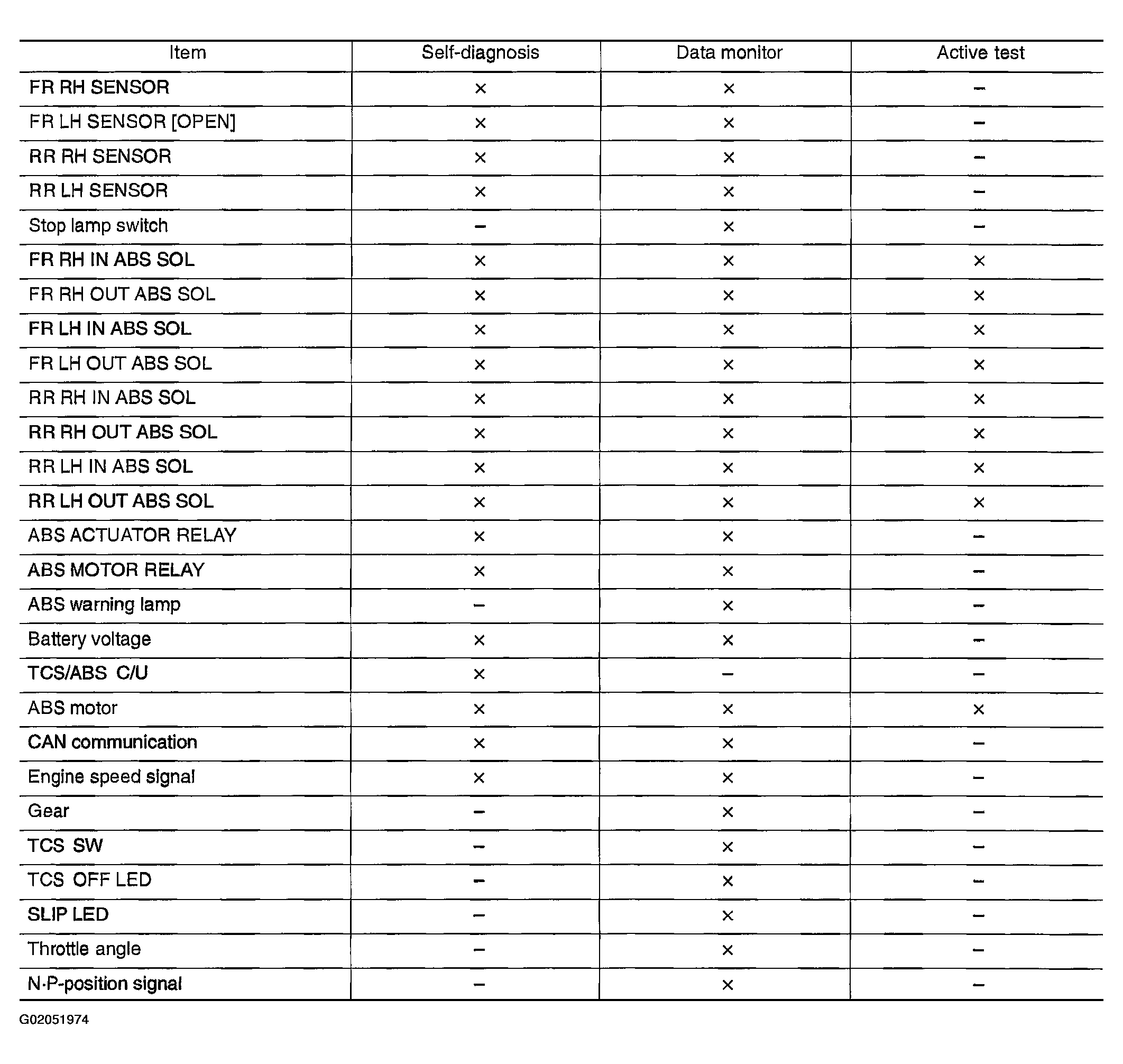

Fig 1: Identifying CONSULT-II Function Application Tests
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
