Inspection 2 Engine System

Check the self-diagnosis results.

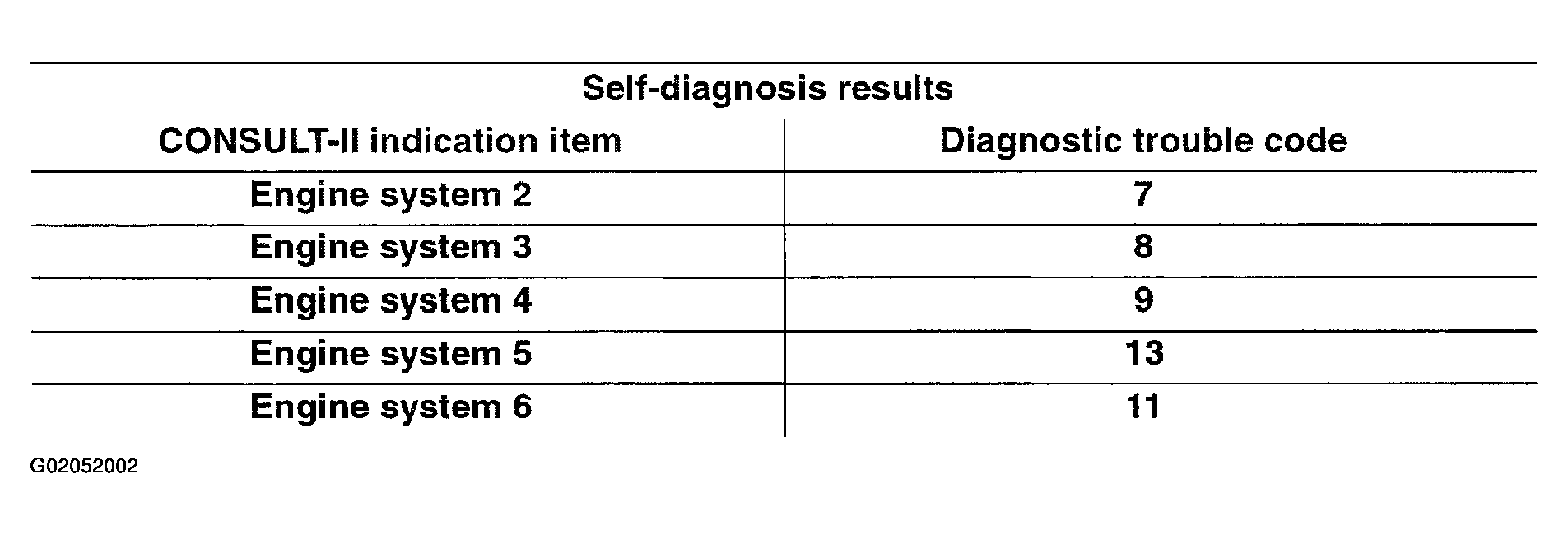

Fig 1: Displaying Engine Systems DTCs

Courtesy of NISSAN MOTOR CO., U.S.A.

Are any items other than above indicated in self-diagnosis results?

1. YES: Repair or replace harness or connector.
2. NO: GO TO  2 .

1. Perform the ECM self-diagnosis and repair or replace harness or connector, then perform the ECM self-diagnosis again.
2. Perform the VDC/TCS/ABS control unit self-diagnosis again.

Is inspection result OK?

1. OK: Inspection End
2. NG: Repair or replace harness or connector. Perform the self-diagnosis again.
