Removal And Installation

  1. Removal and installation of lower instrument panel.
  2. Removal and installation of glove box.
  3. Removal and installation of passenger-side lower instrument panel.
  4. Removal and installation of ECM.

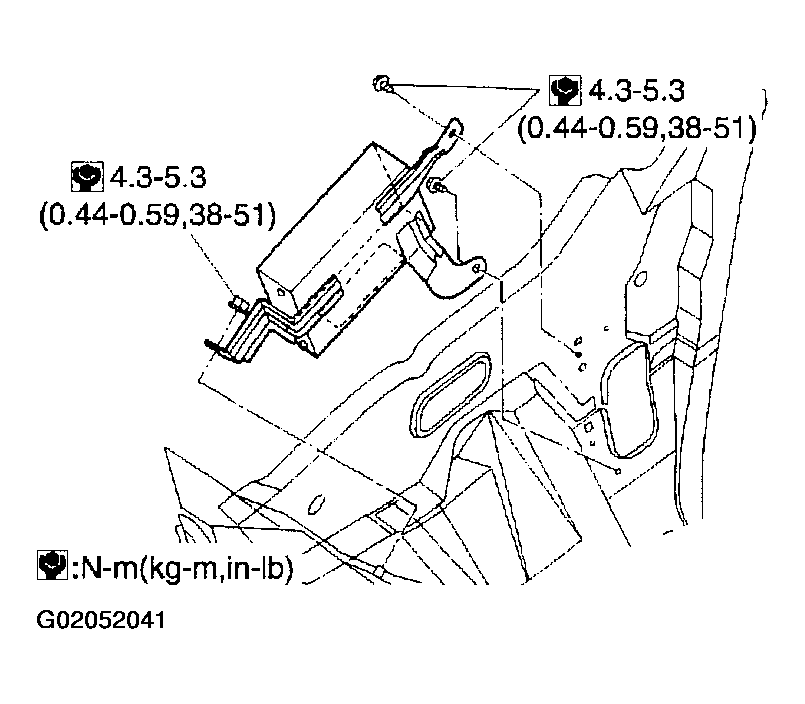

    Fig 1: Removing VDC/TCS/ABS Control Unit
    G02052041Courtesy of NISSAN MOTOR CO., U.S.A.
