Notes
Removal And Installation: Notes

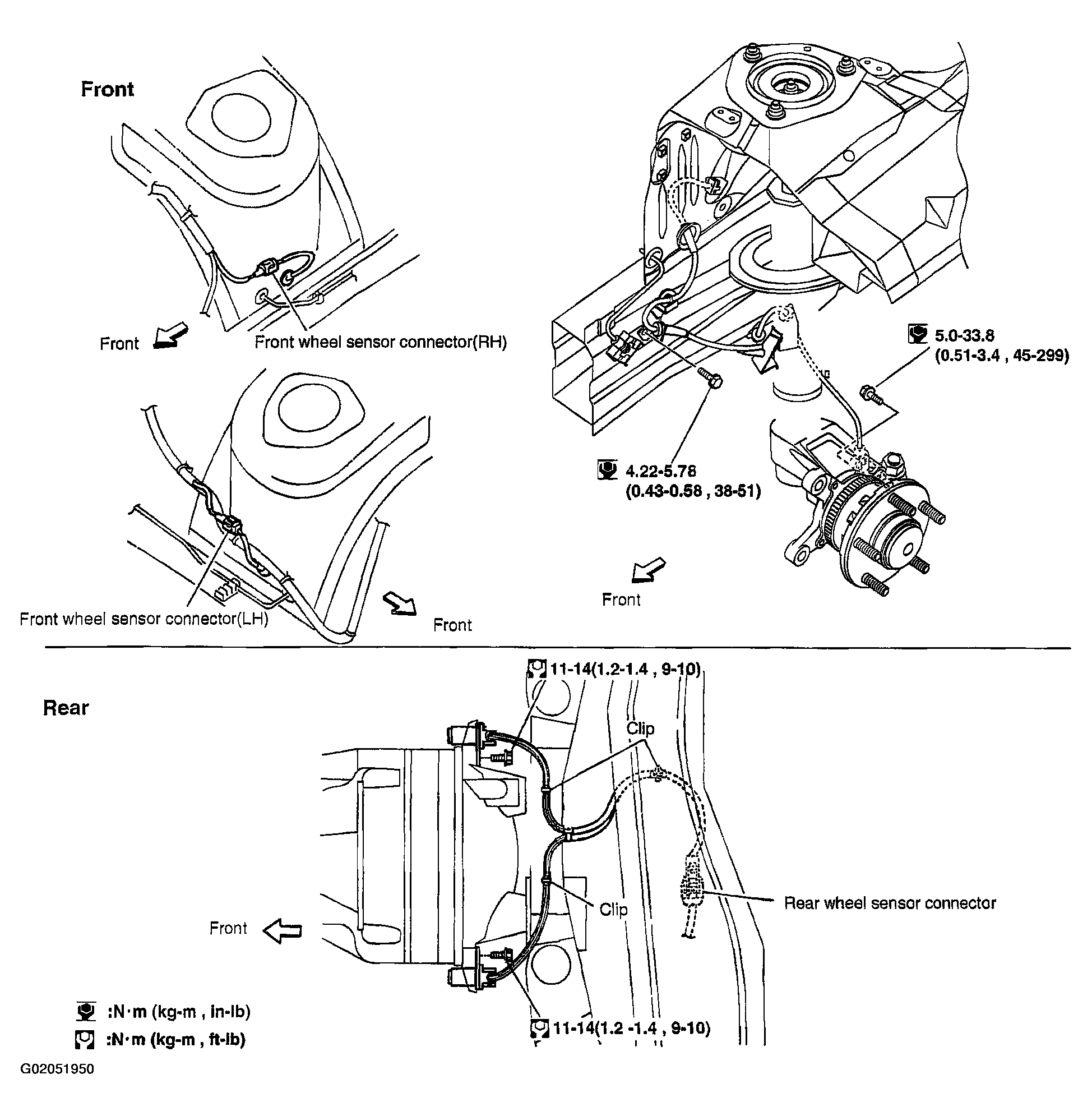

Fig 1: Locating Wheel Sensors
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
