Removal And Installation For Combination Meter

Remove the cluster lid A. Refer to INSTRUMENT PANELS .
Remove the screws (4), and disconnect connectors.

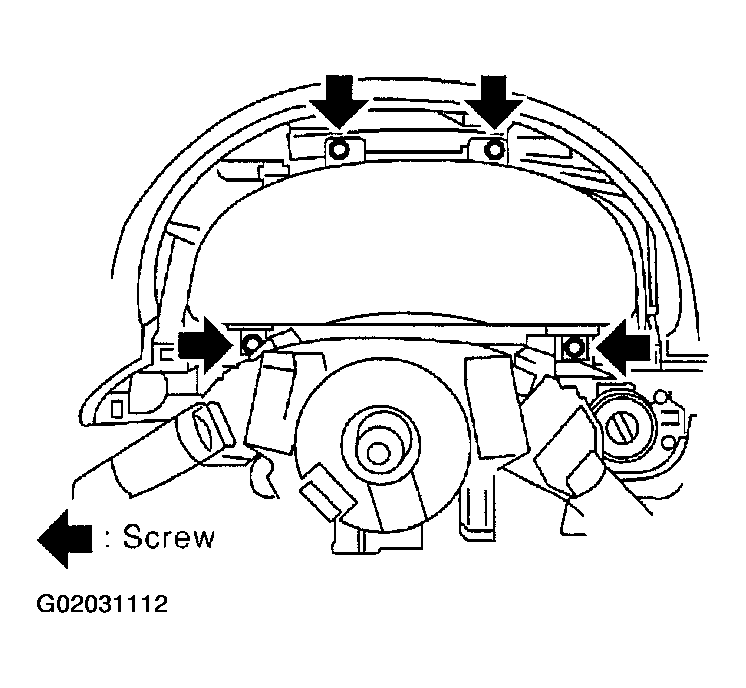

Fig 1: Removal & Installation (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Rotating the combination meter so that the left-side is in front, turn it until the meter face comes to the top.
CAUTION: To prevent it from being damaged by interference with the meter bracket, protect the meter with waste rags.

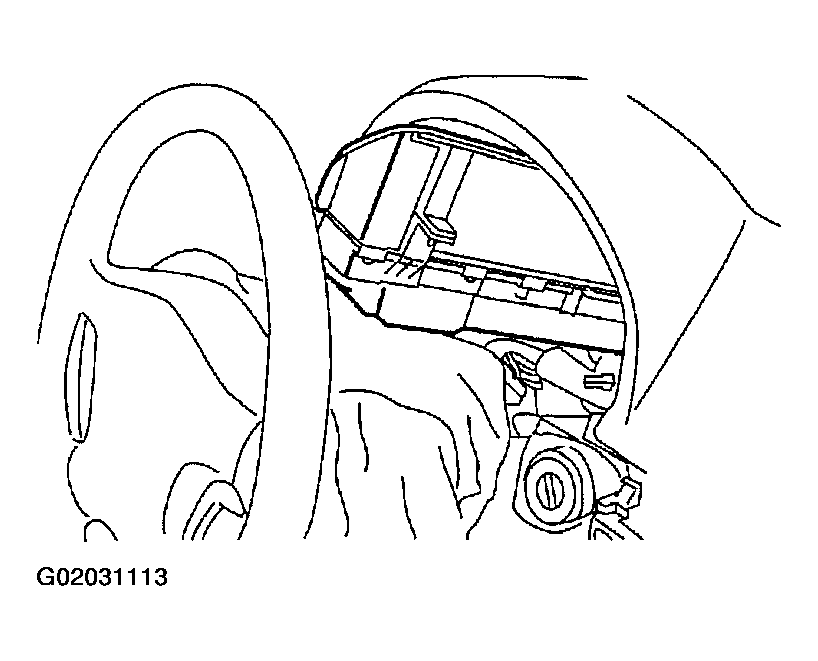

Fig 2: Removal & Installation (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
While pulling combination meter forward, pull it out to the right (combination meter back-side shall be in front).

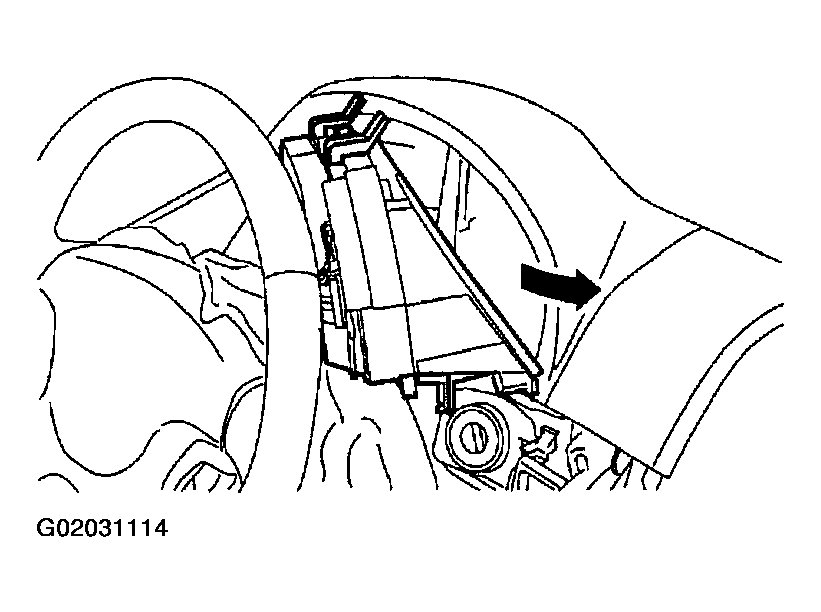

Fig 3: Removal & Installation (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
