Side Distance Guideline Correction

• This mode is used to modify the side distance guidelines if they are dislocated from the rear view monitor image, because of variations of body/camera mounting conditions.

Side distance guideline correction procedure

1. Create a correction line to modify the screen.

   Draw lines on the rearward of the vehicle passing through the following points: 0.2 m (7.87 inch) from both sides of the vehicle, and

   • *1:0.45 m (1.5 feet)
   • *2:0.91m (3.0 feet)
   • *3:2.13m (7.0 feet)
   • *4:3.04 m (10 feet)

     and from the rear end of the bumper

2. Select "REARVIEW" in "Confirmation/Adjustment mode".

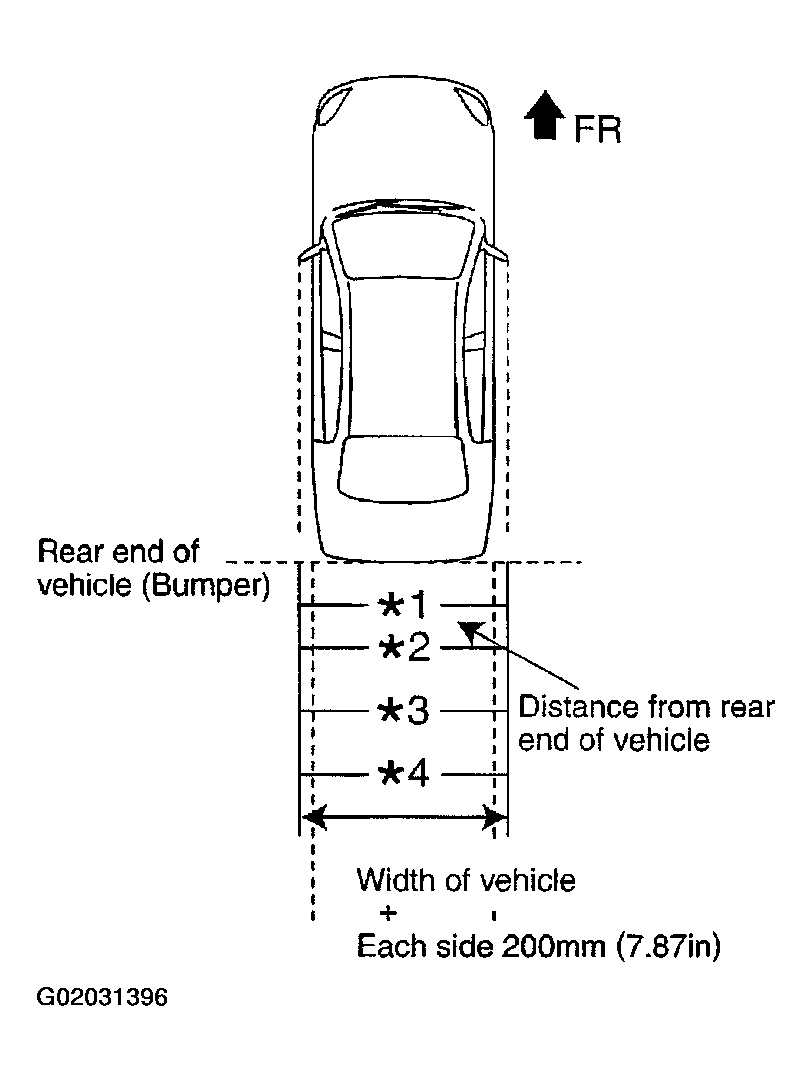

   Fig 1: Setting Side Distance Guideline Correction (1 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Using the joy stick, select the pattern closest to the prepared correction line among the 6 guideline patterns, then press "ENTER" button.
   Fig 2: Setting Side Distance Guideline Correction (2 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Carefully adjust the vertically and horizontally in the range of -8 -8. Align it with the prepared line, and press the ENTER button.
5. The adjustment is completed.
   Fig 3: Setting Side Distance Guideline Correction (3 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.
