Removal And Installation For Voice Activated Control Module

  1. Remove trunk trim. Refer to REMOVAL & INSTALLATION .
  2. Remove voice activated control module.

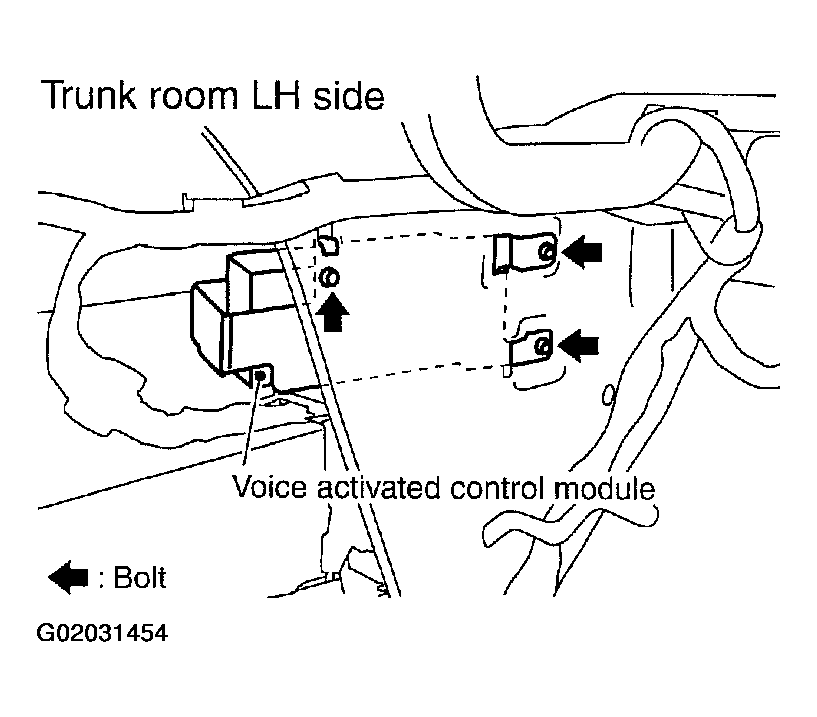

    Fig 1: Removing Installing Voice Activated Control Module
    G02031454Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove bracket from voice activated control module.
    Fig 2: Removing Installing Voice Activated Control Module From Bracket
    G02031455Courtesy of NISSAN MOTOR CO., U.S.A.
