Voice Activated Control System: Schematic

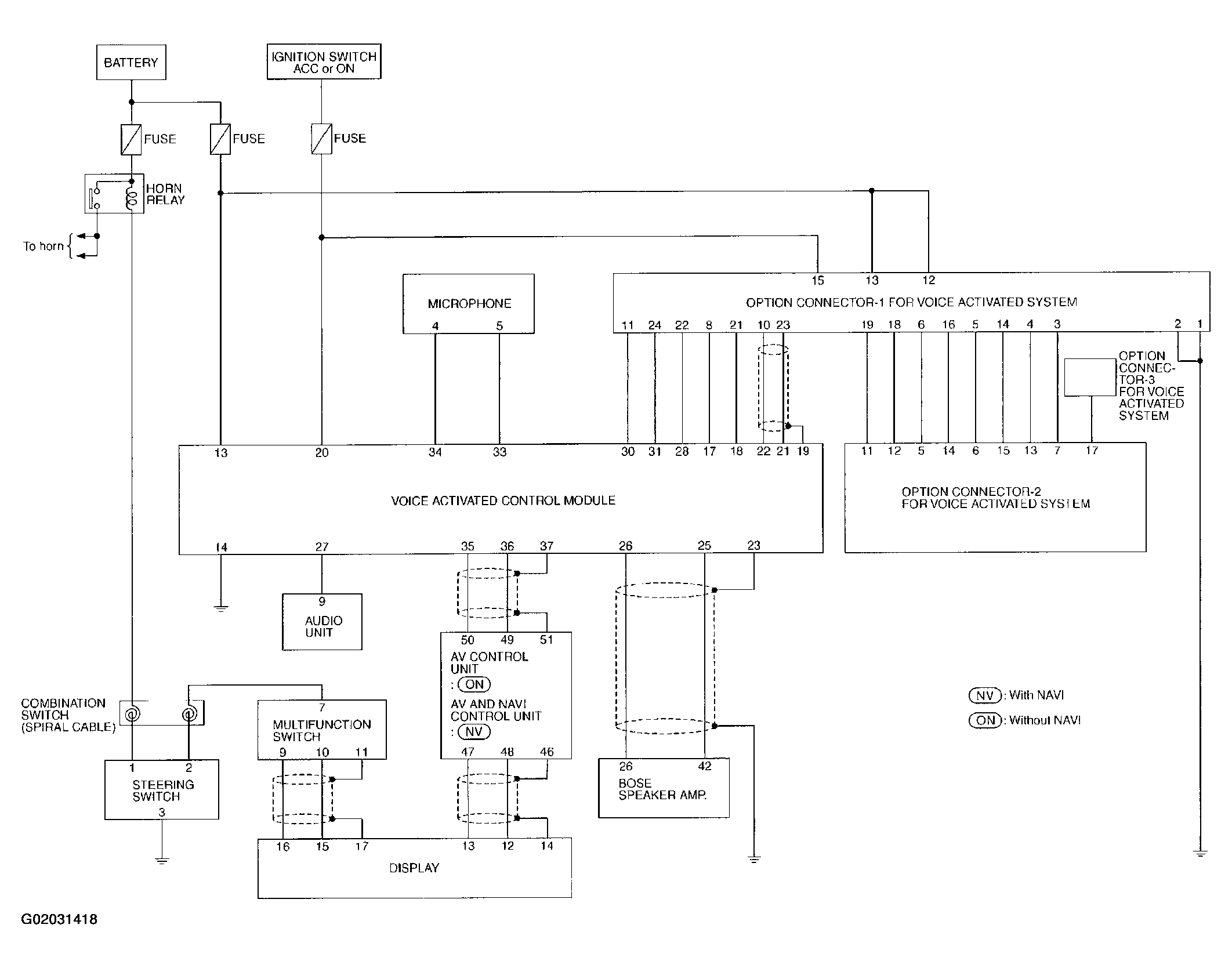

Fig 1: Schematic
G02031418Courtesy of NISSAN MOTOR CO., U.S.A.
