Terminals And Reference Value
›
Terminals And Reference Value For ICC Sensor
Terminals And Reference Value For ICC Sensor

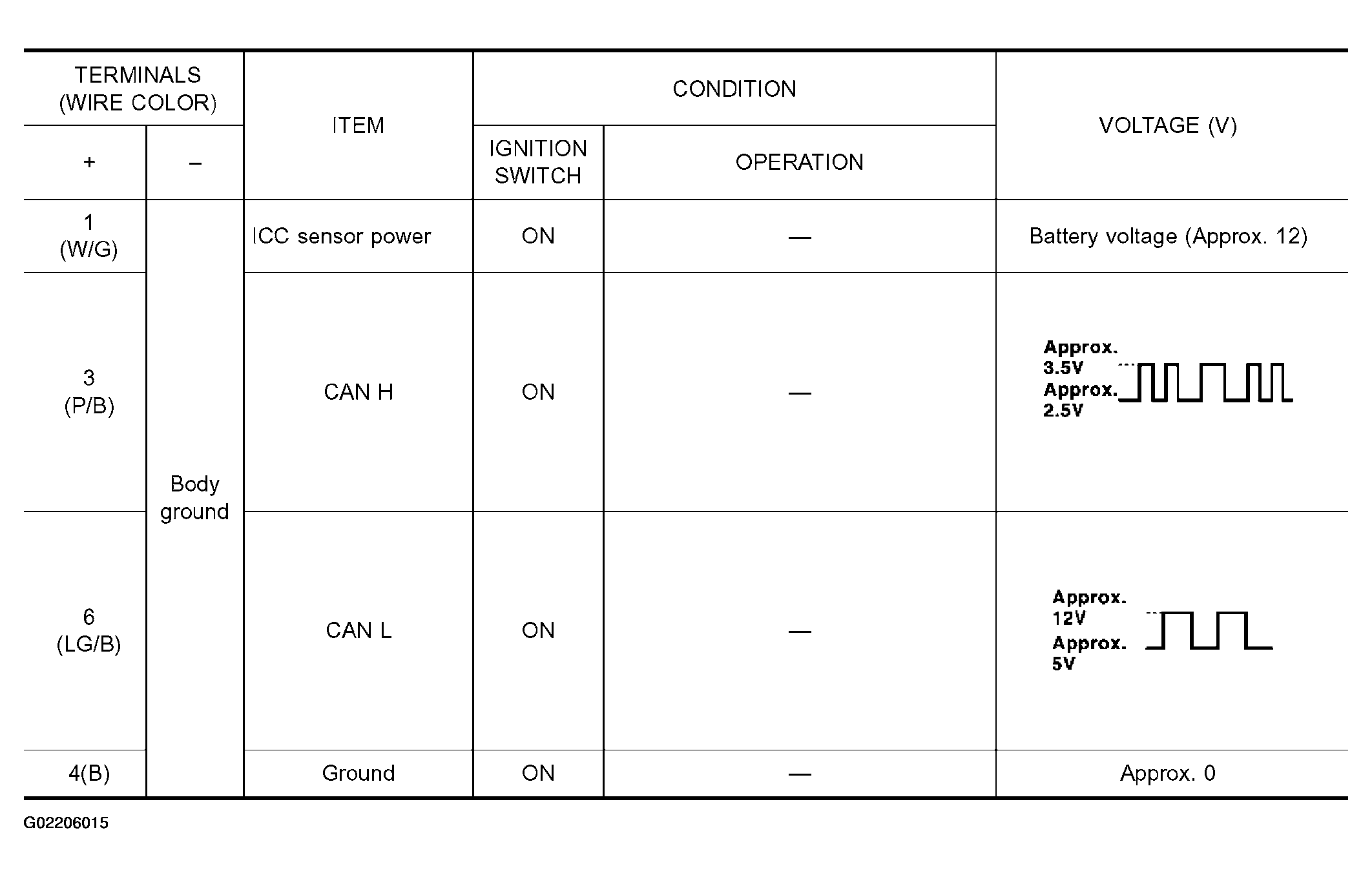

Fig 1: Terminals & Reference Value For ICC Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
