Cylinder Block: Components: Notes

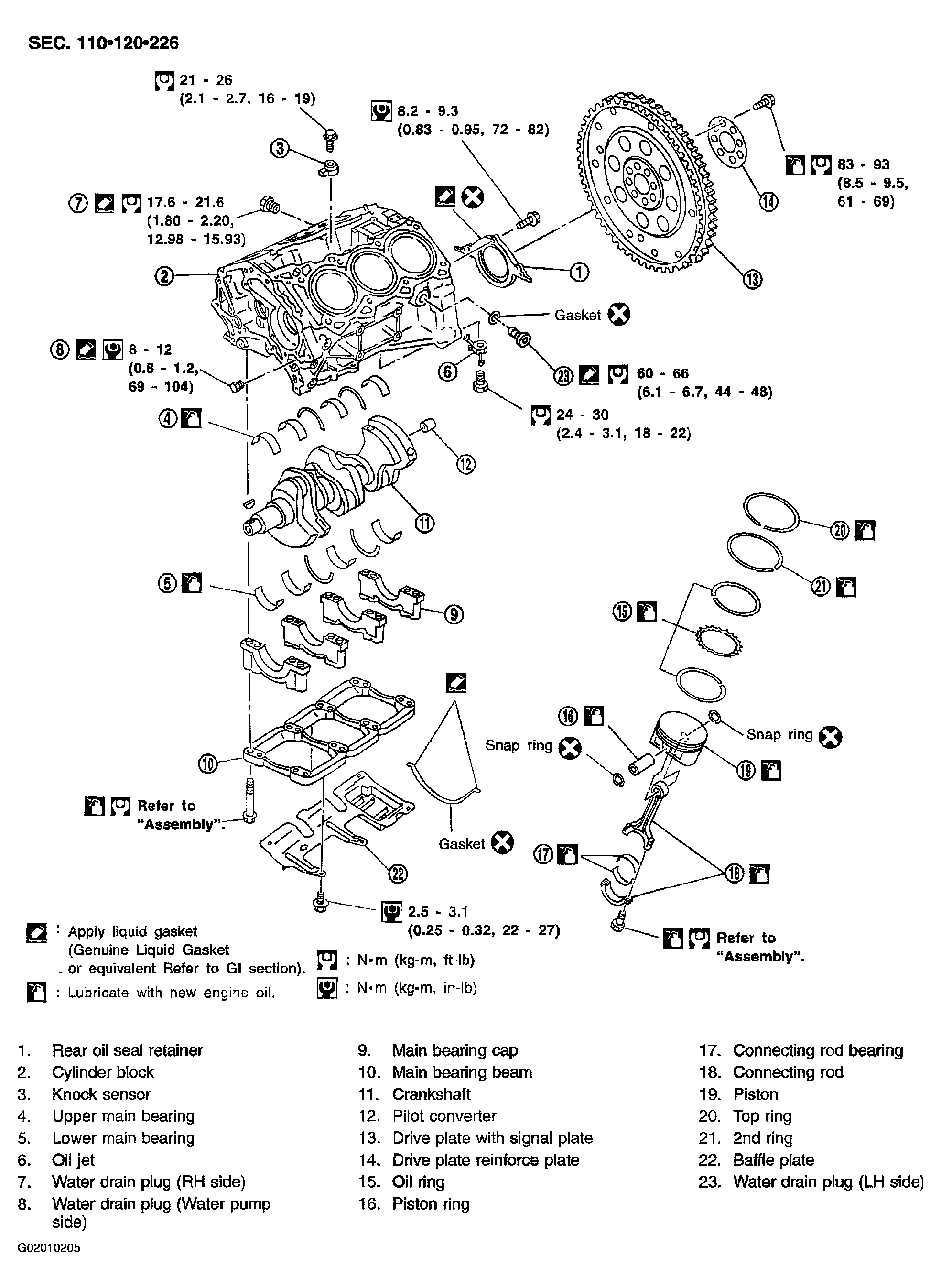

Fig 1: Exploded View Of Cylinder Block Components
G02010205Courtesy of NISSAN MOTOR CO., U.S.A.
