Disassembly and Assembly

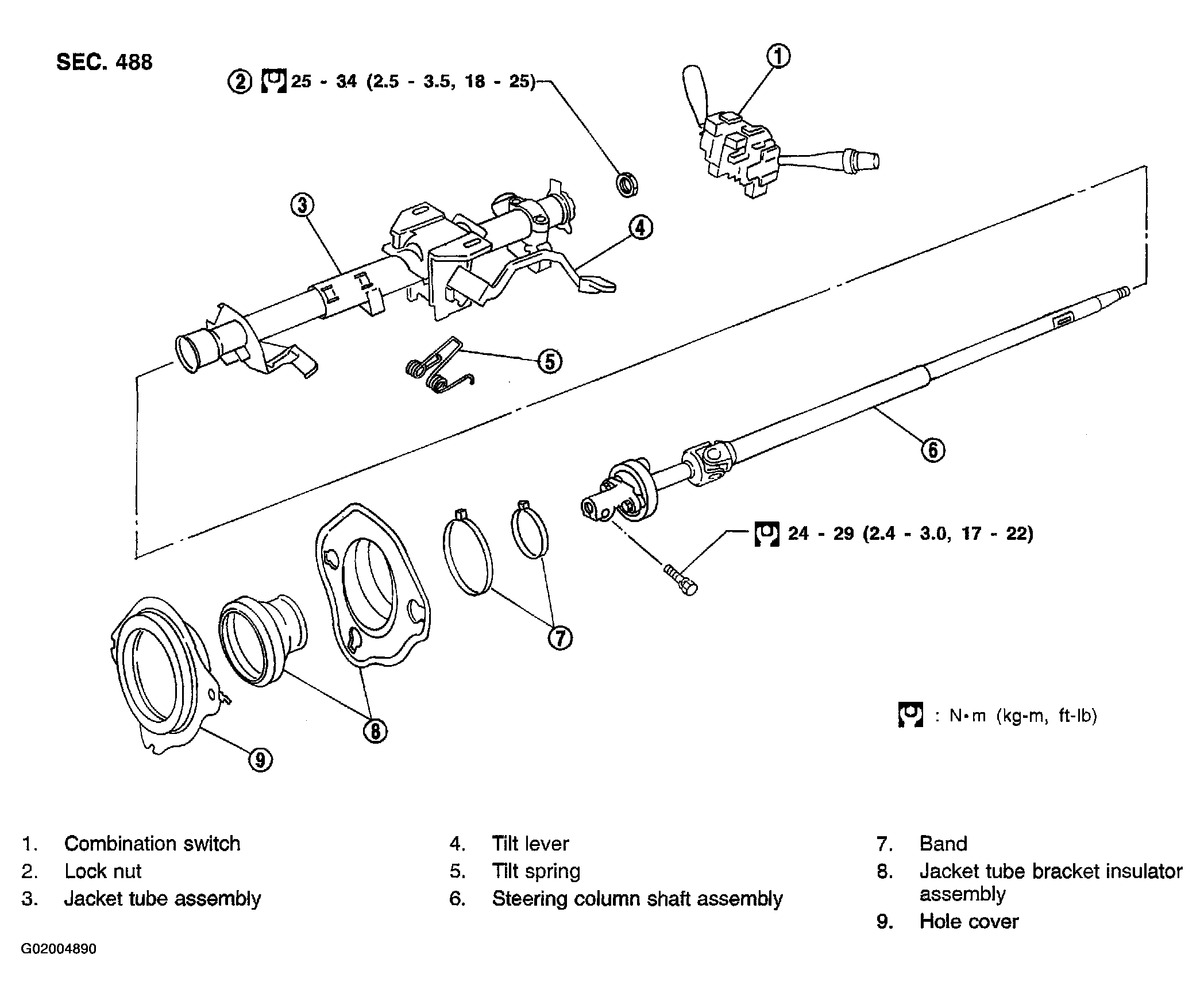

Fig 1: Exploded View Of Steering Column Shaft Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

When disassembling and assembling, unlock steering lock with key.
Install lock nut on steering column shaft and tighten the nut to specification.
1. 25 - 34 N.m (2.5 - 3.5 kg-m, 18 - 25 ft-lb)
Fig 2: Installing Lock Nut On Steering Column Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Steering lock
1. Break self-shear type screws with a drill or other appropriate tool.
2. Install new self-shear type screws and then cut off self-shear type screw heads.
Fig 3: Installing Self-Shear Type Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
