Control Valve Lower Body: Disassembly

Remove valves at parallel pins.

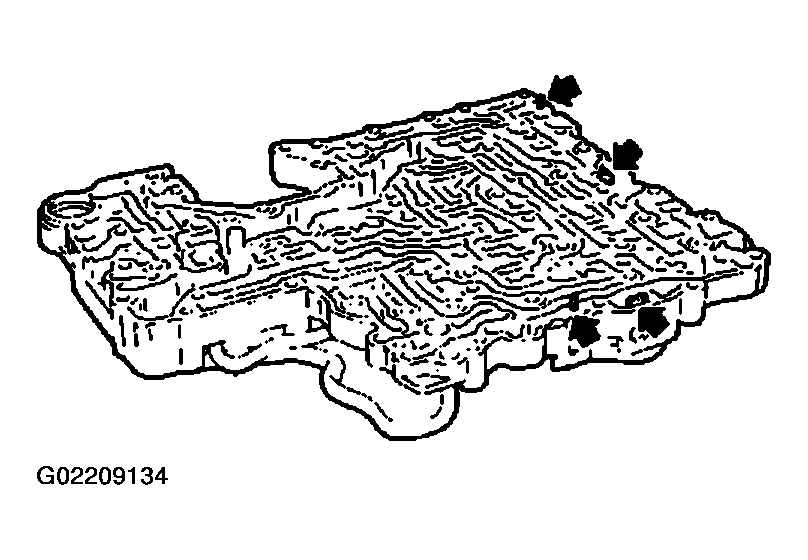

Fig 1: Removing Valves At Parallel Pins
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove valves at retainer plates.
For removal procedures, refer to "DISASSEMBLY" of Control Valve Upper Body.
