Home › Infiniti › 2002 › QX4 RWD › Repair and Diagnosis › Brakes › Anti-Lock/Traction Control › Preparation › Front Disc Brake › Components

Front Disc Brake: Components

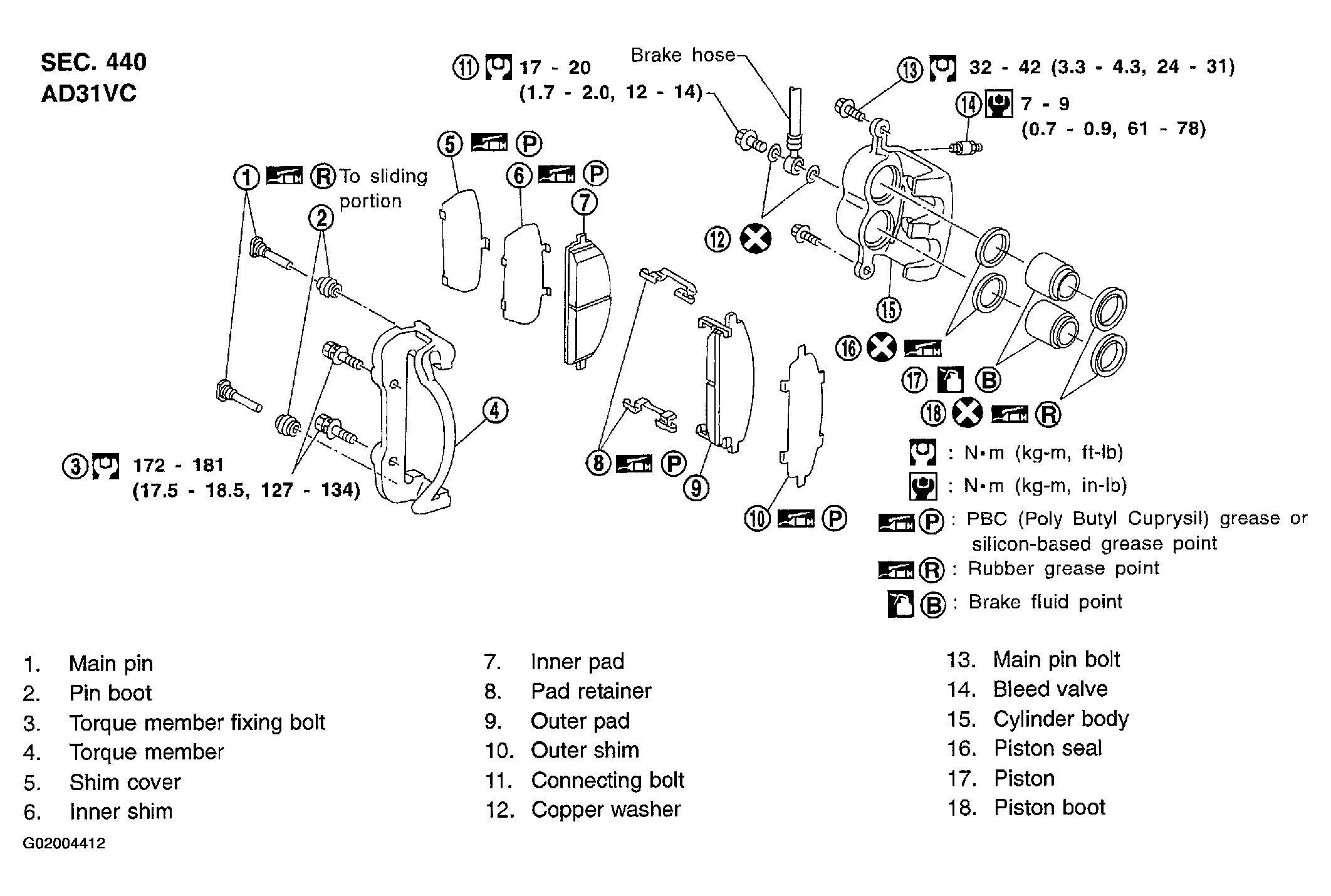

Fig 1: Exploded View Of Front Disc Brake And Torque Specification
G02004412Courtesy of NISSAN MOTOR CO., U.S.A.
