Preparation
›
On Board Diagnostic System Description
›
Active Test Procedure
›
Data Monitor Mode
Data Monitor Mode

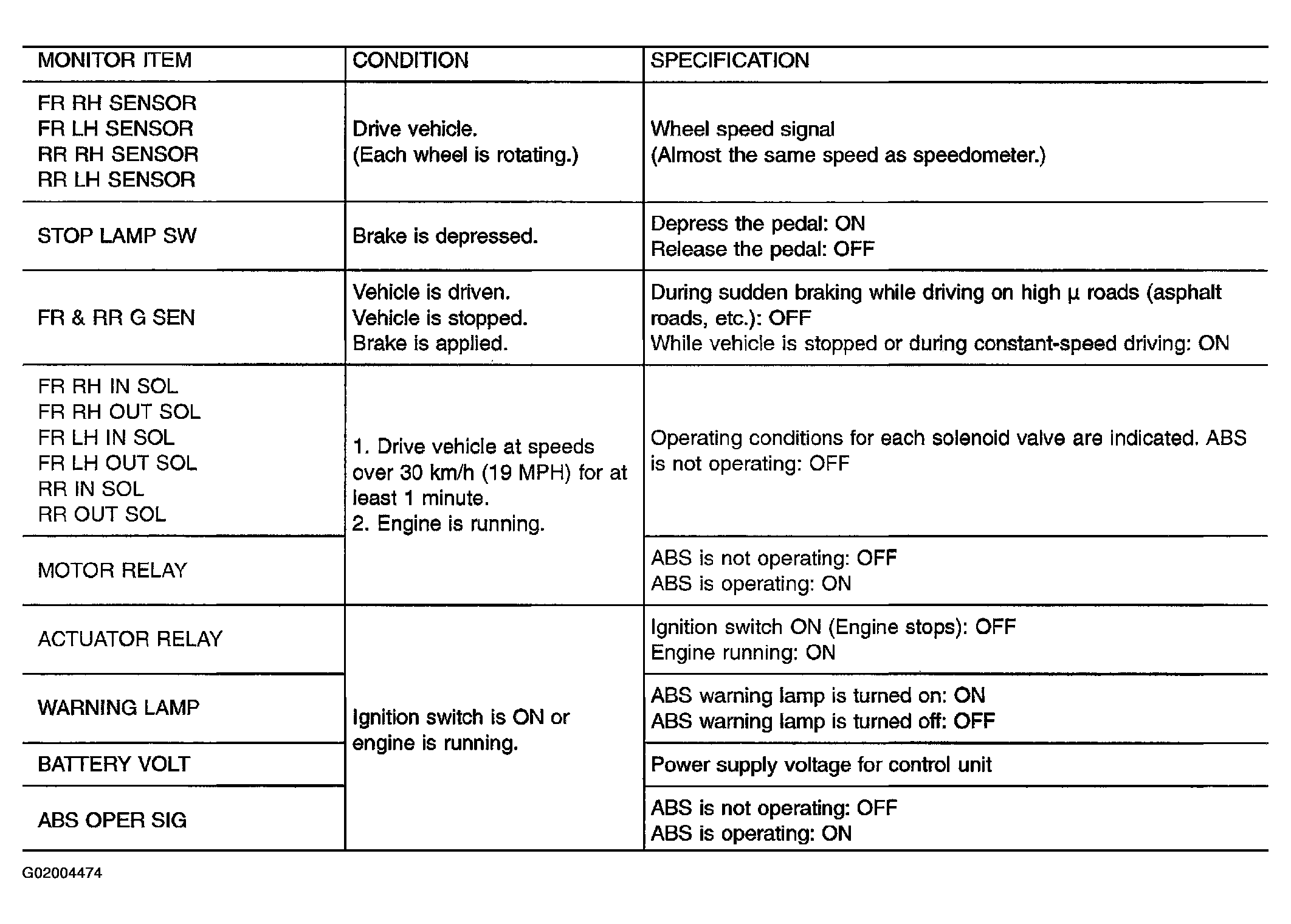

Fig 1: Data Monitor Mode Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
