Parking Brake Control: Components

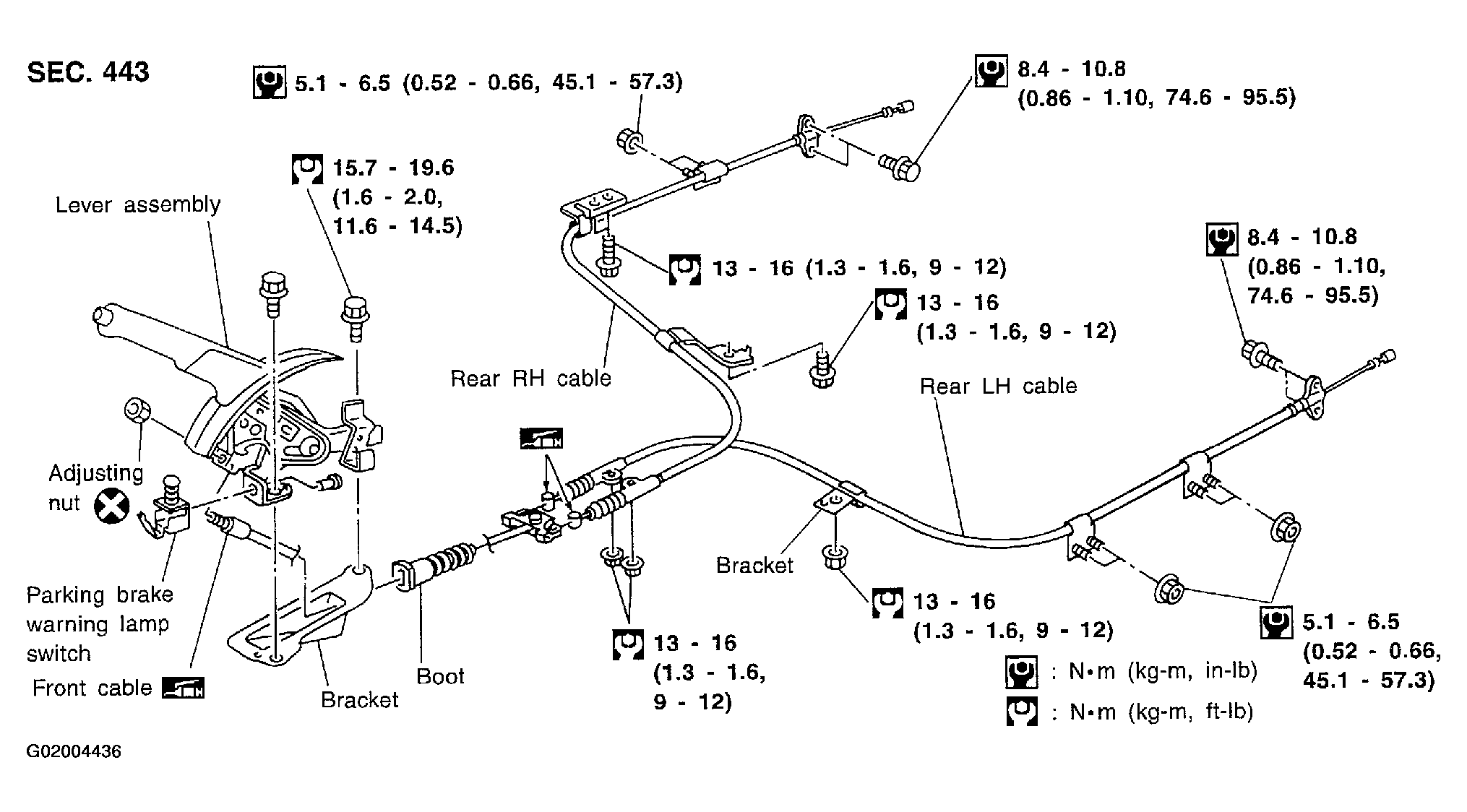

Fig 1: Exploded View Of Parking Brake Control And Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
