Lubrication Circuit

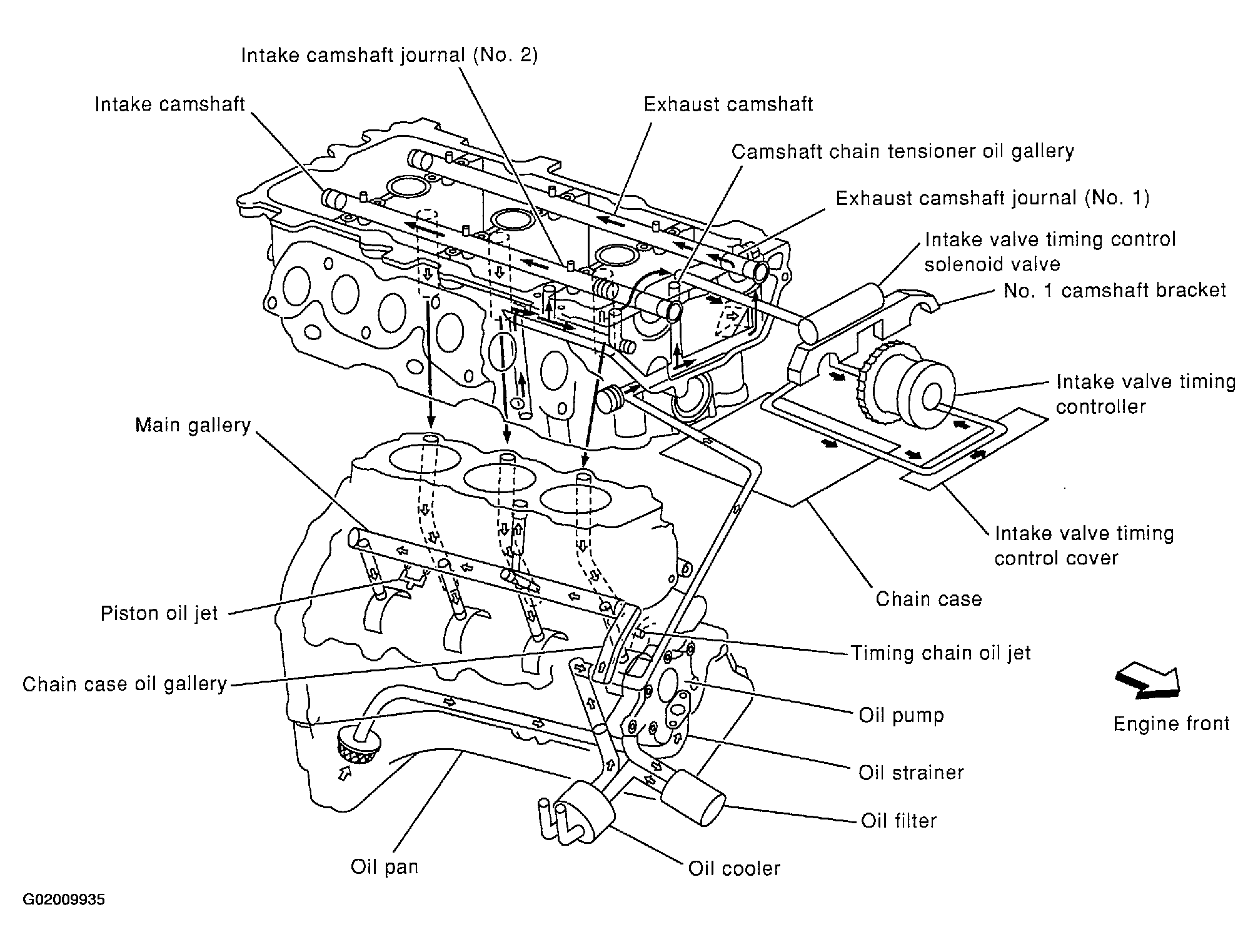

Fig 1: Engine Lubrication Circuit
G02009935Courtesy of NISSAN MOTOR CO., U.S.A.

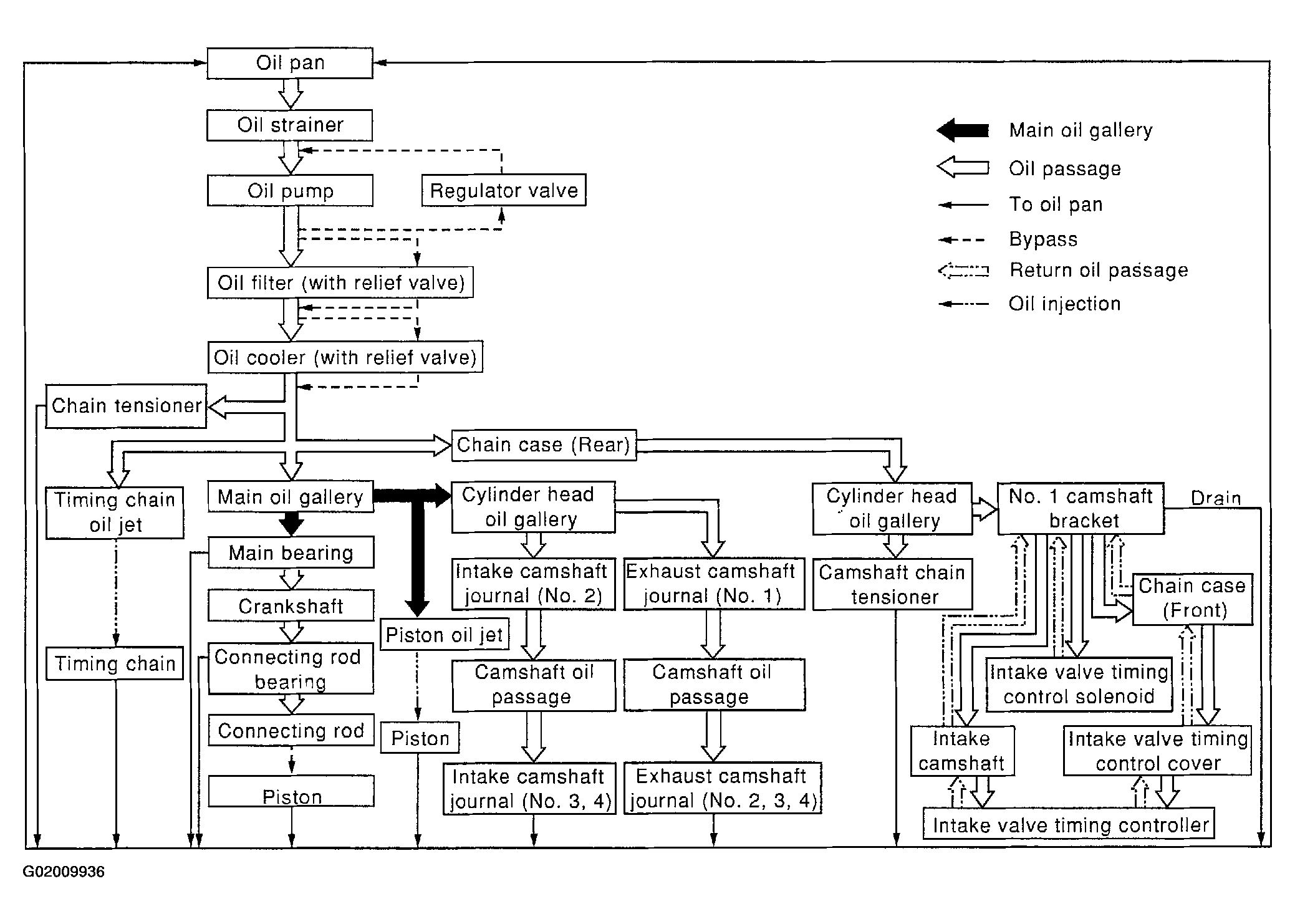

Fig 2: Engine Lubrication System Flow Chart
G02009936Courtesy of NISSAN MOTOR CO., U.S.A.
