Engine Controls Self-Diagnostics - Pathfinder & QX4
›
Connector Identification
›
Engine Compartment Harness
Engine Compartment Harness

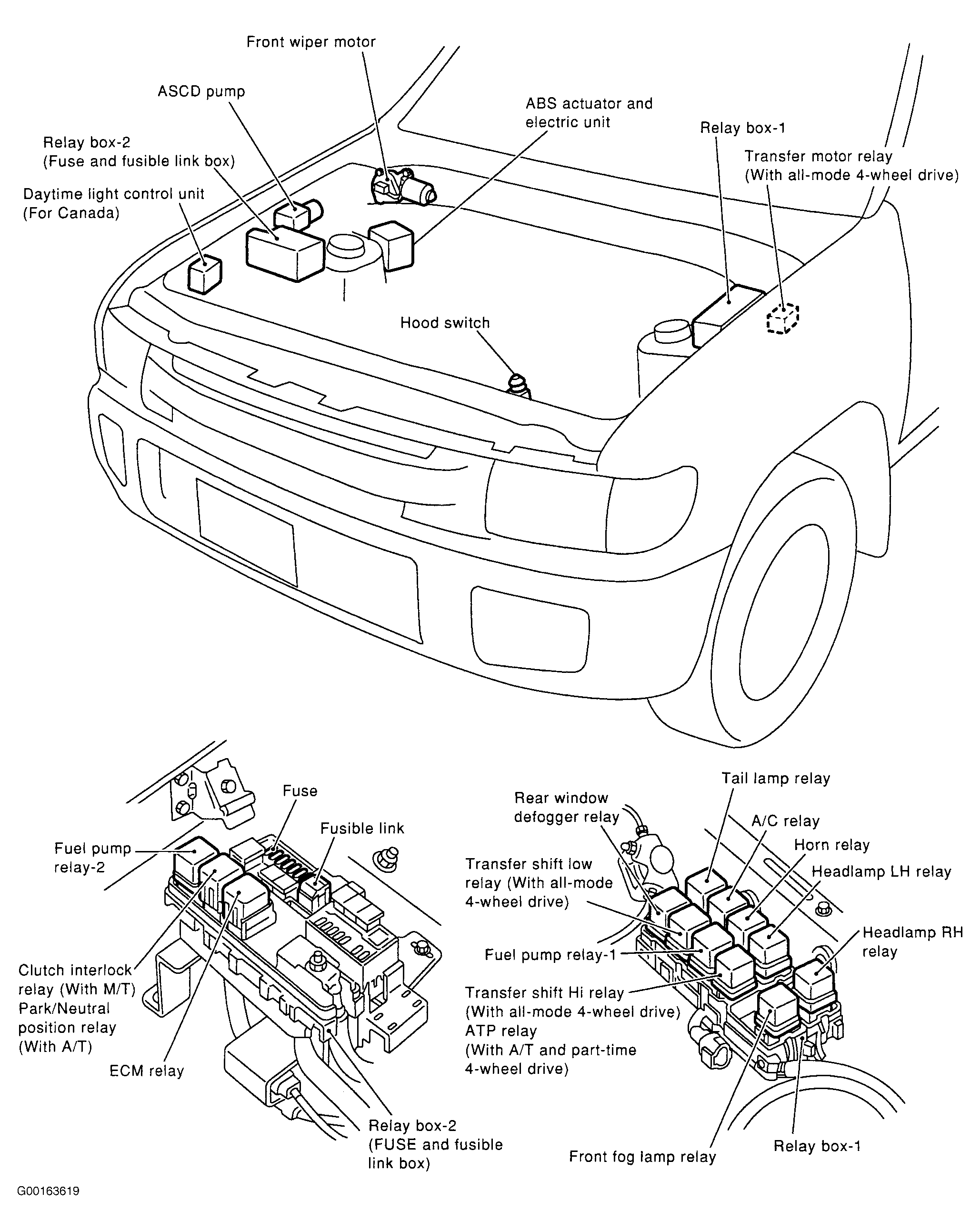

Fig 1: Identifying Underhood Fuse & Relay Box Components (Pathfinder)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Underhood Fuse & Relay Boxes Components (QX4)
Courtesy of NISSAN MOTOR CO., U.S.A.

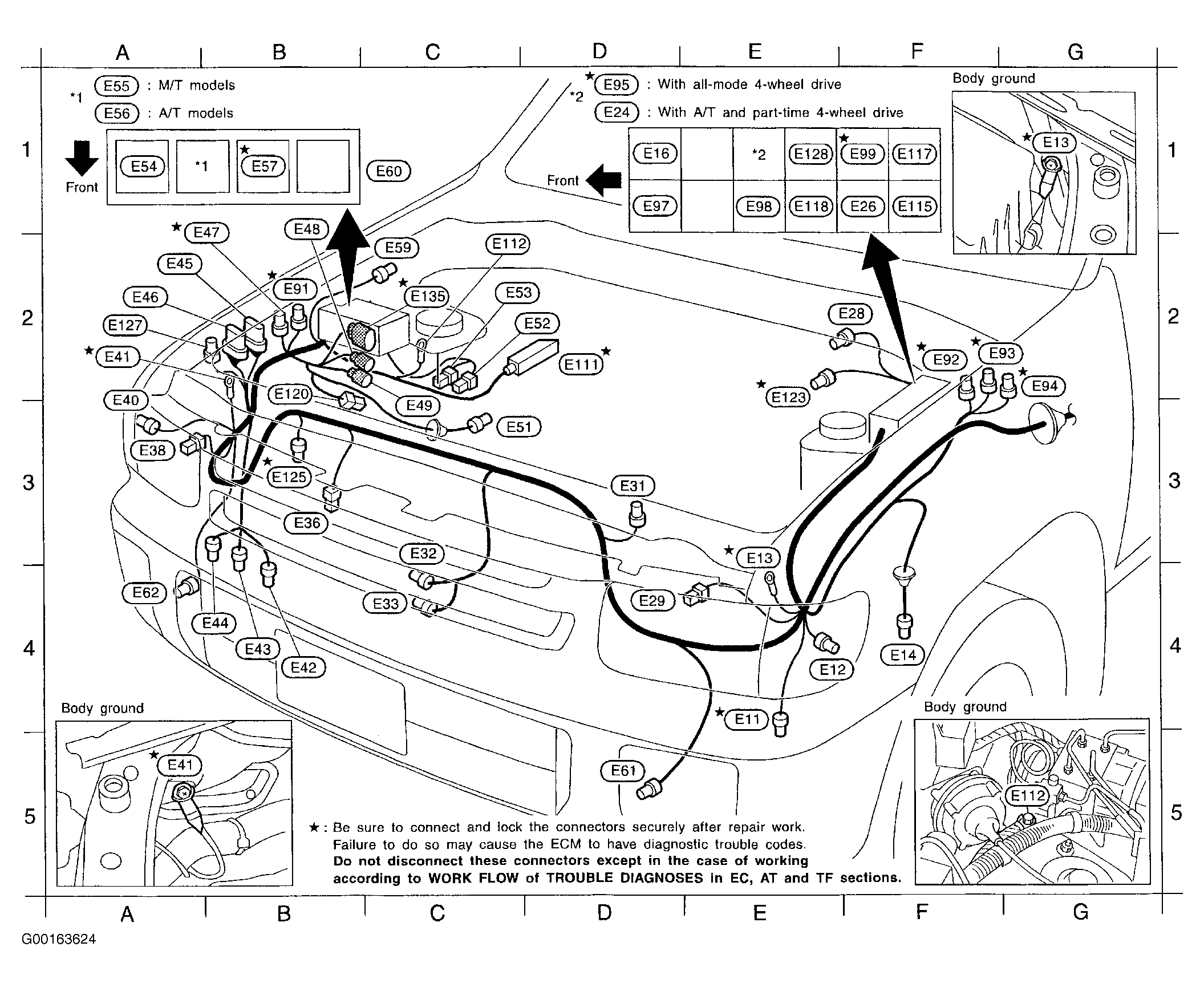

Fig 3: Identifying Engine Room Harness Routing (Pathfinder - 1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

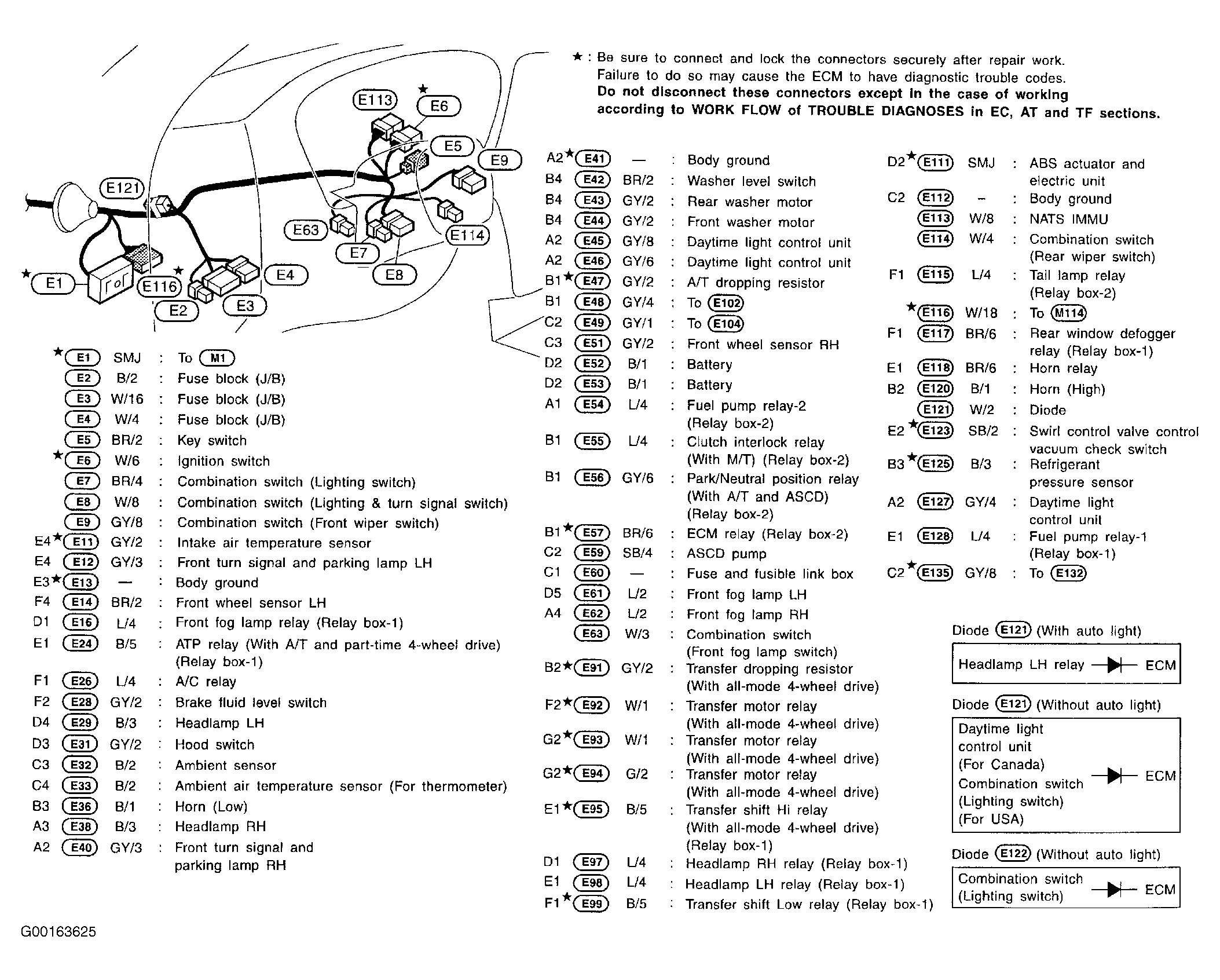

Fig 4: Identifying Engine Room Harness Routing (Pathfinder - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Identifying Engine Room Harness Routing (QX4 - 1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Identifying Engine Room Harness Routing (QX4 - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
