Engine Controls Self-Diagnostics - Pathfinder & QX4
›
Connector Identification
›
Main Harness
Main Harness

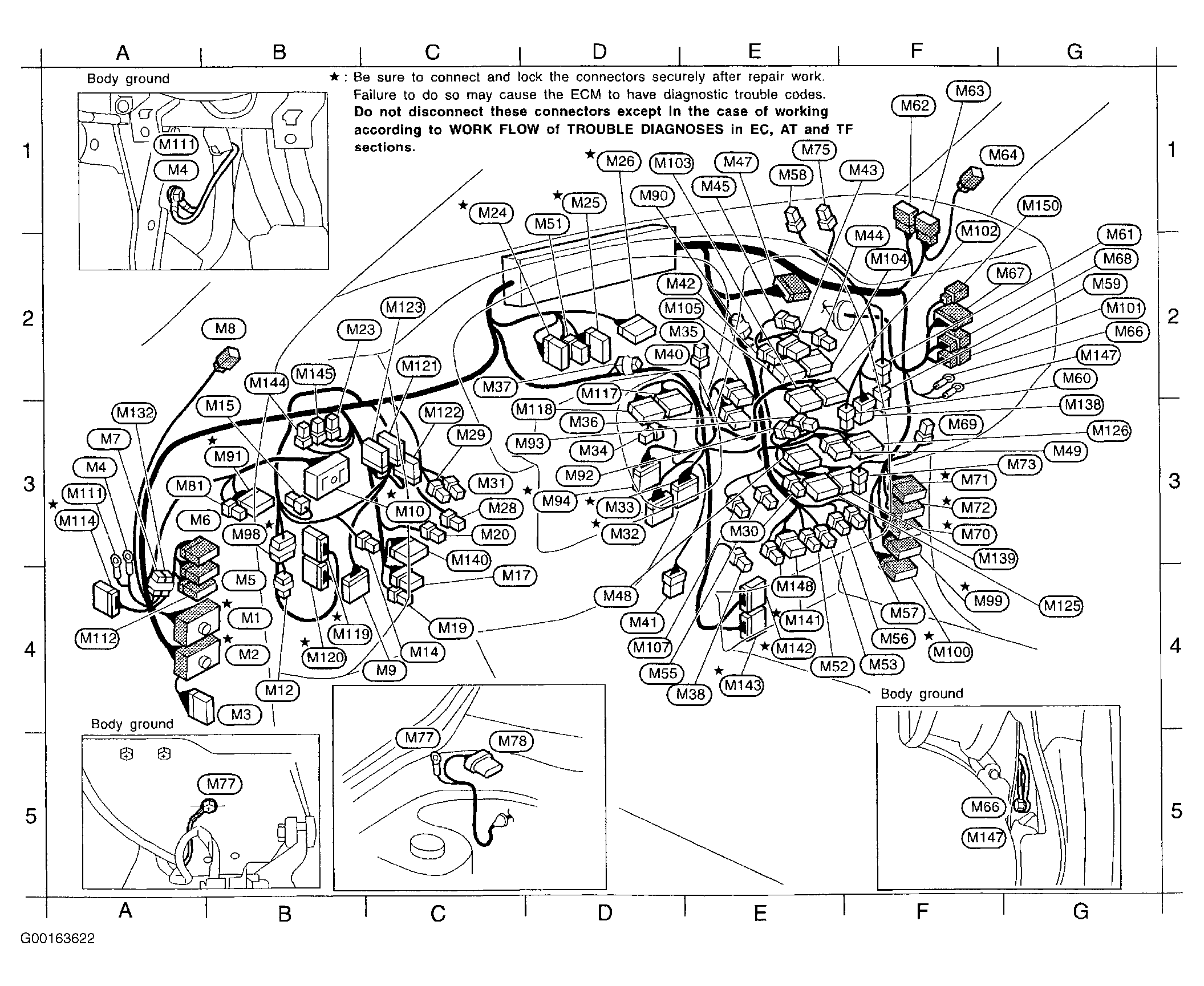

Fig 1: Identifying Main Harness Routing (Pathfinder - 1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

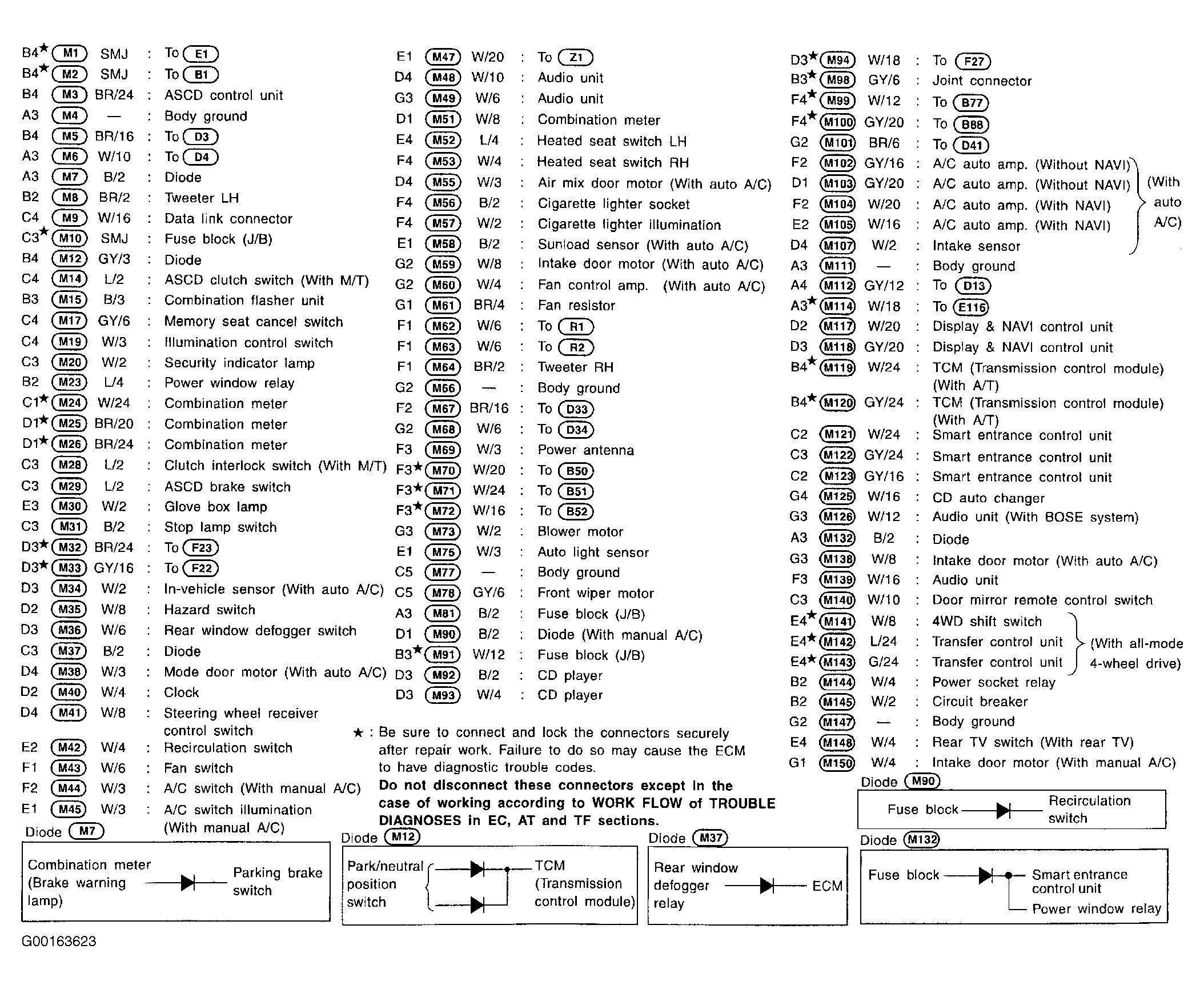

Fig 2: Identifying Main Harness Routing (Pathfinder - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying Main Harness Routing (QX4 - 1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Identifying Main Harness Routing (QX4 - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Identifying Underdash Components (Pathfinder & QX4)
Courtesy of NISSAN MOTOR CO., U.S.A.

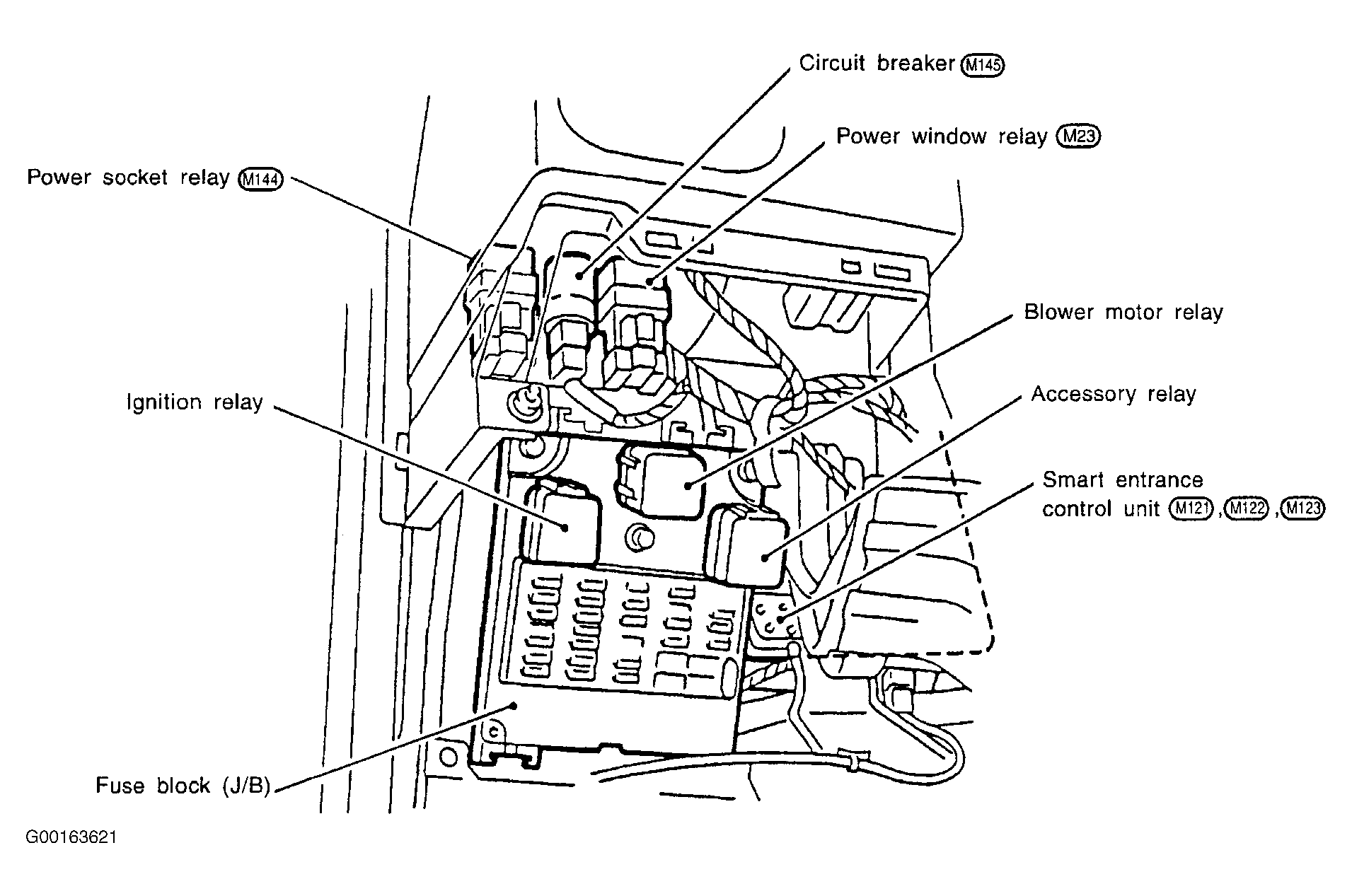

Fig 6: Identifying Underdash Fuse & Relay Box Components (Pathfinder)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
