Navigation System
›
Schematic - COMM -
Schematic - COMM -

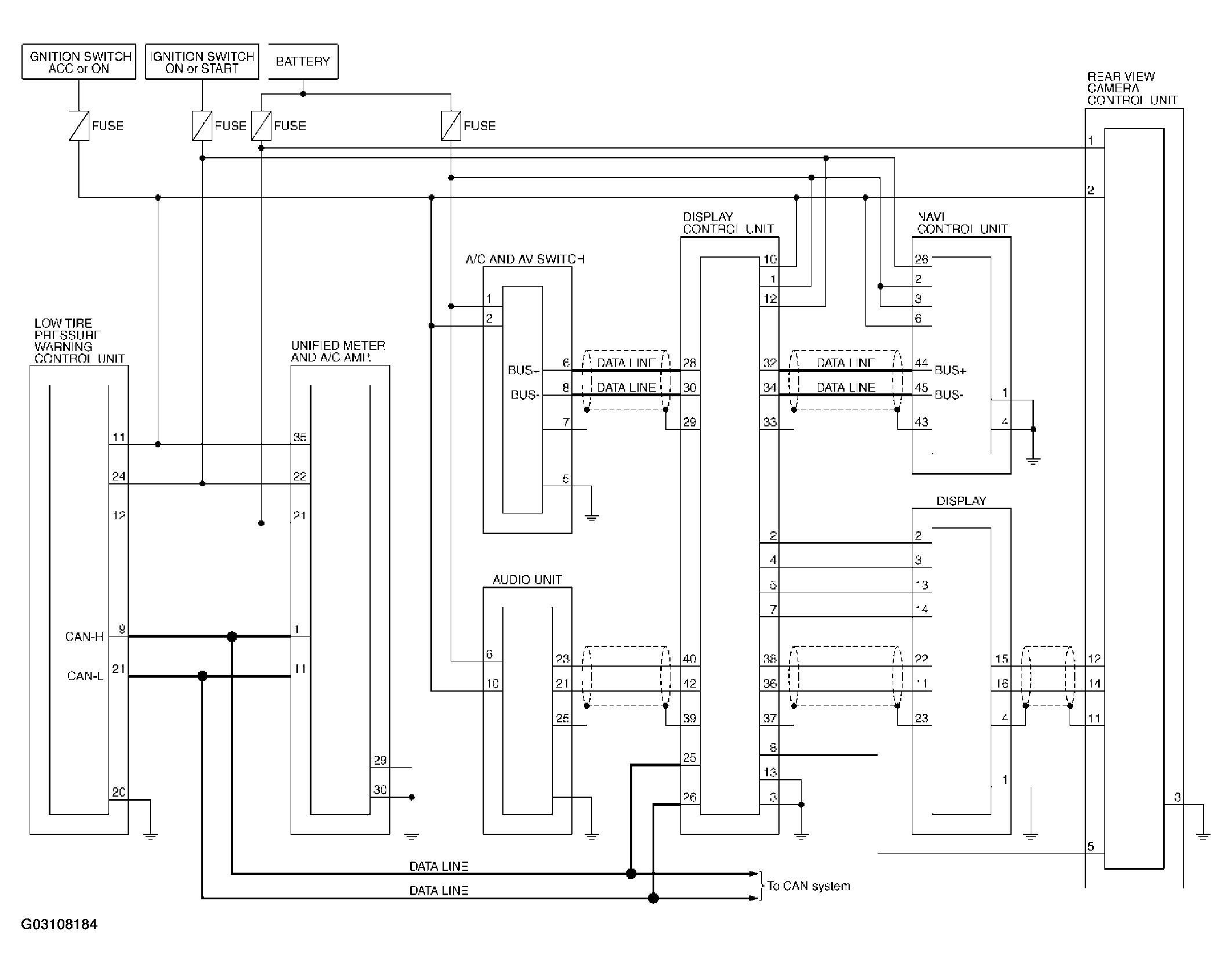

Fig 1: COMM - Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
