Diagnostic Procedure 1
For diagnostic procedure 1, see
Fig 1
.

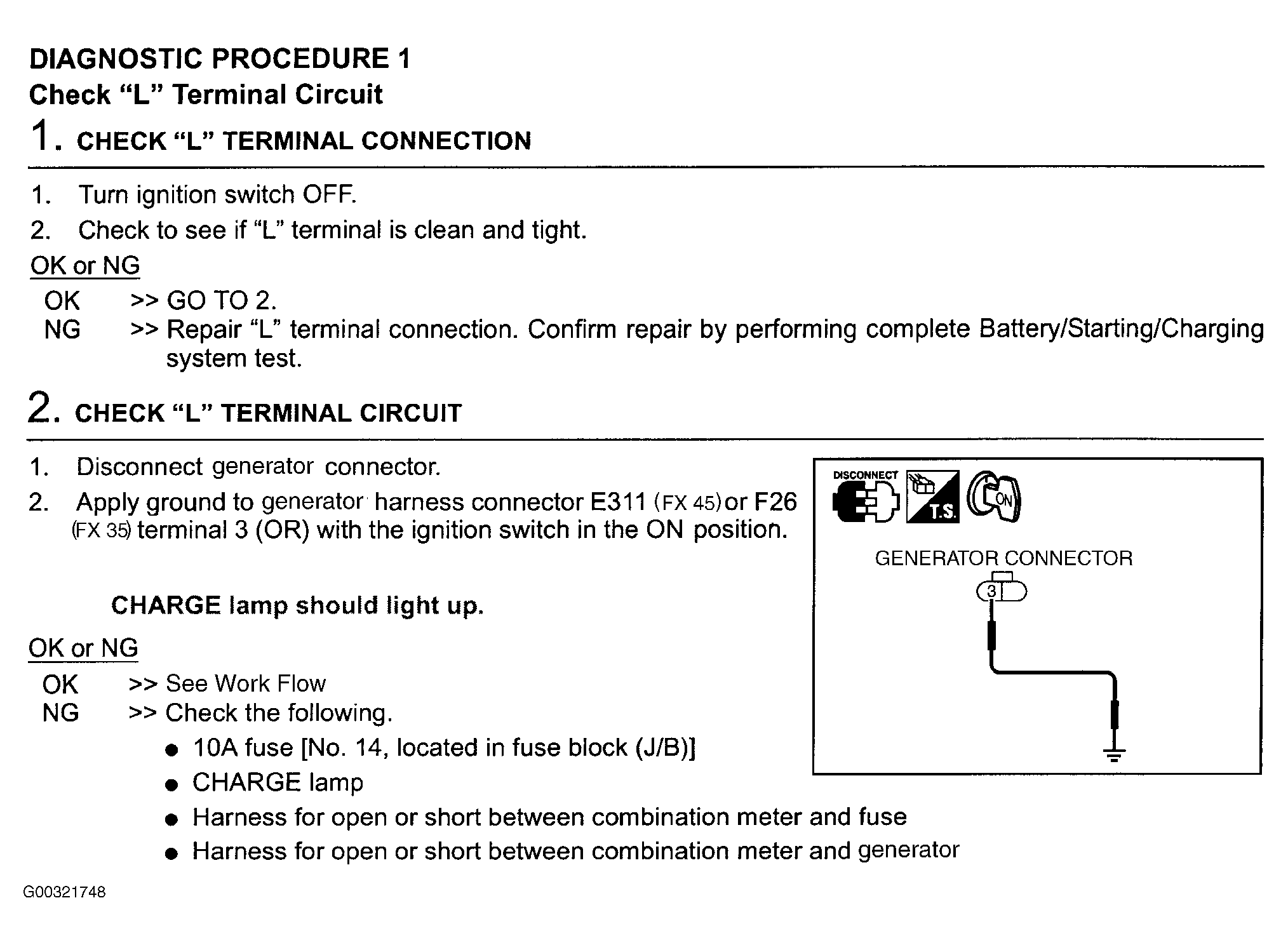

Fig 1: Diagnostic Procedure 1
Courtesy of NISSAN MOTOR CO., U.S.A.
