Diagnostic Procedure 5
Diagnostic Procedure 5
Diagnostic procedure 5, see
Fig 1
.

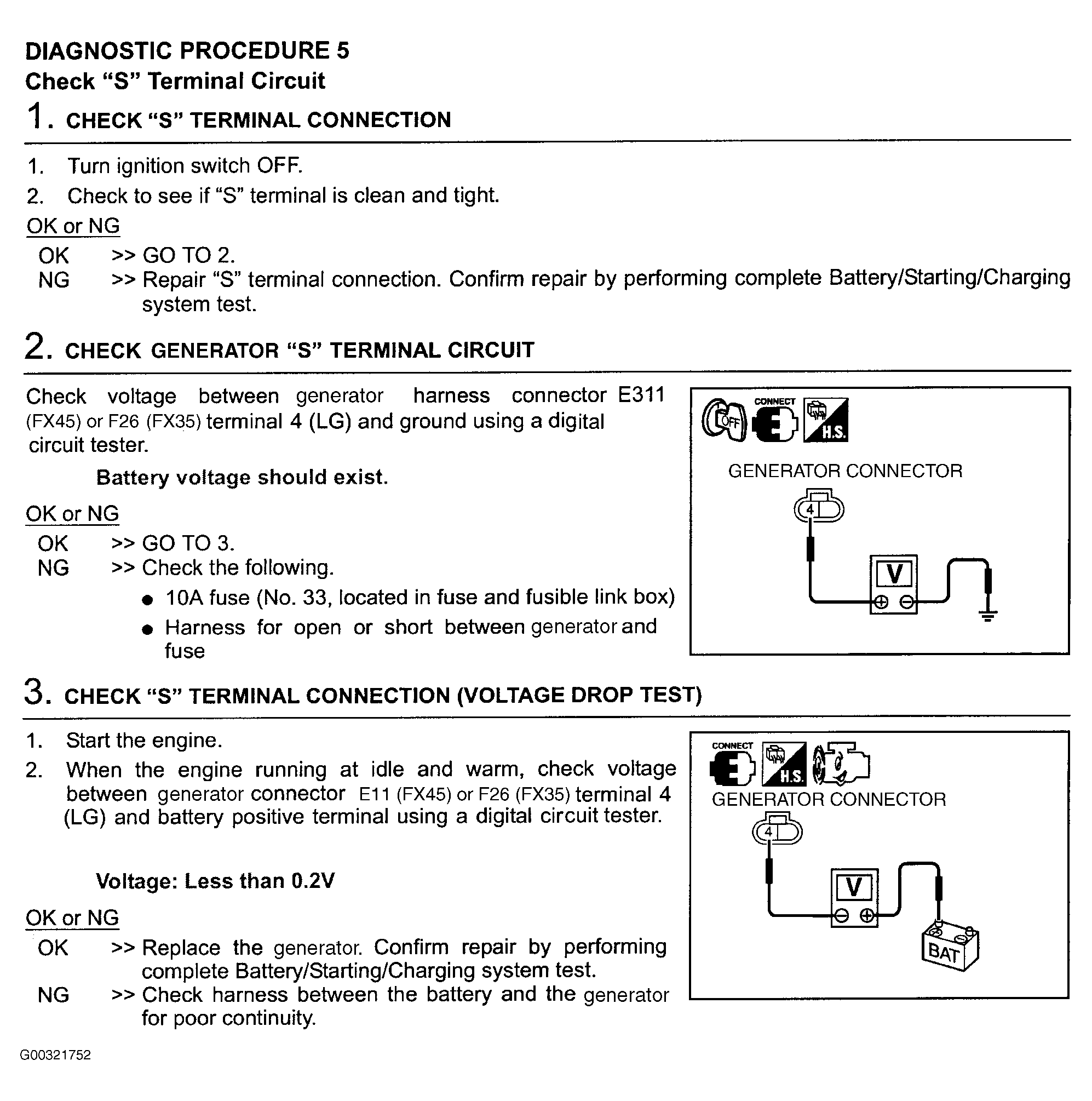

Fig 1: Diagnostic Procedure 5
Courtesy of NISSAN MOTOR CO., U.S.A.
