Data Monitor

Operation procedure

1. Touch "BUZZER" on "SELECT TEST ITEM" screen.
2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
3. Touch "ALL SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.
   Fig 1: Identifying All Signals Data Monitor

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Touch "START".
5. If "SELECTION FROM MENU" is selected, touch the desired monitor item. If "ALL SIGNALS" is selected, all items required to control are monitored.
6. During monitoring, touching "RECORD" can start recording the monitored item status.

   Data monitor item

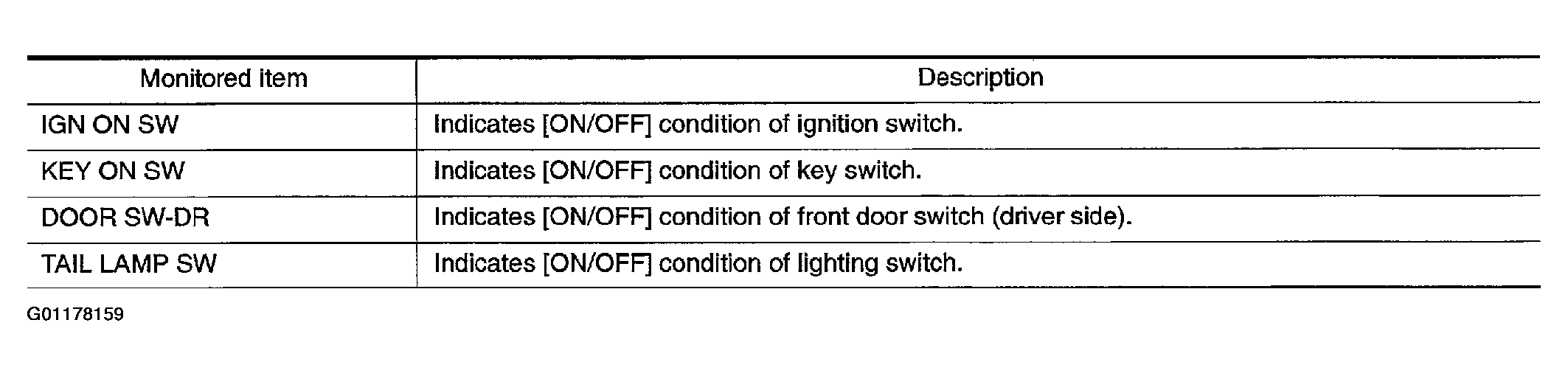

   Fig 2: Identifying Monitored Items

   Courtesy of NISSAN MOTOR CO., U.S.A.
