DTC Confirmation Procedure

For DTC P0011 & P0021 confirmation procedure, see Fig 1.

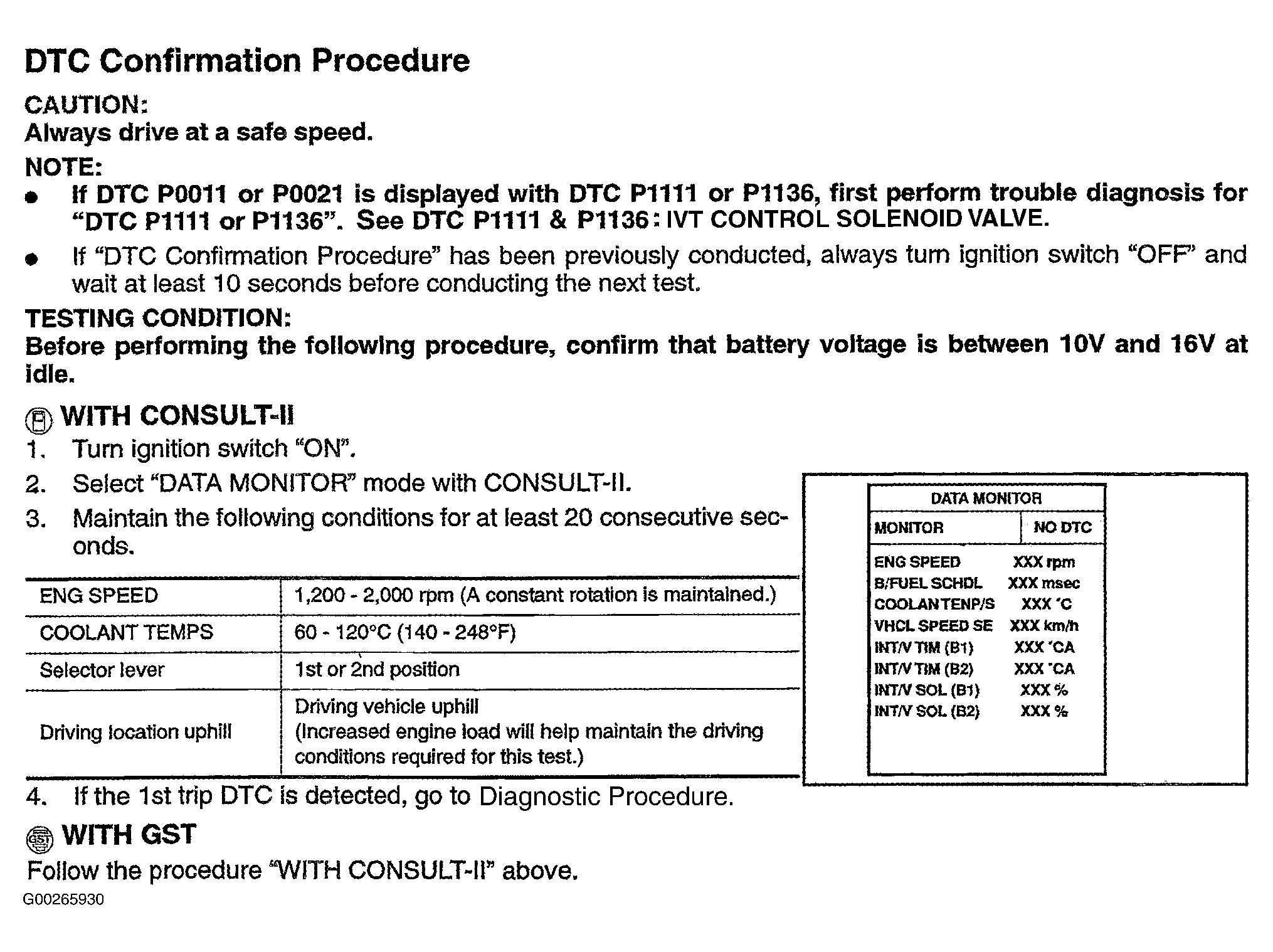

Fig 1: DTCs P0011 & P0021 Confirmation Procedure

G00265930

Courtesy of NISSAN MOTOR CO., U.S.A.
