Data Monitor Mode Reference Values

For mass airflow circuit specification data, see Fig 1.

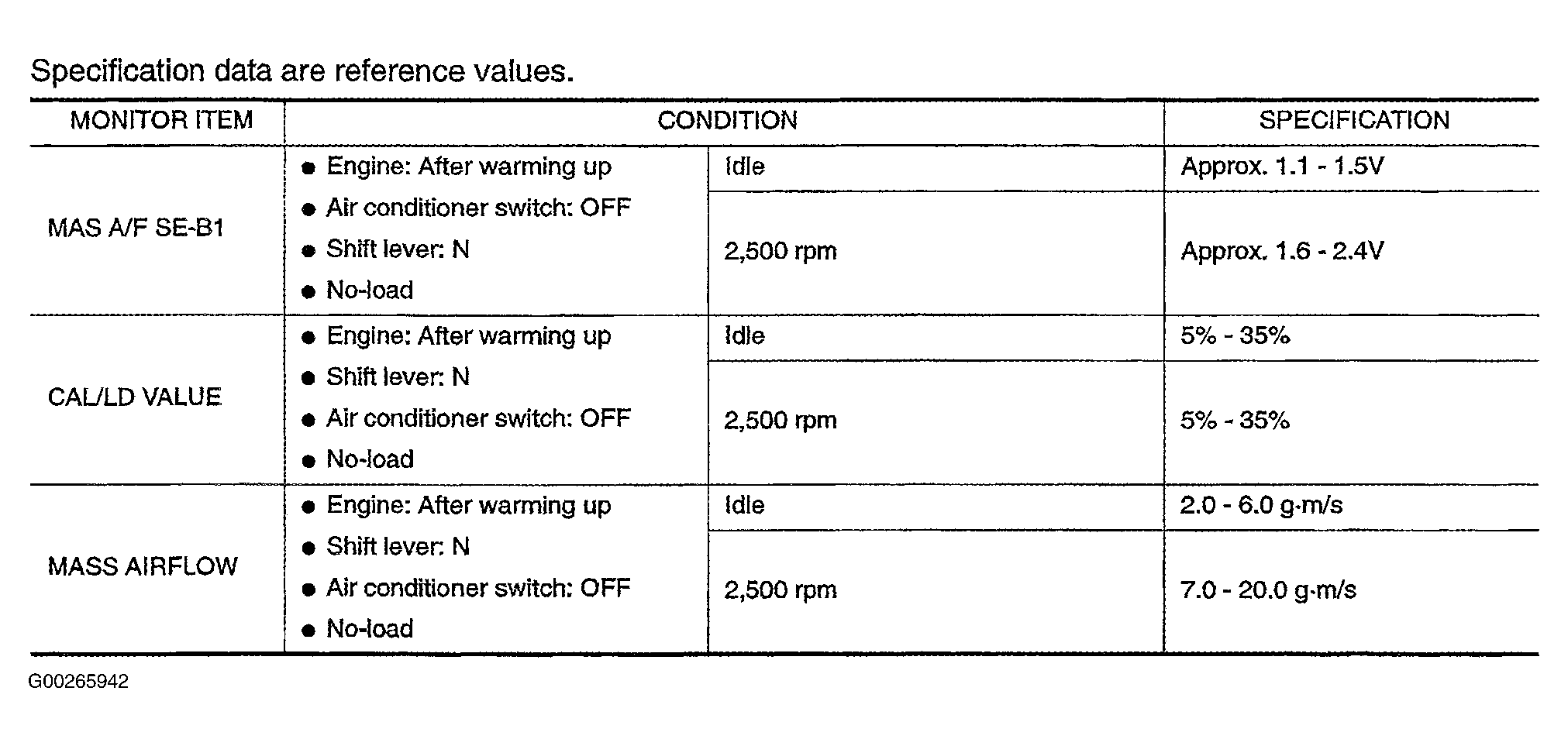

Fig 1: Mass Airflow Circuit Specification Data
G00265942Courtesy of NISSAN MOTOR CO., U.S.A.
