Component Inspection

For Fuel Tank Temperature (FTT) sensor testing, see Fig 1.

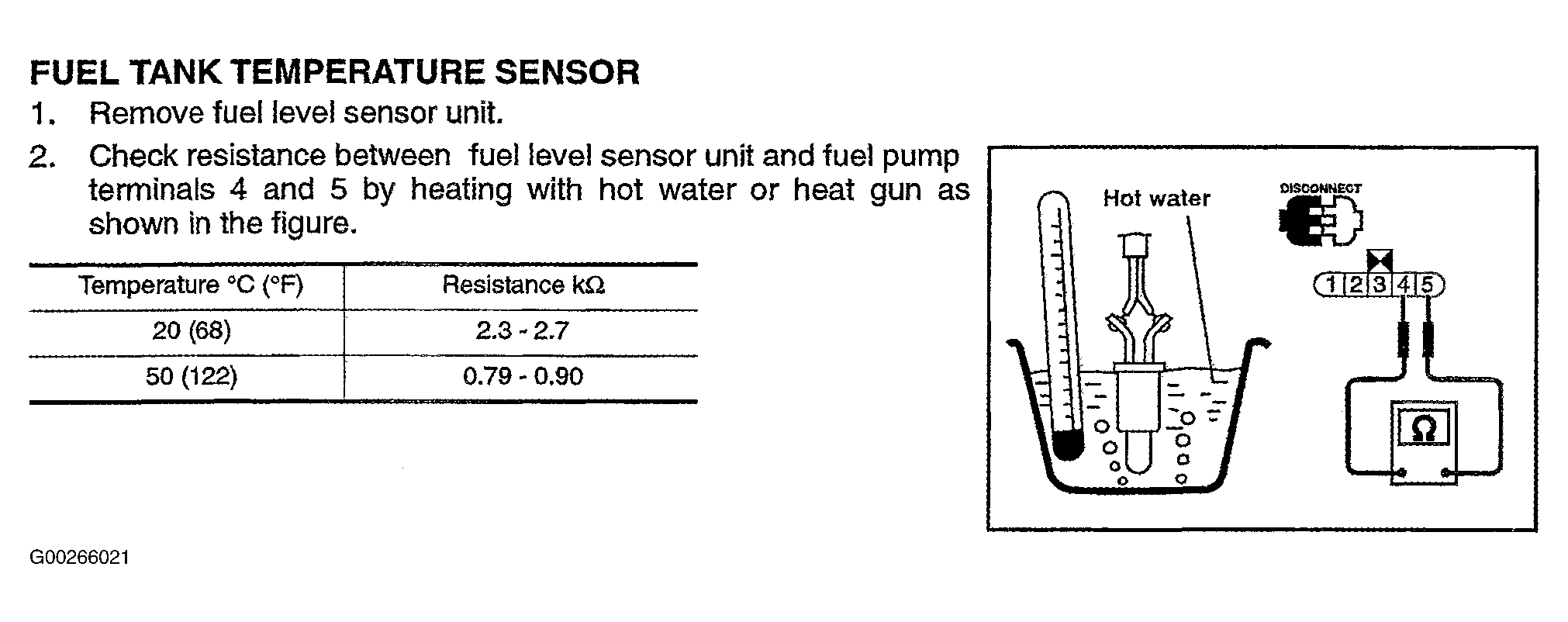

Fig 1: Testing Fuel Tank Temperature Sensor
G00266021Courtesy of NISSAN MOTOR CO., U.S.A.
