DTC P0455: EVAP Control System Gross Leak Detected
›
Diagnostic Procedure
Diagnostic Procedure
For DTC P0455 diagnostic procedure, see
Fig 1
-
Fig 5
.

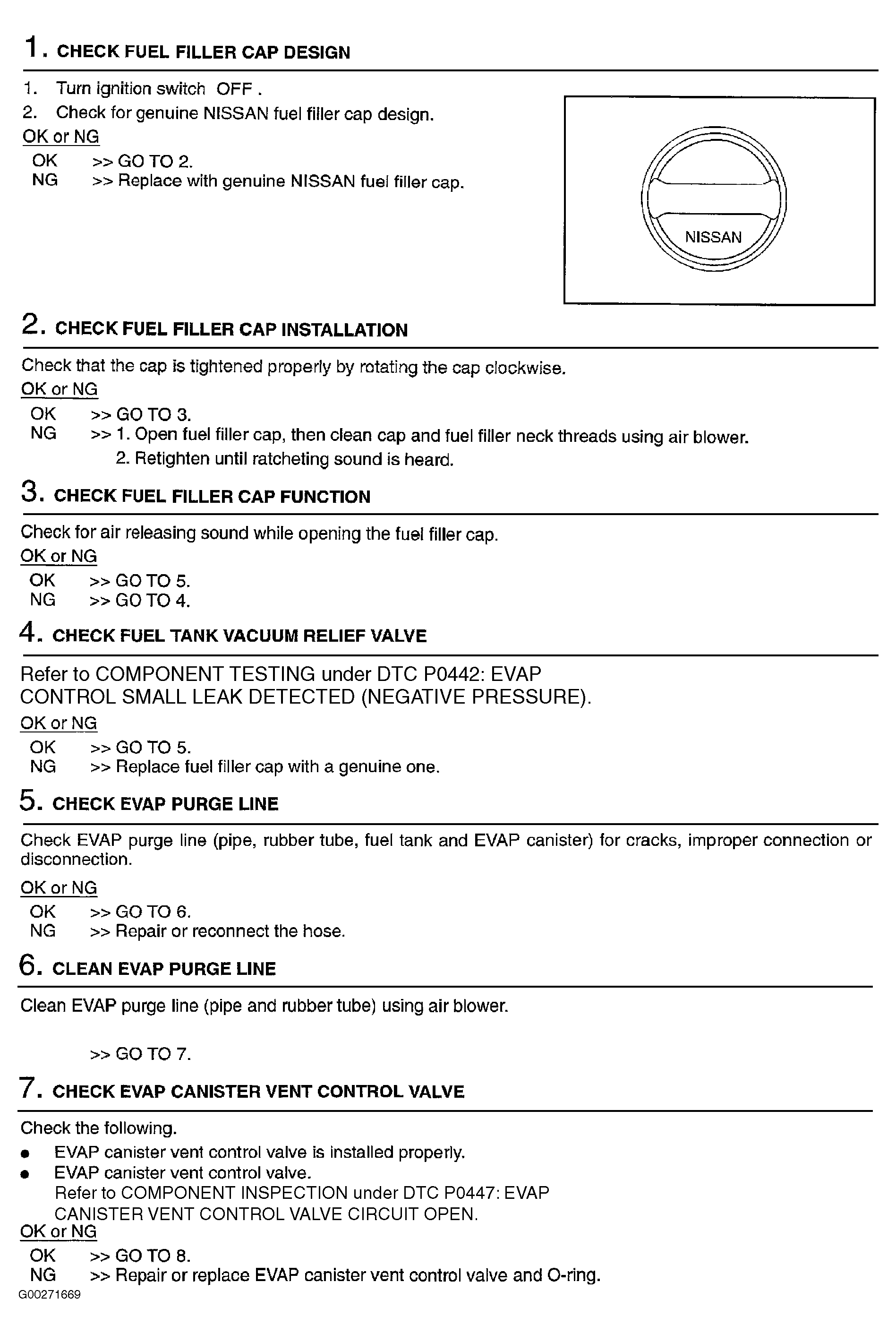

Fig 1: DTC P0455 Diagnostic Procedure (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

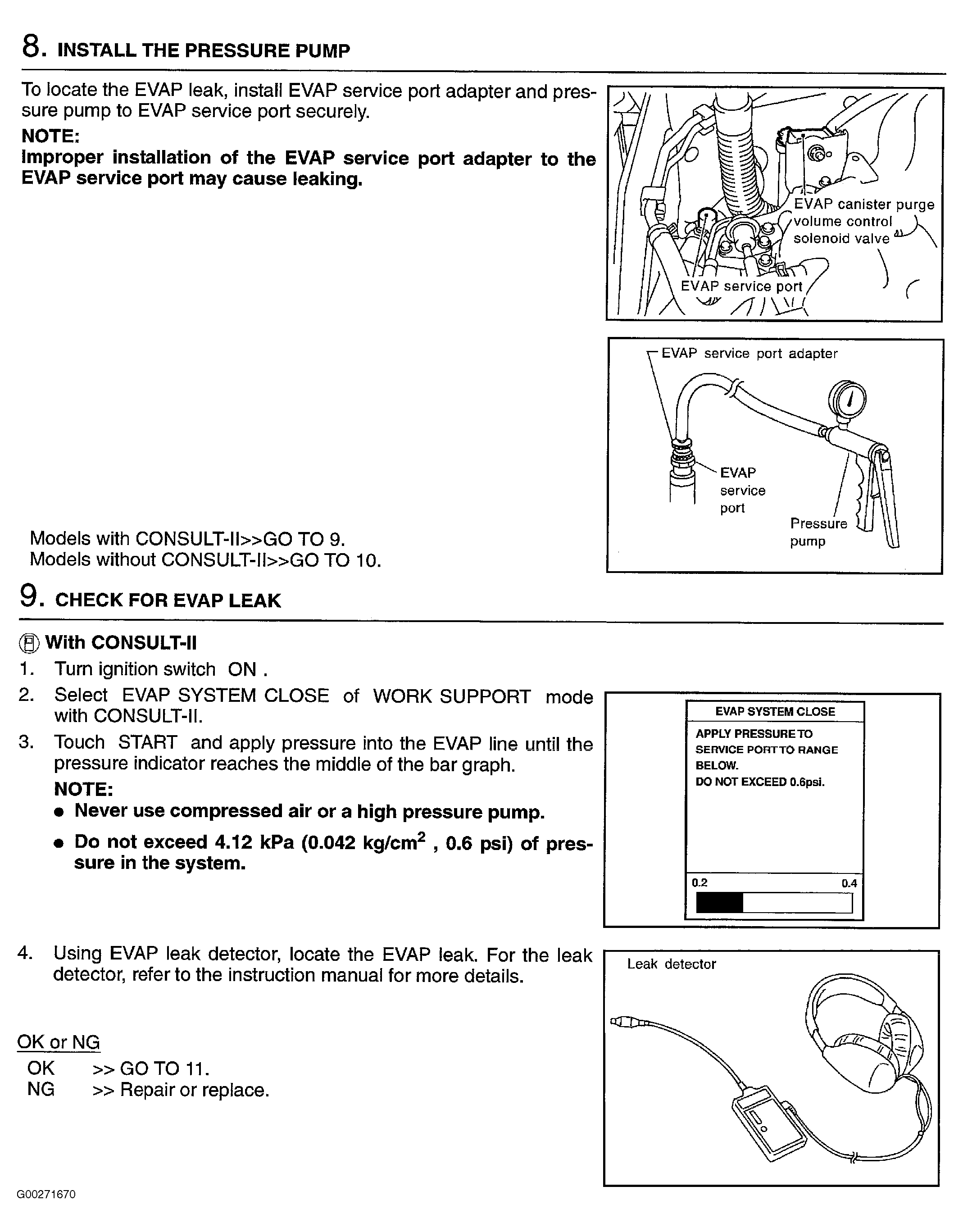

Fig 2: DTC P0455 Diagnostic Procedure (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

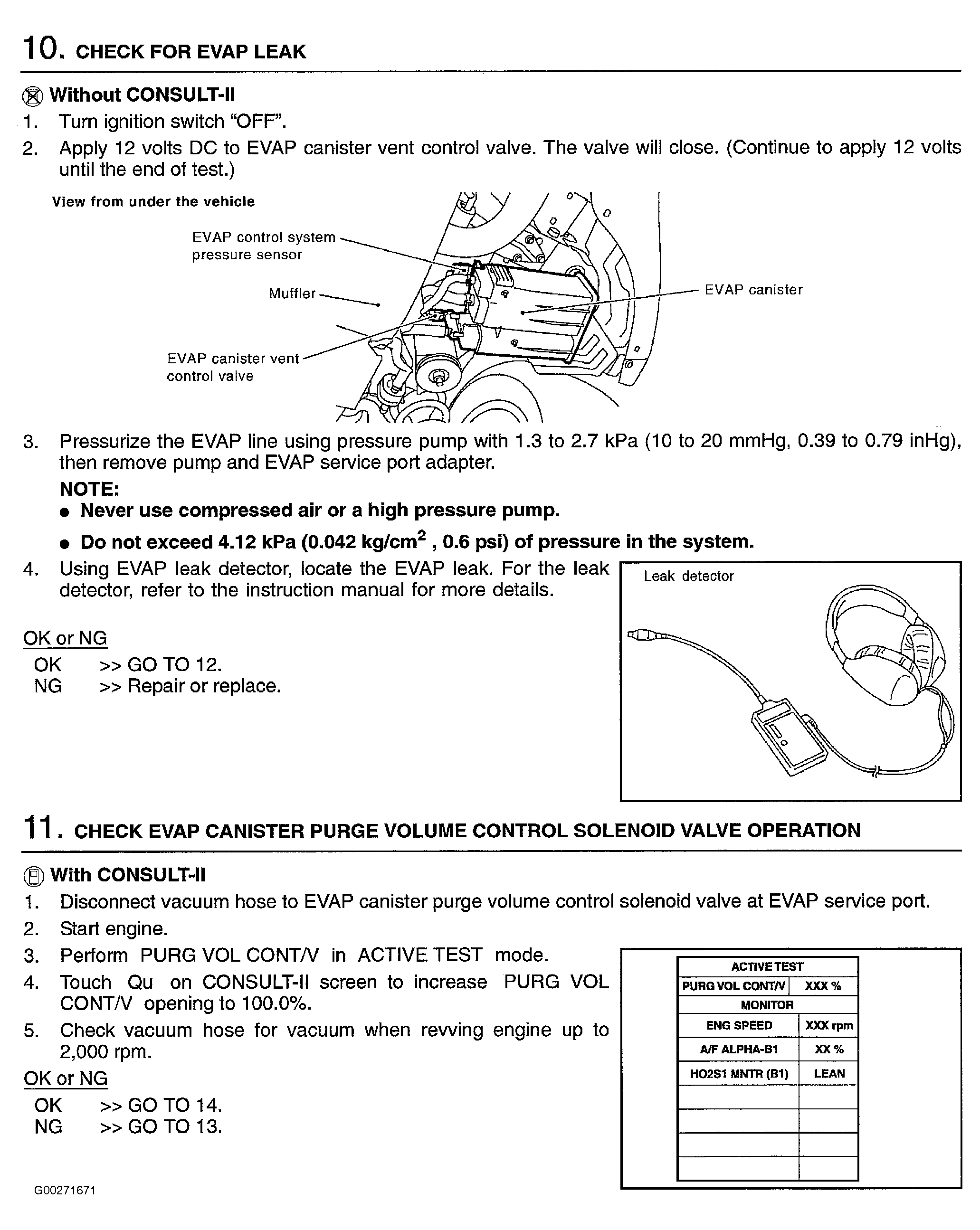

Fig 3: DTC P0455 Diagnostic Procedure (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

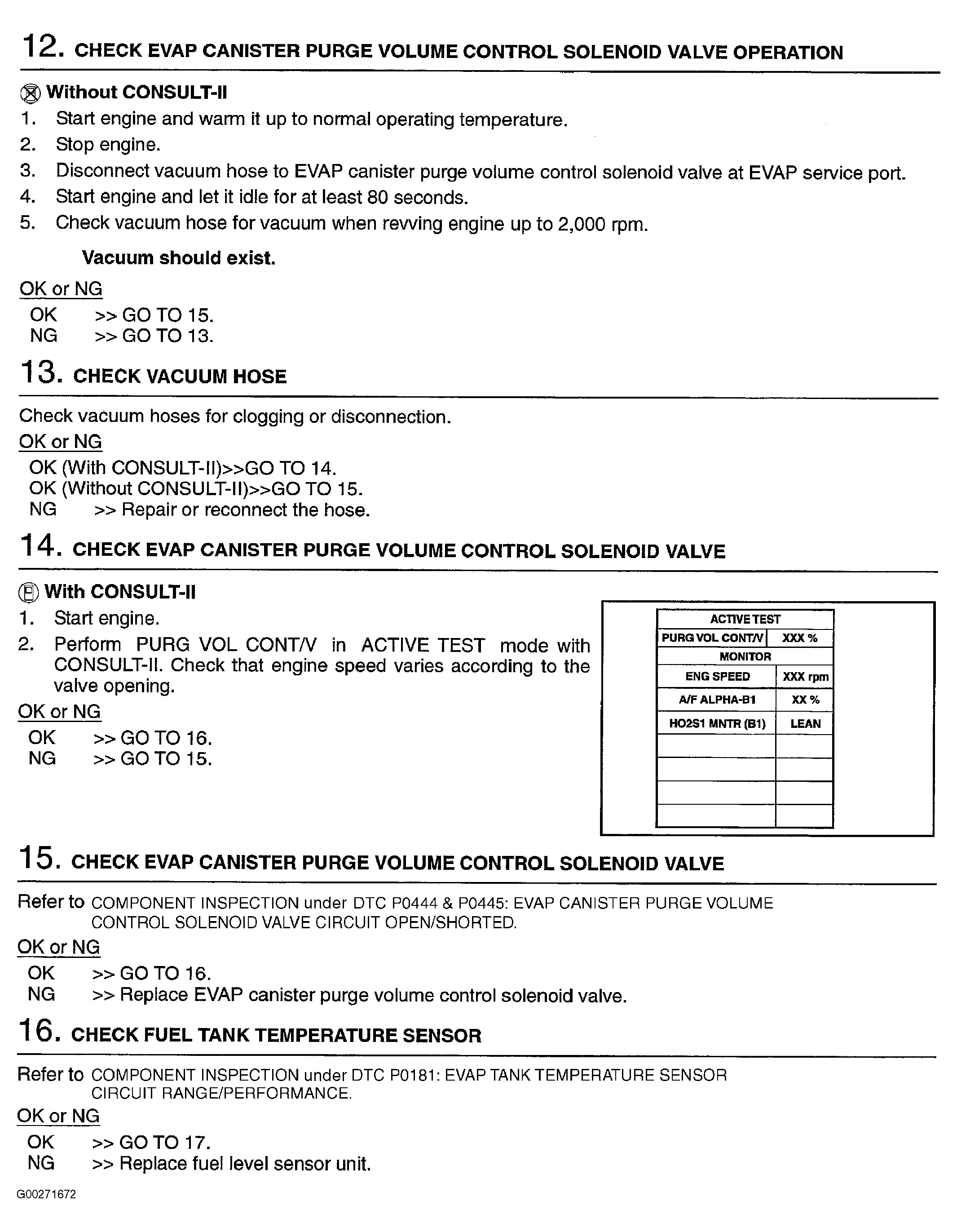

Fig 4: DTC P0455 Diagnostic Procedure (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

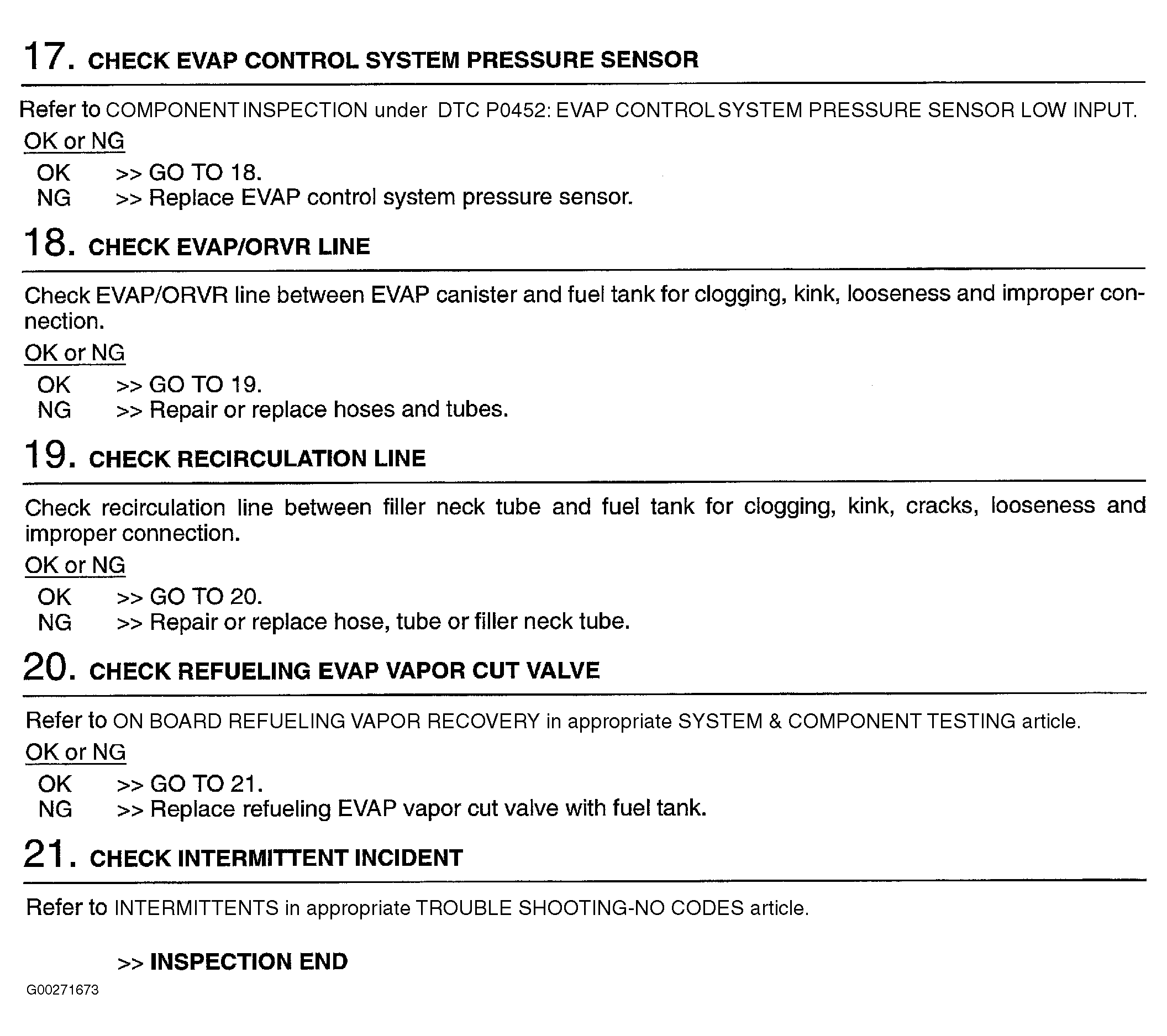

Fig 5: DTC P0455 Diagnostic Procedure (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
