Diagnostic Procedure

For DTC P1572: ASCD brake switch diagnostic procedure, related circuits and connector identification, see Fig 1-Fig 7 .

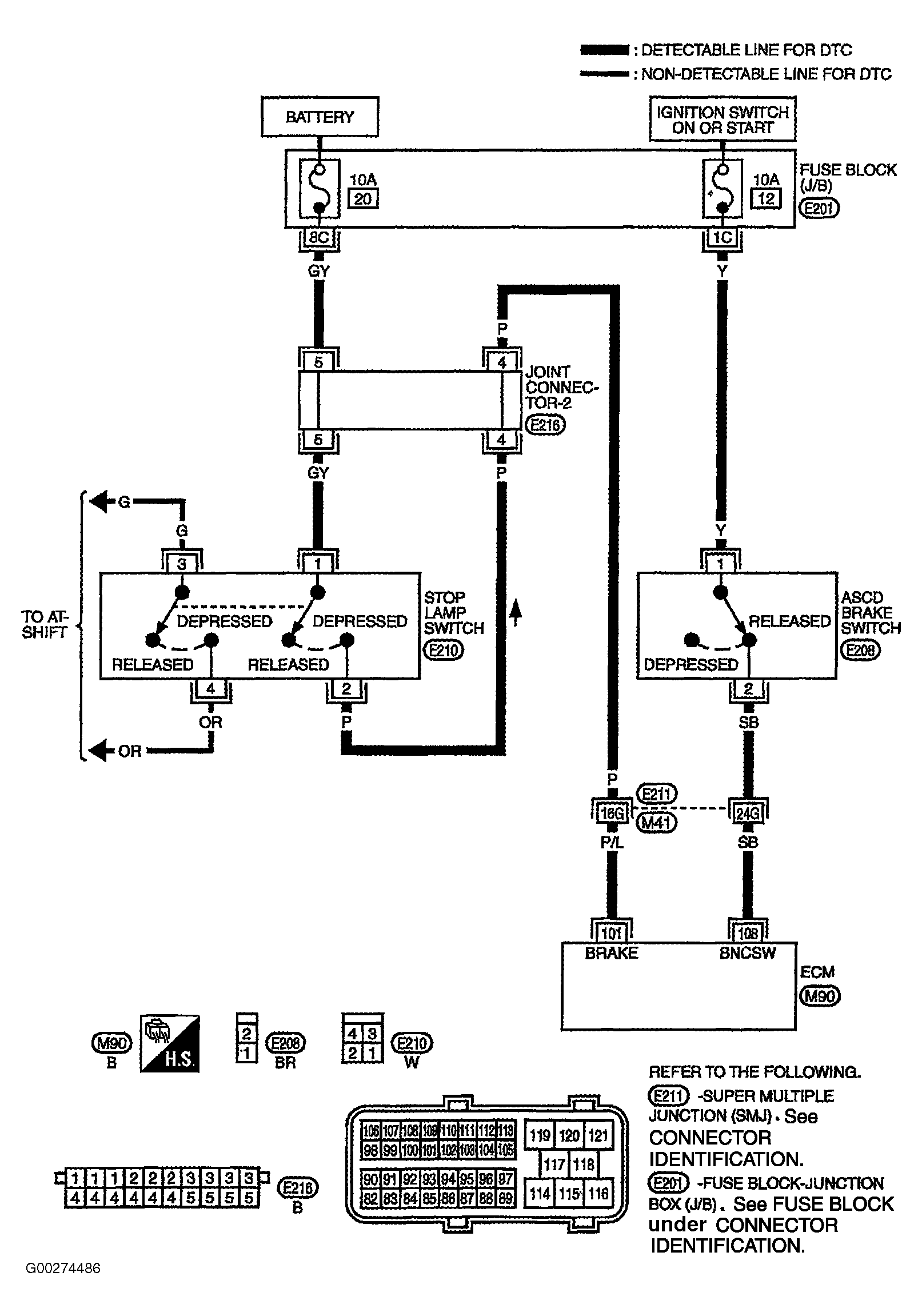

Fig 1: Identifying ASCD Brake Switch Related Circuits & Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

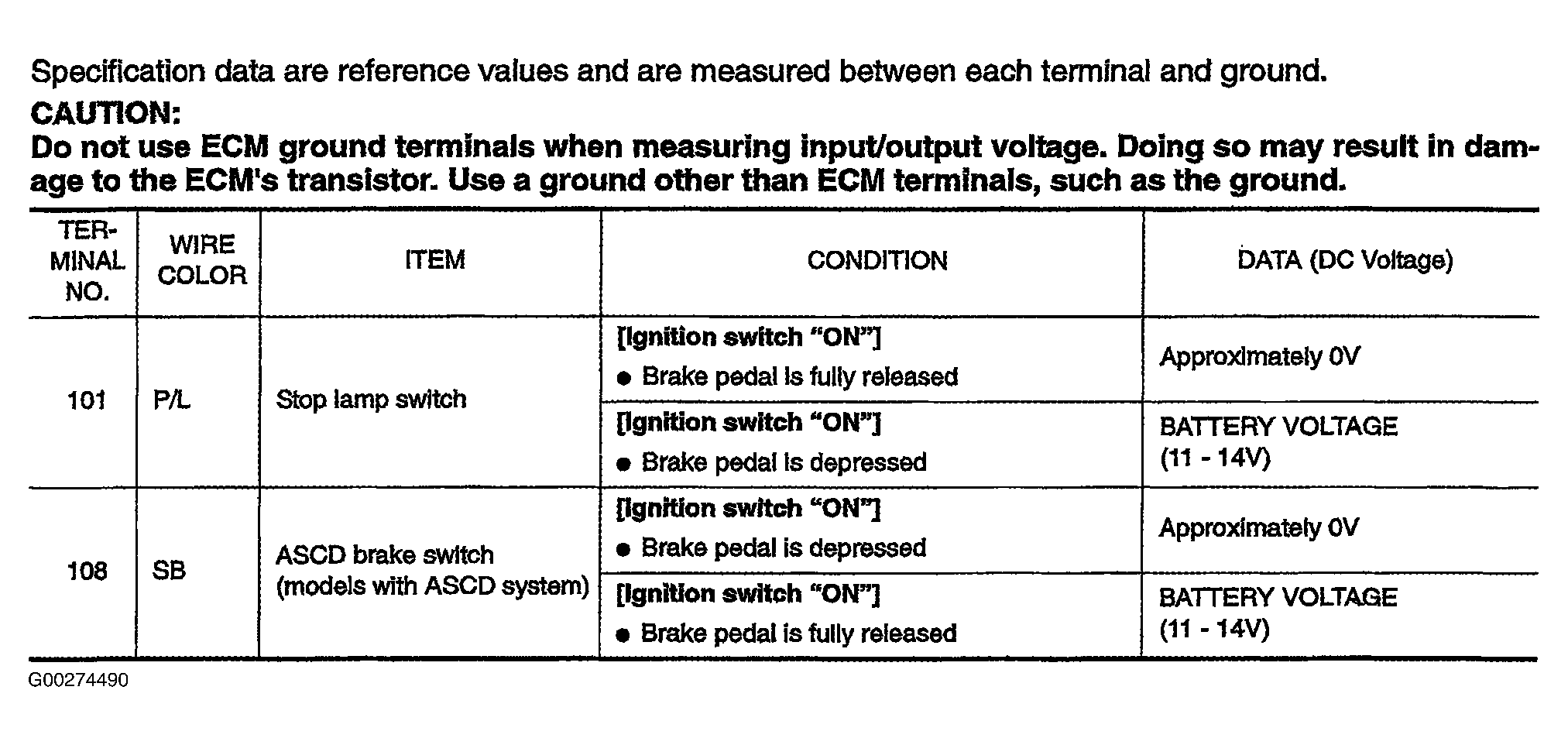

Fig 2: Identifying ASCD Brake Switch & Stop Lamp Switch Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.

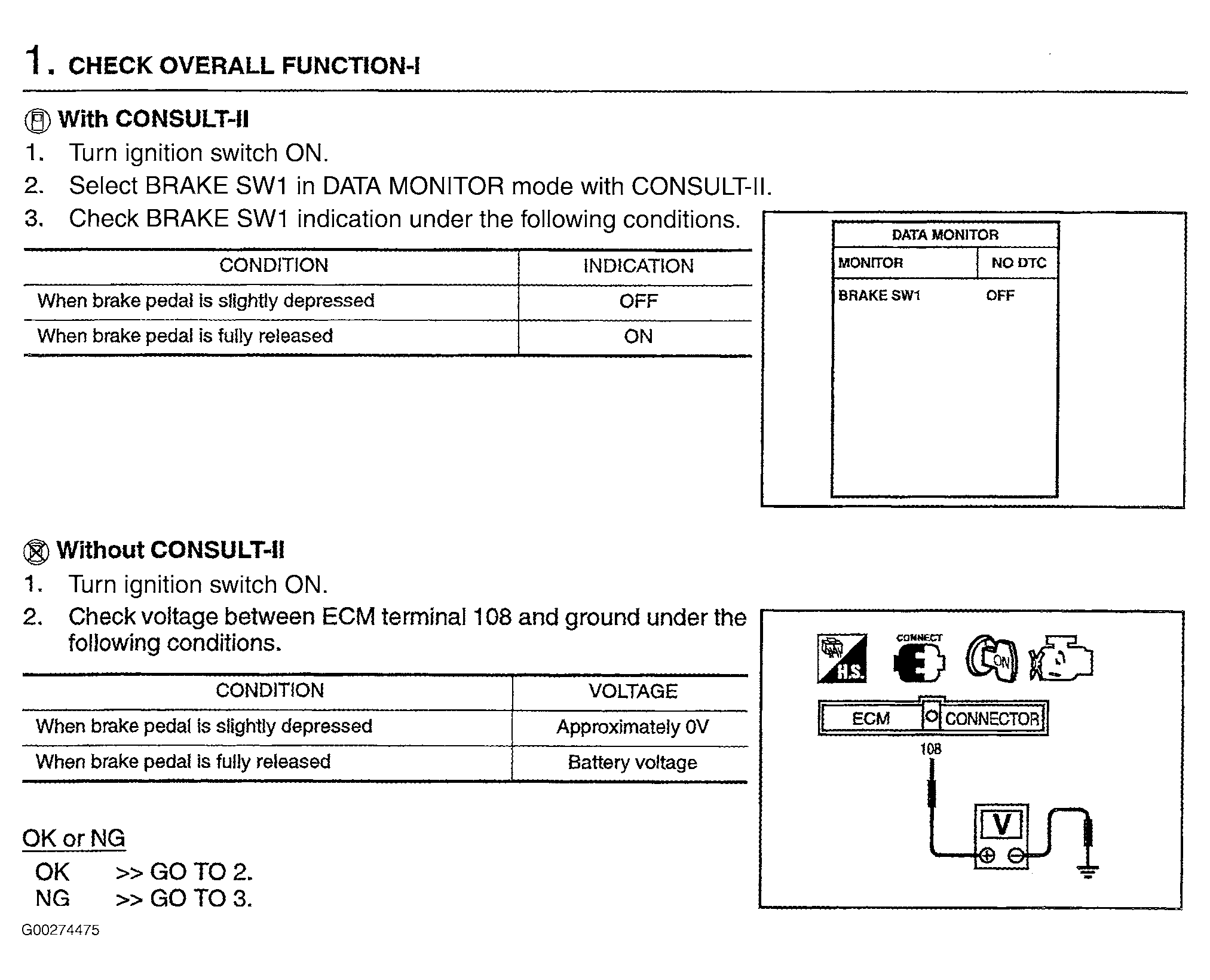

Fig 3: DTC P1572: ASCD Brake Switch Diagnostic Procedure (1 Of 5)

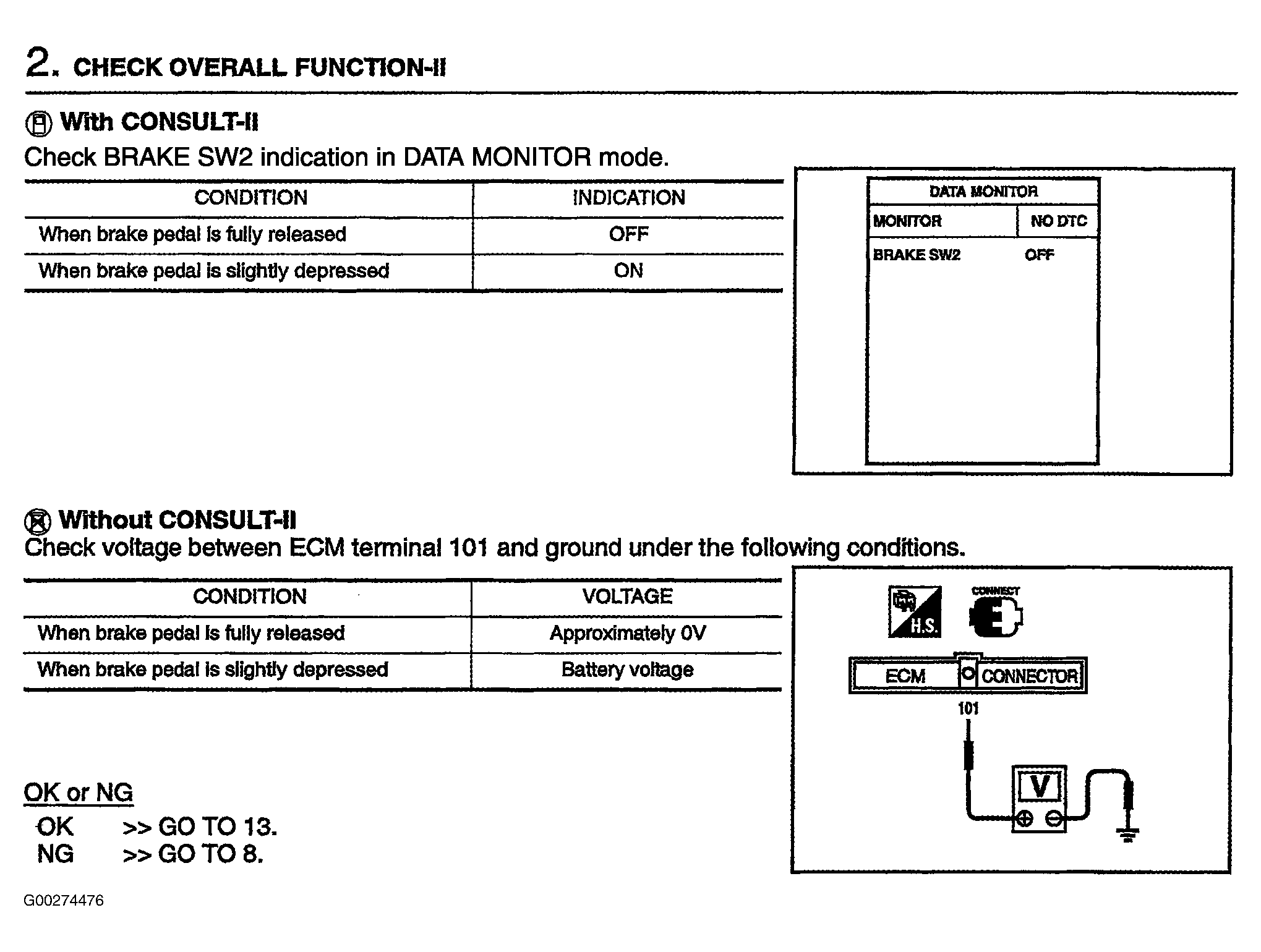

Courtesy of NISSAN MOTOR CO., U.S.A.

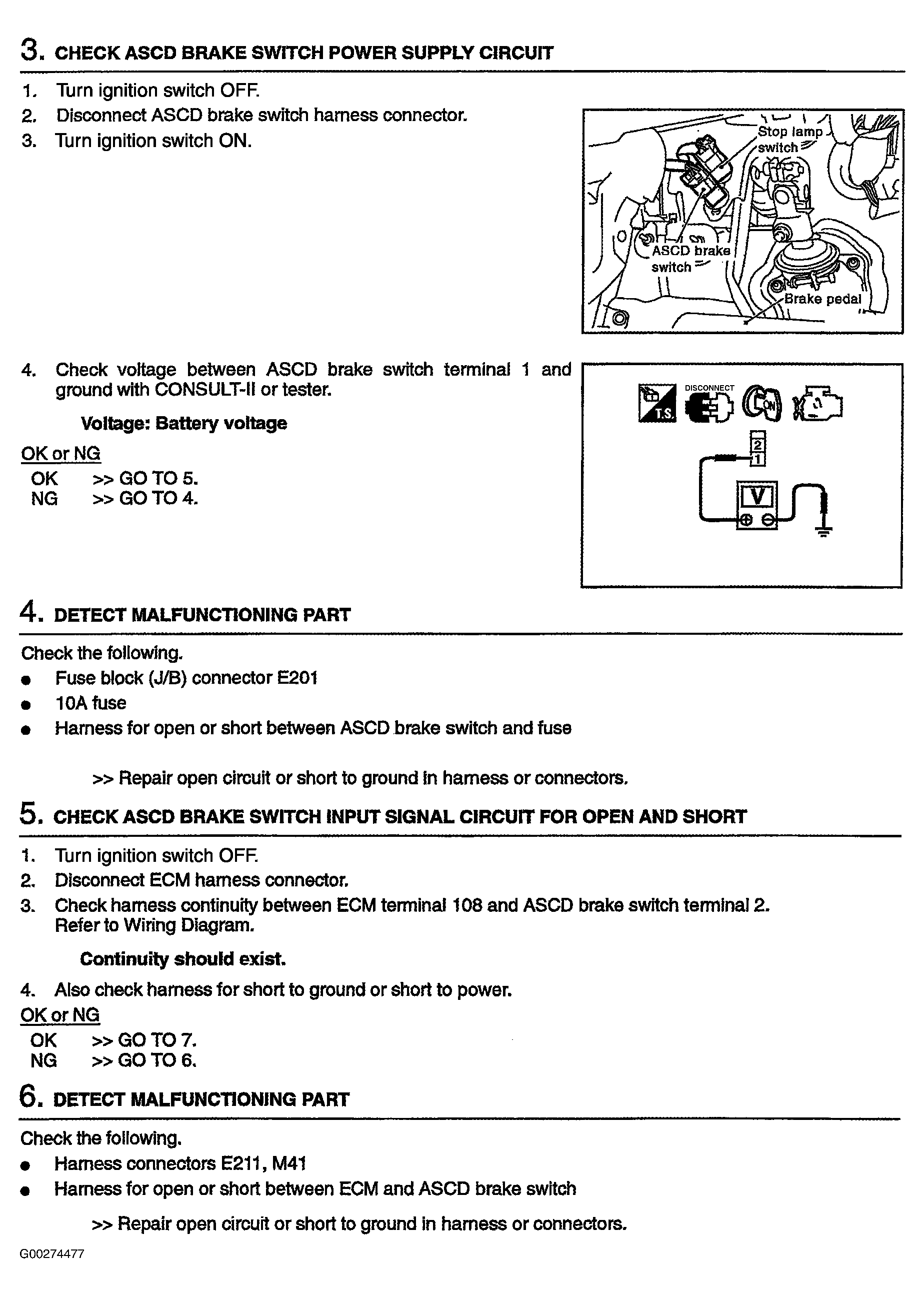

Fig 4: DTC P1572: ASCD Brake Switch Diagnostic Procedure (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: DTC P1572: ASCD Brake Switch Diagnostic Procedure (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

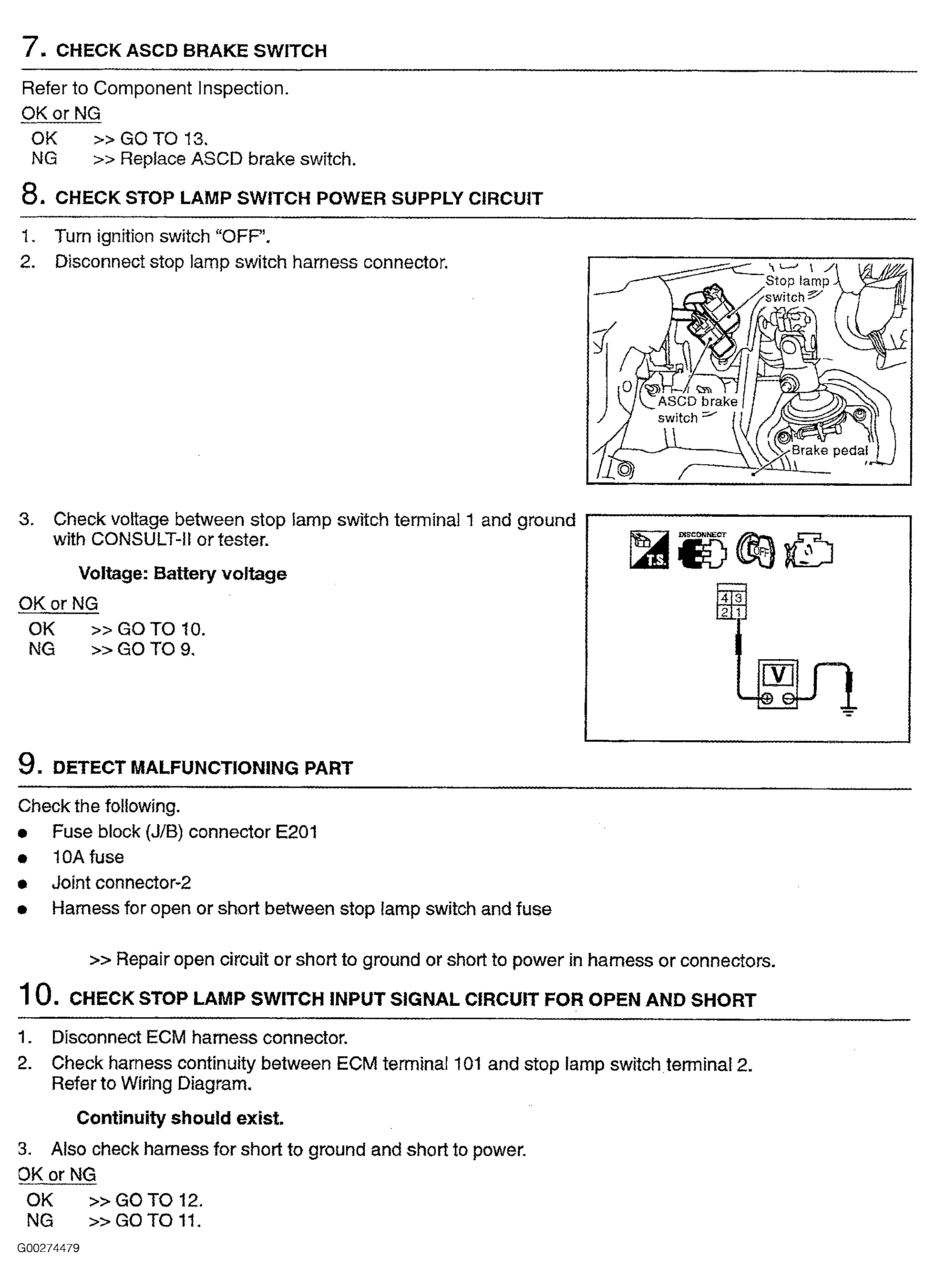

Fig 6: DTC P1572: ASCD Brake Switch Diagnostic Procedure (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

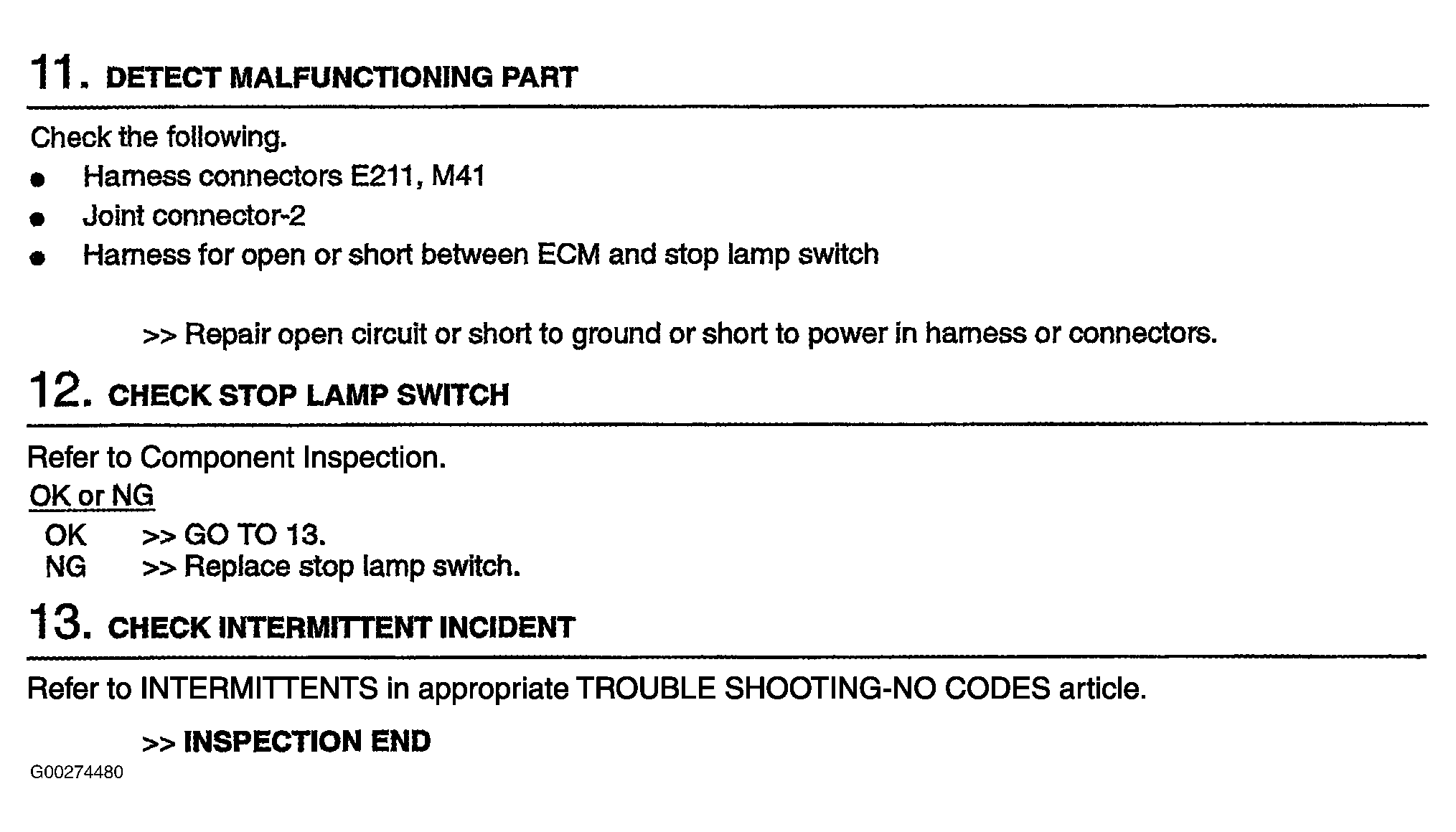

Fig 7: DTC P1572: ASCD Brake Switch Diagnostic Procedure (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
