Component Inspection

For APP sensor testing, see Fig 1.

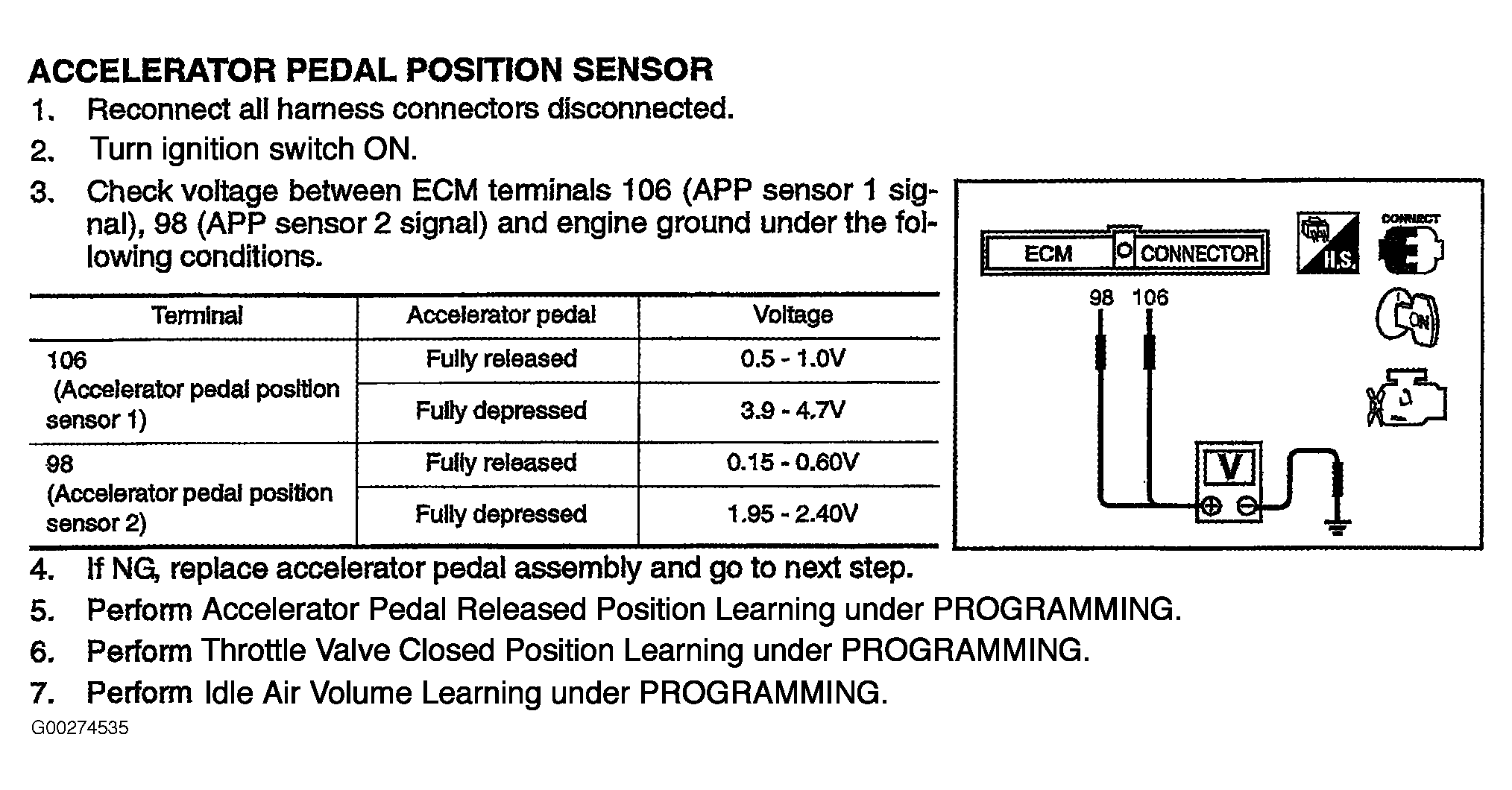

Fig 1: Testing APP Sensor
G00274535Courtesy of NISSAN MOTOR CO., U.S.A.
