Center Console

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

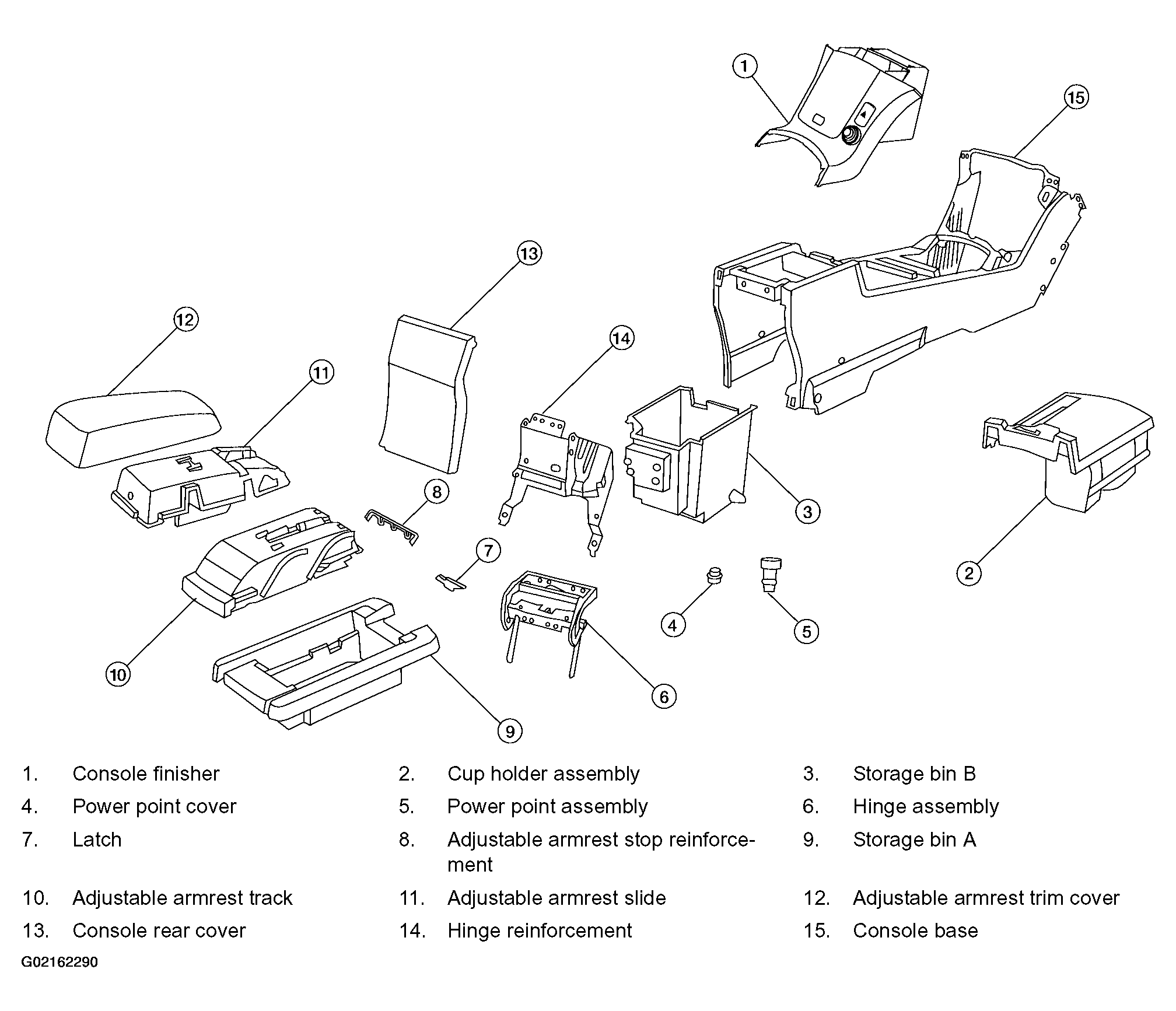

Fig 1: Identifying Center Console Components
G02162290Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove center console assembly. Refer to , "WORK STEPS ".
  2. Remove cup holder.
  3. Remove armrest assembly.
  4. Remove adjustable armrest track.
  5. Separate adjustable armrest slide from adjustable armrest track.
  6. Separate adjustable armrest trim cover from adjustable armrest slide.
  7. Remove storage bin A.
  8. Remove hinge assembly.
  9. Remove hinge reinforcement and storage bin B.
  10. Separate hinge reinforcement from storage bin B.
  11. Remove power point from storage bin B.
  12. Assembly is the reverse order of disassembly.
