Combination Meter

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid A. Refer to , "CLUSTER LID A ".
Remove screws using power tool.
- Pull cluster lid A from opening.
- Disconnect electrical connectors.
- Remove combination meter.

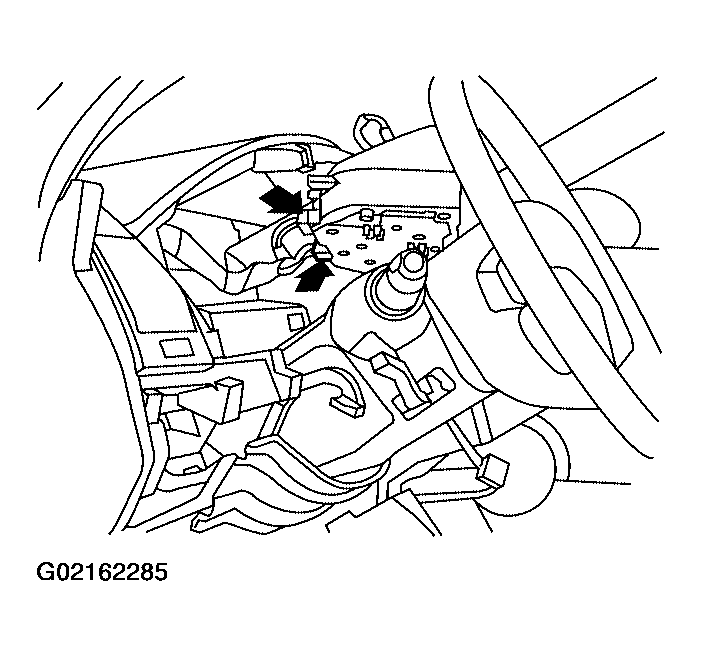

Fig 1: Disconnecting Electrical Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
