AWD System: Wiring Diagram

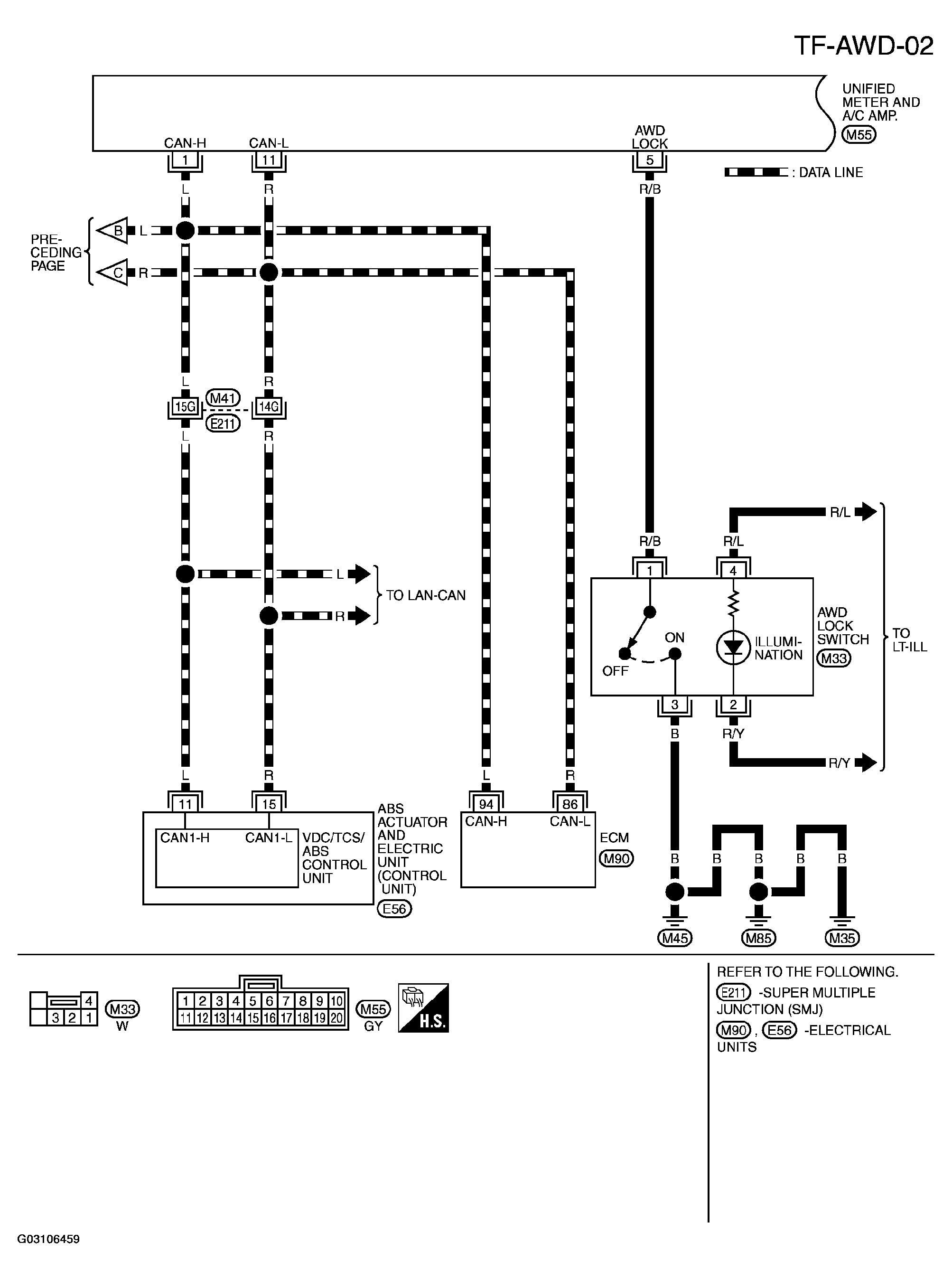

Fig 1: Identifying Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

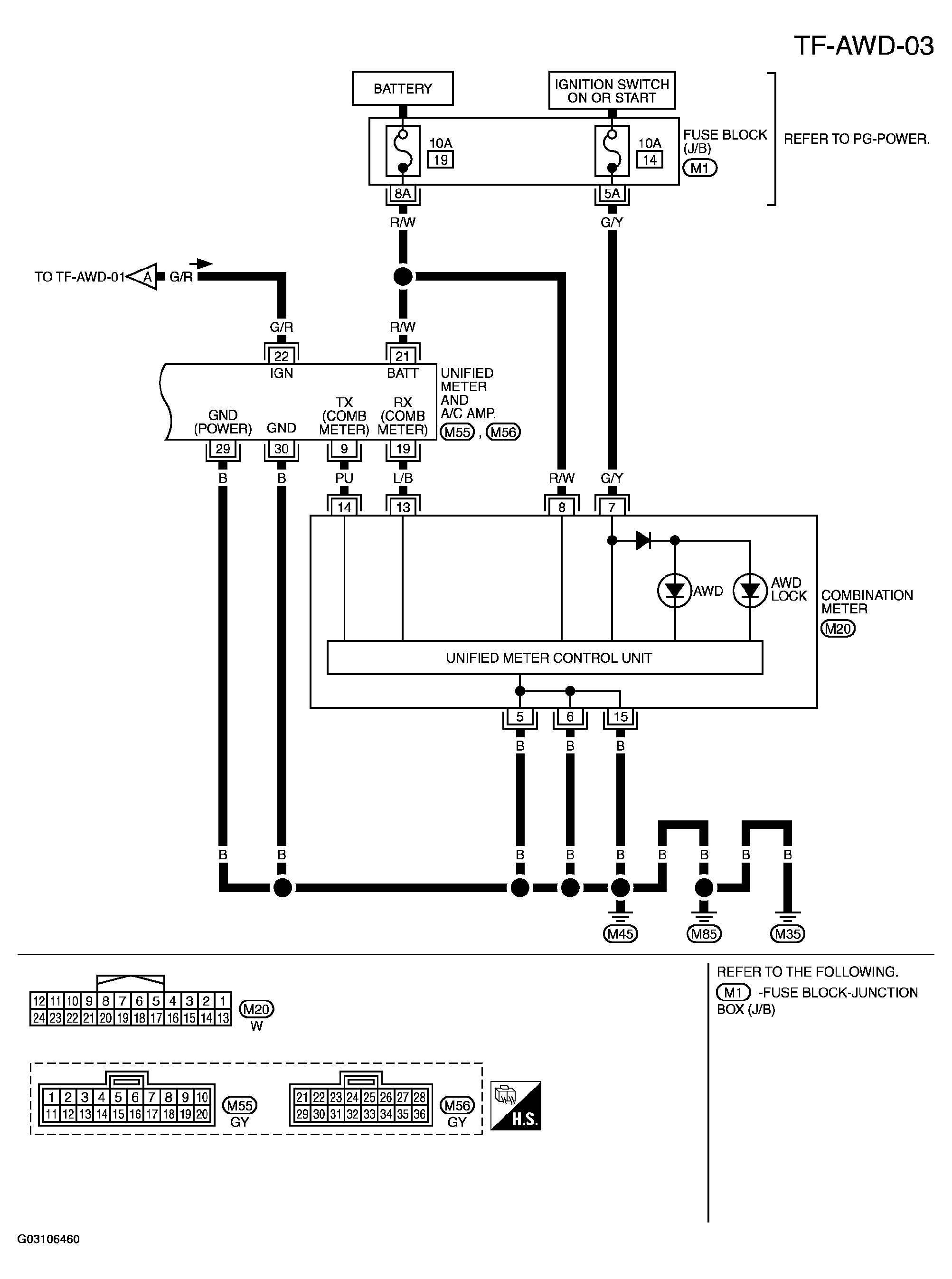

Fig 2: Identifying Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

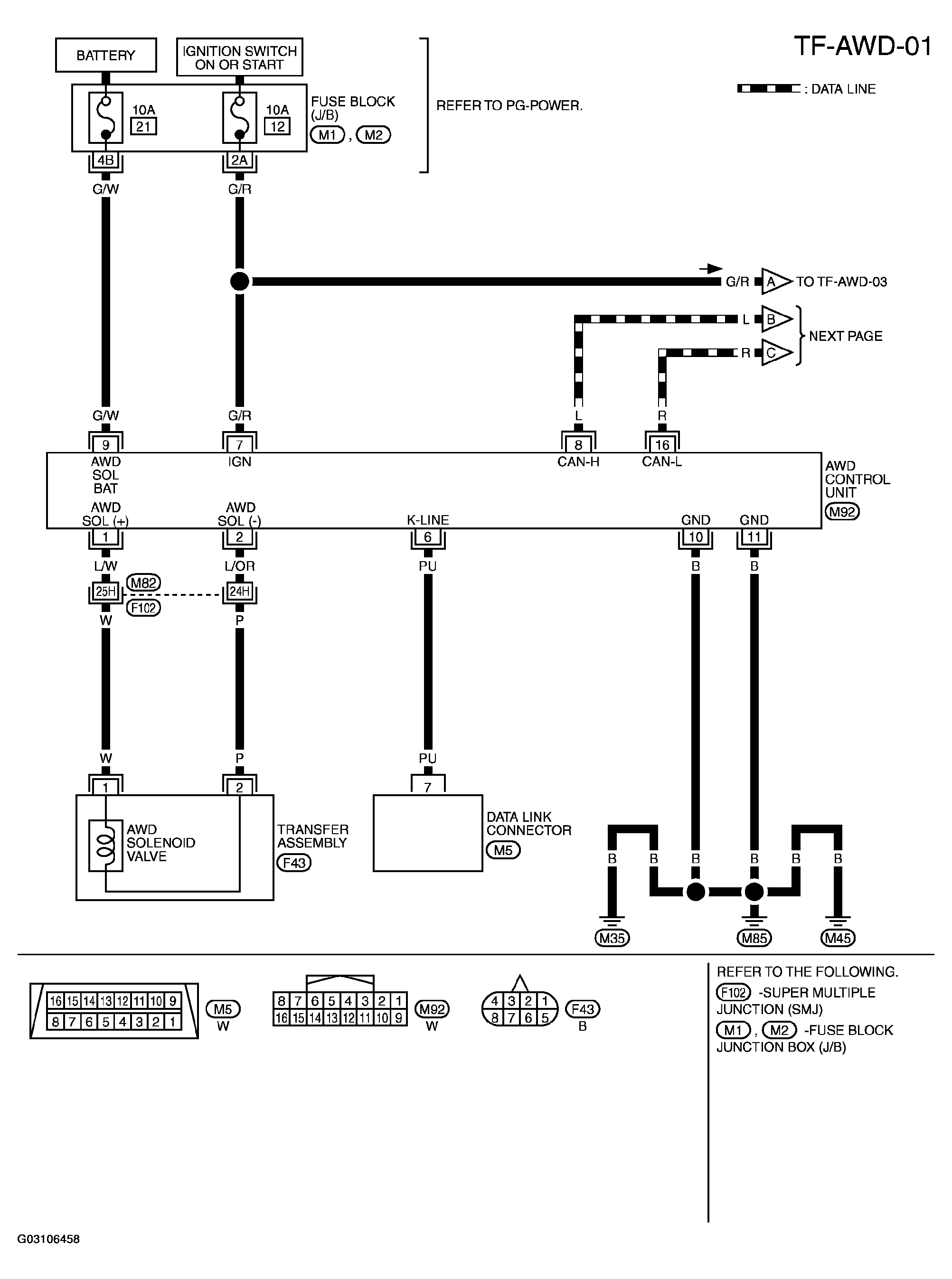

Fig 3: Identifying Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
