Terminal and Reference Value for Power Window Main Switch / With Front Power Window Anti-pinch System

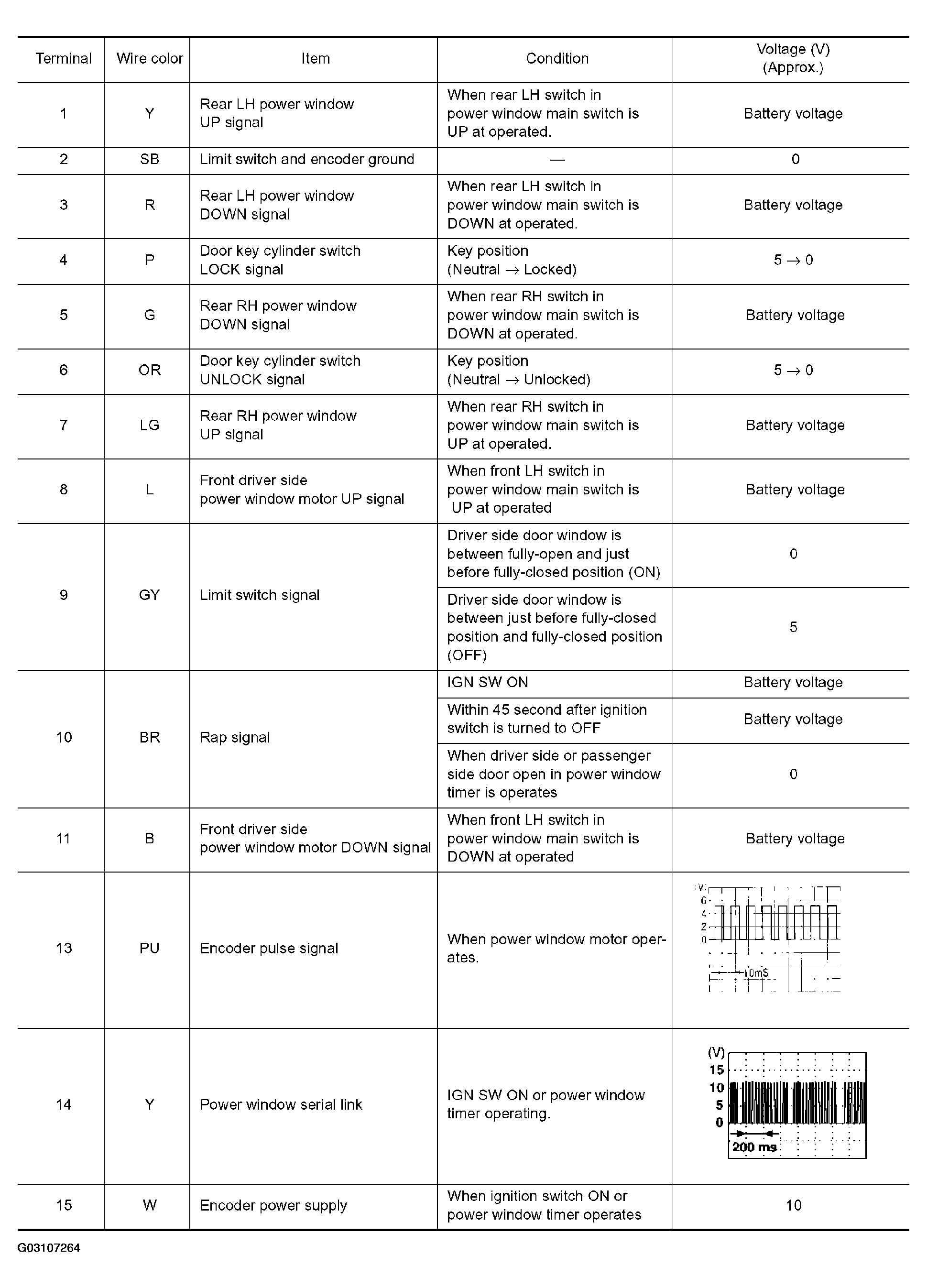

Fig 1: Terminal And Reference Value For Power Window Main Switch/With Front Power Window Anti-Pinch System

Courtesy of NISSAN MOTOR CO., U.S.A.

TERMINAL AND REFERENCE VALUE FOR BCM / WITH FRONT POWER WINDOW ANTI-PINCH SYSTEM

Terminal	Wire color	Item	Condition	Voltage (V)(Approx.)
17	B	Ground	-	0
19	W	Battery power supply	-	Battery voltage
