FixVault
Home
›
Infiniti
›
2003
›
FX35 RWD
›
Repair and Diagnosis
›
Brakes
›
Brakes Control Systems
›
Brake Control System
›
Wheel Sensors
›
Removal And Installation
›
Notes
Removal And Installation: Notes

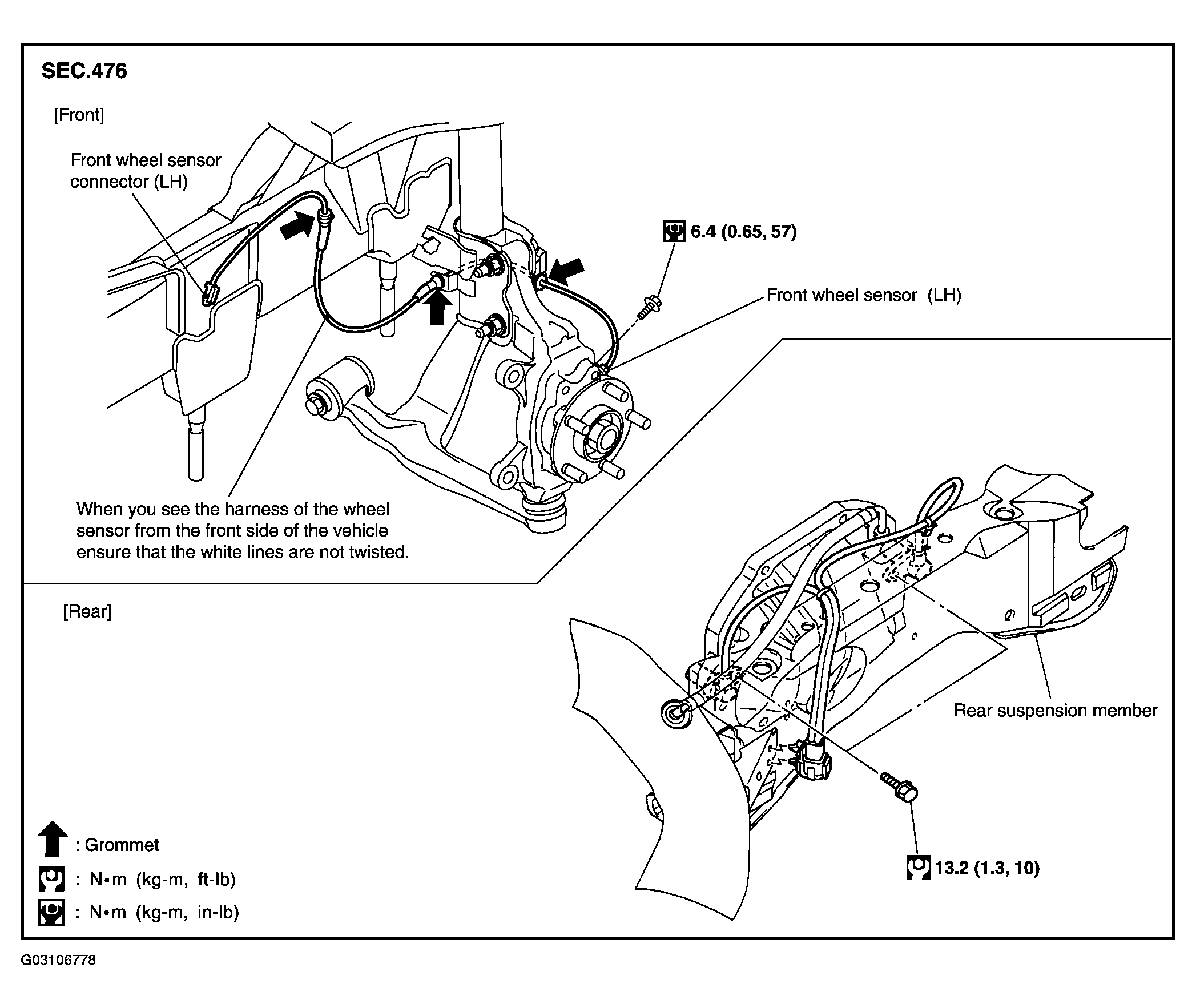

Fig 1: Removal And Installation Wheel Sensors
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
