Cruise Control Systems
›
Intelligent Cruise Control Systems
›
Description
›
Can Communication
›
CAN Communication For AWD Models
›
Input/Output Chart
Input/Output Chart

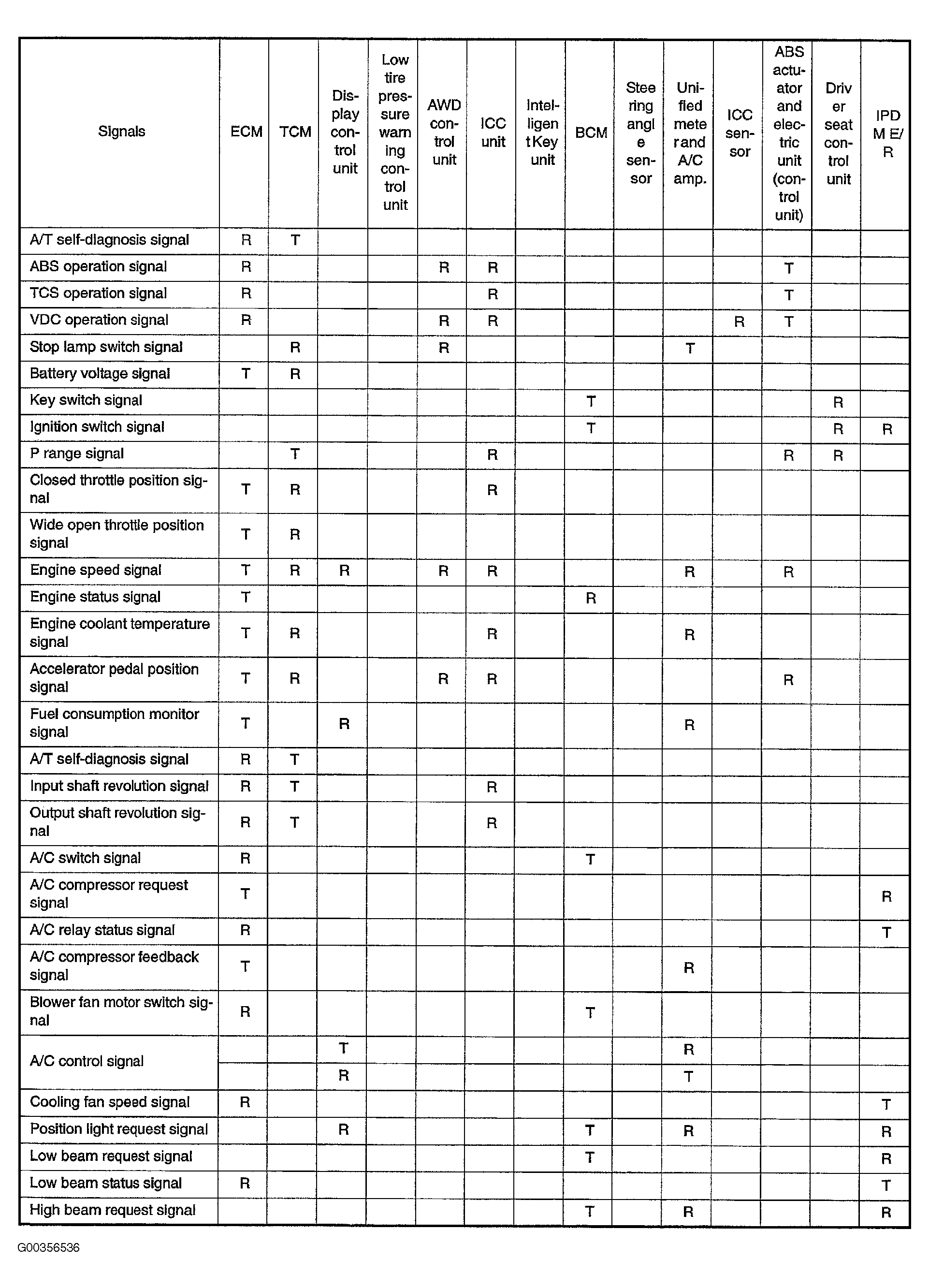

Fig 1: Identifying Input/Output Signal Chart (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

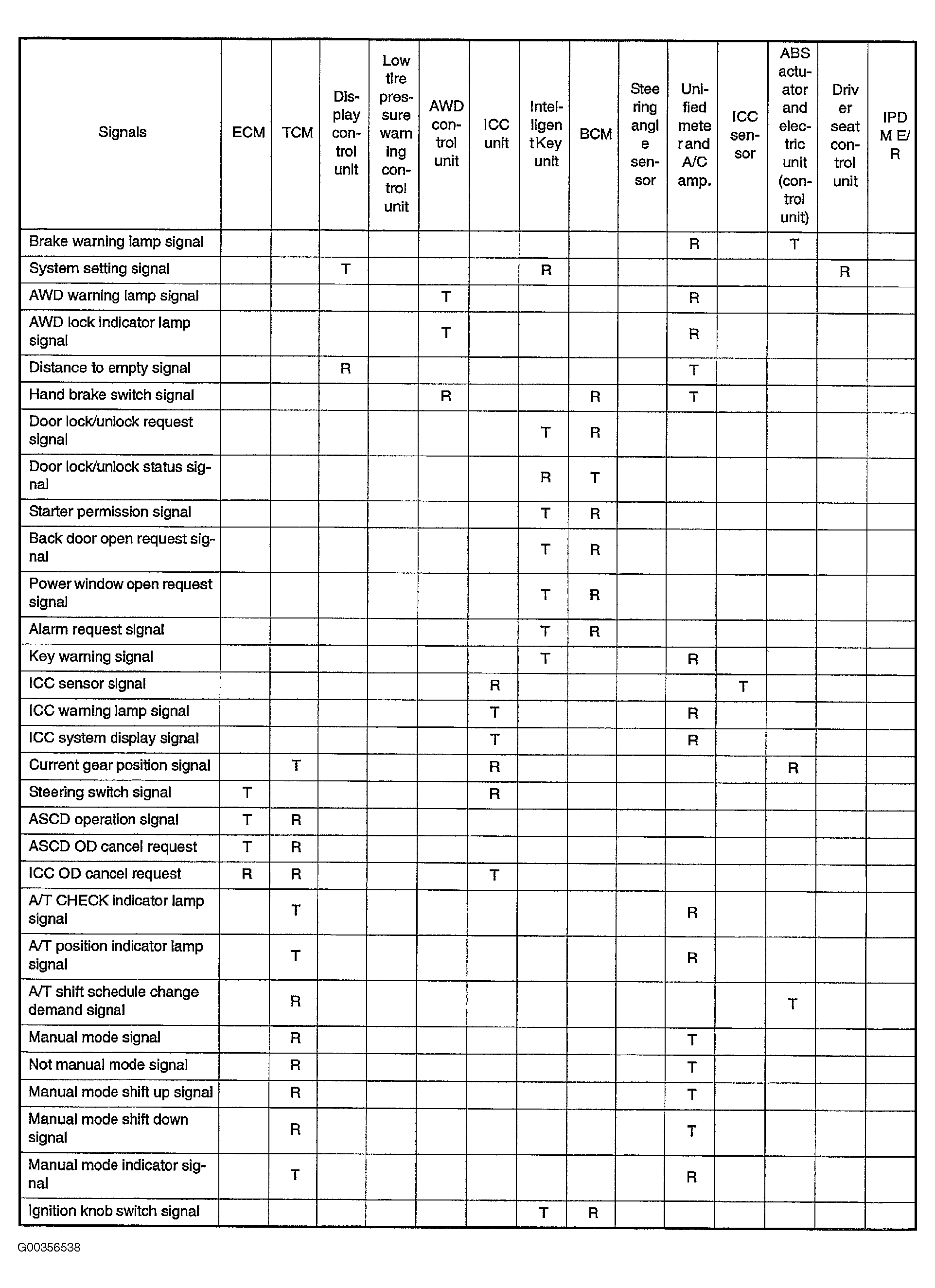

Fig 2: Identifying Input/Output Signal Chart (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

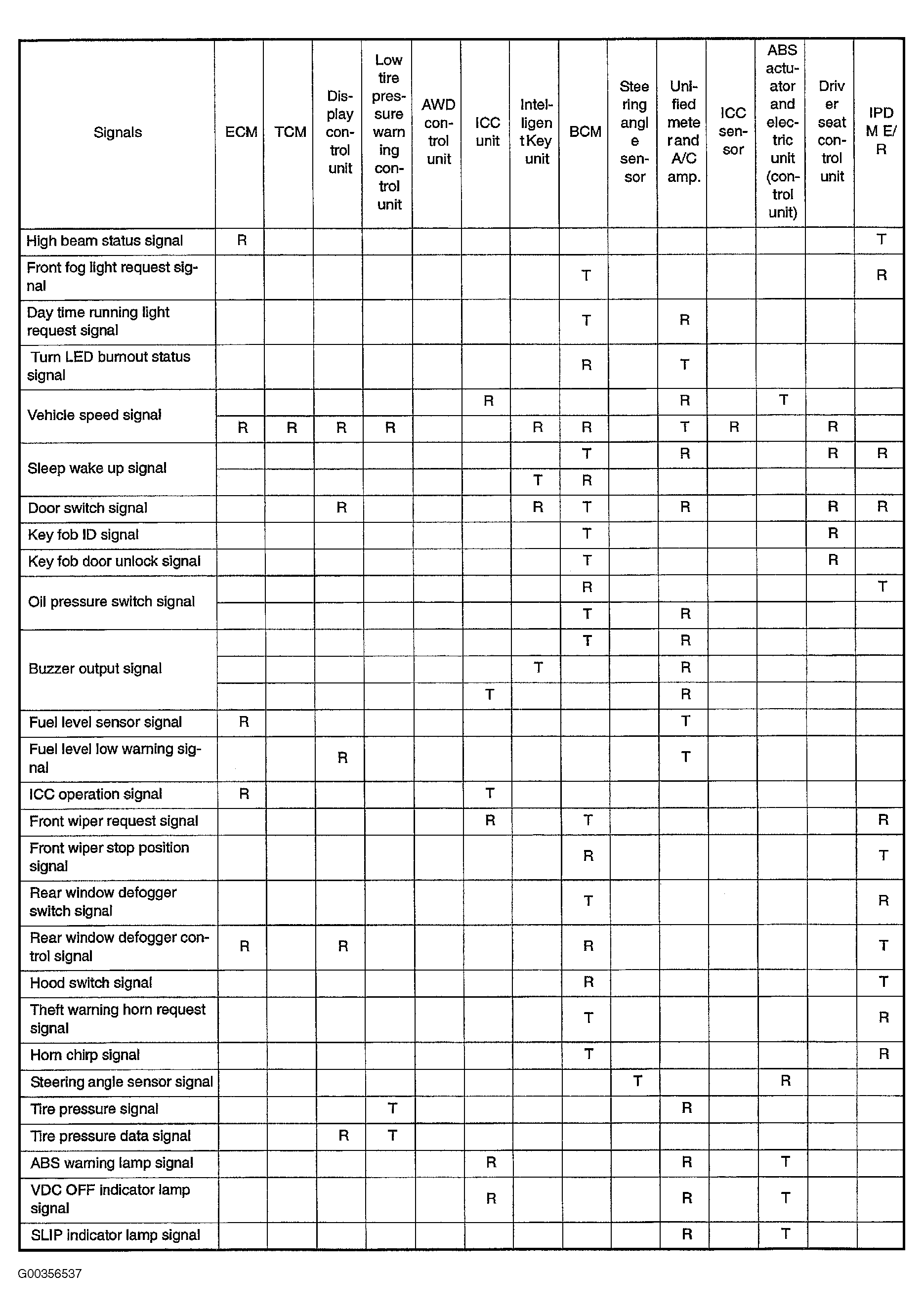

Fig 3: Identifying Input/Output Signal Chart (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
